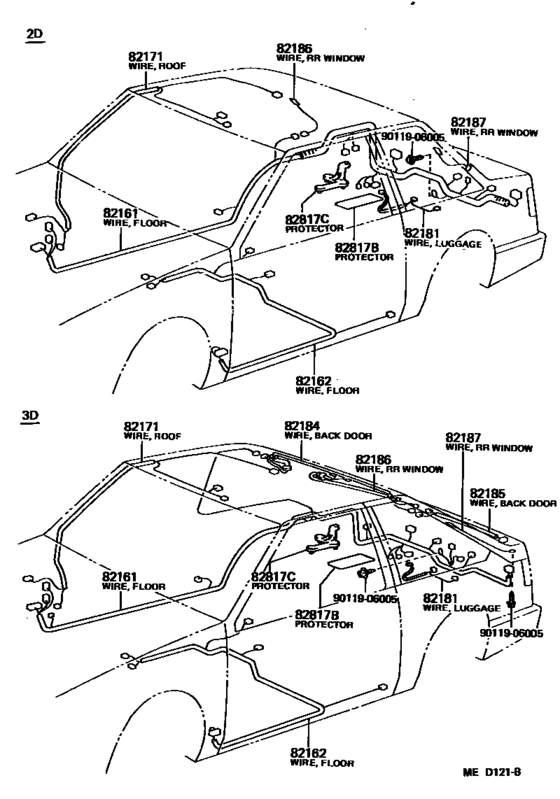

Wiring & Clamp ([05.1983 - ] (8305- )) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- General
- Frame
- AE86
- grade
- SR
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 08.1983
- To
- 02.1985
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82161
|
82161
82161-12240
Wire, Floor
[05.1983 - 05.1985] AE86..3D..LHD..SR |
82161-12240 |
— | ||
|
82162
|
82162
82162-12290
Wire, Floor, No.2
[05.1983 - 05.1985] AE86..LHD..5F |
82162-12290 |
— | ||
|
82171
|
82171
82171-12120 Wire, Roof, No.1ROOF, NO.1 [05.1983 - 07.1987] AE86..LHD |
82171-12120 |
US $18.93 |
||
|
82171
|
82171
82171-12130 Wire, Roof, No.1ROOF, NO.1 [05.1983 - 07.1987] AE86..LHD W/SUN ROOF |
82171-12130 |
US $43.24 |
||
|
82181
|
82181
82181-12070
Wire, Luggage Room, No.1
[05.1983 - 05.1985] AE86..ARL,EUR,GEN |
82181-12070 |
— | ||
|
82184
|
82184
82184-12050
Wire, Back Door, No.1
[05.1983 - 05.1985] AE86..3D..(EUR,GEN,ME) |
82184-12050 |
— | ||
|
82184
|
82184
82184-12060
Wire, Back Door, No.1
[05.1983 - 05.1985] AE86..3D W/RR WIPER |
82184-12060 |
— | ||
|
82185
|
82185
82185-12050
Wire, Back Door, No.2
[05.1983 - 05.1985] AE86..3D |
82185-12050 |
— | ||
|
82186
|
82186
82186-12030
Wire, Rear Window, No.1
[05.1983 - 05.1985] AE86..3D |
82186-12030 |
— | ||
|
82187
|
82187
82187-12040
Wire, Rear Window, No.2
[05.1983 - 05.1985] AE86..3D |
82187-12040 |
— | ||
|
82817B
|
82817B
82817-16100 Protector, Wiring Harness, No.1[05.1983 - 07.1987] AE86 |
82817-16100 |
US $5.53 |
||
|
82817C
|
82817C
82817-12600 Protector, Wiring Harness, No.4WIRING HARNESS, NO.4 [05.1983 - 07.1987] AE86 |
82817-12600 |
US $10.05 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
