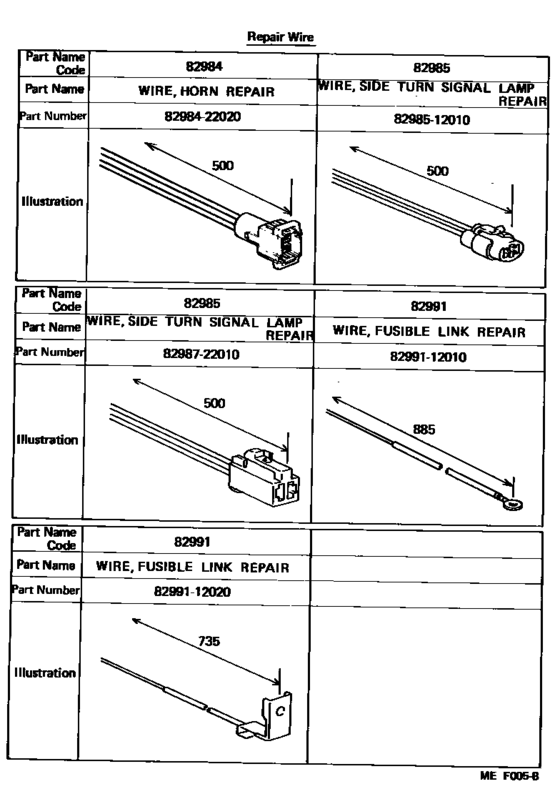

Wiring & Clamp ([05.1983 - ] (8305- )) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- General
- Frame
- AE86
- grade
- SR
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 08.1983
- To
- 02.1985
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82984
|
82984
82984-22020 Wire, Horn RepairHORN REPAIR [08.1983 - 04.1987] AE86..EUR |
82984-22020 |
US $69.45 |
||
|
82985
|
82985
82987-22010 Wire, Clearance Lamp Repair[08.1983 - 04.1987] AE86..EUR |
82987-22010 |
US $81.54 |
||
|
82991
|
82991
82991-12020 Wire, Fusible Link RepairFUSIBLE LINK REPAIR [05.1983 - 04.1987] AE86..SR |
82991-12020 |
US $37.27 |
||
|
8298422020
|
8298422020
82984-22020 Wire, Horn RepairHORN REPAIR |
82984-22020 |
US $69.45 |
||
|
8298512010
|
8298512010
82985-12010 Wire, Clearance Lamp Repair |
82985-12010 |
US $3.79 |
||
|
8298722010
|
8298722010
82987-22010 Wire, Clearance Lamp Repair |
82987-22010 |
US $81.54 |
||
|
8299112010
|
8299112010
82991-12010 Wire, Fusible Link RepairFUSIBLE LINK REPAIR |
82991-12010 |
US $7.13 |
||
|
8299112020
|
8299112020
82991-12020 Wire, Fusible Link RepairFUSIBLE LINK REPAIR |
82991-12020 |
US $37.27 |
