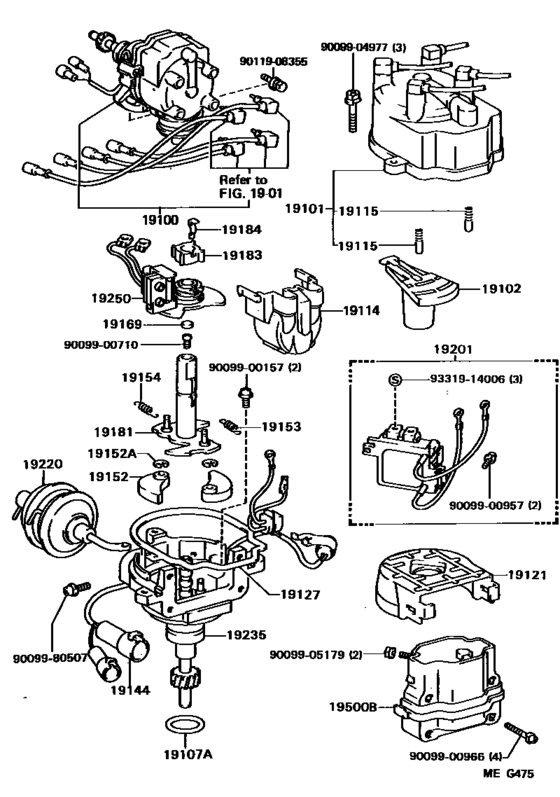

Distributor ([08.1985 - ] (8508- )4AC..CND) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE86
- grade
- SR5
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 3D
- Vehicle Model
- Corolla CP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19030-16070
Distributor Assy
[08.1983 - 08.1985] 4AC..AE86..CND |
19030-16070 |
— | ||
|
19100
|
19100
19030-16110 Distributor Assy[08.1985 - 07.1987] 4AC..AE86..CND |
19030-16110 |
US $1,659.84 |
||
|
19101
|
19101
19101-15090 Cap Sub-Assy, Distributor[08.1983 - 08.1985] 4AC..AE86 |
19101-15090 |
US $145.60 |
||
|
19101
|
19101
19101-16100 Cap Sub-Assy, DistributorDISTRIBUTOR [08.1985 - 07.1987] 4AC..AE86..CND |
19101-16100 |
US $141.23 |
||
|
19102
|
19102
19102-11010 Rotor Sub-Assy, Distributor[08.1985 - 07.1987] 4AC..AE86..CND |
19102-11010 |
from US $11.20 |
||
|
19102
|
19102
19102-63010
Rotor Sub-Assy, Distributor
[08.1983 - 08.1985] 4AC..AE86 |
19102-63010 |
— | ||
| replacement | |||||
|
19102
|
19102
19102-73021 Rotor Sub-Assy, Distributor[08.1983 - 08.1985] 4AC..AE86 |
19102-73021 |
US $17.33 |
||
|
19107A
|
19107A
96710-04030
Ring, O, Distributor Housing
[08.1983 - 09.1984] 4A#..AE86 |
96710-04030 |
— | ||
| replacement | |||||
|
19107A
|
19107A
96711-35030 Ring, O, Distributor Housing[08.1983 - 09.1984] 4A#..AE86 |
96711-35030 |
from US $4.48 |
||
|
19107A
|
19107A
96711-35030 Ring, O, Distributor Housing[09.1984 - 07.1987] 4A#..AE86 |
96711-35030 |
from US $4.48 |
||
|
19114
|
19114
19114-15020
Cover, Water Proof(For Distributor)
[08.1983 - 08.1985] 4AC..AE86..CND |
19114-15020 |
— | ||
|
19114
|
19114
19114-16040
Cover, Water Proof(For Distributor)
[08.1985 - 07.1987] 4AC..AE86..CND |
19114-16040 |
— | ||
|
19115
|
19115
19115-63010 Piece, Distributor Cap, Center[05.1987 - 07.1987] 4AC..AE86 |
19115-63010 |
from US $1.40 |
||
|
19115
|
19115
19115-71010
Piece, Distributor Cap, Center
[03.1985 - 05.1987] 4AC..AE86 |
19115-71010 |
— | ||
| replacement | |||||
|
19115
|
19115
19115-63010 Piece, Distributor Cap, Center[03.1985 - 05.1987] 4AC..AE86 |
19115-63010 |
from US $1.40 |
||
|
19121
|
19121
19121-11010
Cover, Dust Proof
[08.1985 - 03.1986] 4AC..AE86..CND |
19121-11010 |
— | ||
| replacement | |||||
|
19121
|
19121
19121-11080 Cover, Dust Proof[08.1985 - 03.1986] 4AC..AE86..CND |
19121-11080 |
from US $4.02 |
||
|
19121
|
19121
19121-11080 Cover, Dust Proof[03.1986 - 07.1987] 4AC..AE86..CND |
19121-11080 |
from US $4.02 |
||
|
19121
|
19121
19121-15090
Cover, Dust Proof
[08.1983 - 08.1985] 4AC..AE86 NO.2 |
19121-15090 |
— | ||
|
19121
|
19121
19121-63040
Cover, Dust Proof
[08.1983 - 08.1985] 4AC..AE86 NO.1 |
19121-63040 |
— | ||
|
19127
|
19127
19127-11010
Packing, Dust Proof
[08.1985 - 07.1987] 4AC..AE86..CND |
19127-11010 |
— | ||
|
19127
|
19127
19127-15090
Packing, Dust Proof
[08.1983 - 08.1985] 4AC..AE86 NO.2 |
19127-15090 |
— | ||
|
19127
|
19127
19127-63020 Packing, Dust Proof[08.1983 - 08.1985] 4AC..AE86 NO.1 |
19127-63020 |
US $4.37 |
||
|
19144
|
19144
19144-16011
Lead, Distributor Breaker
[08.1983 - 08.1985] 4AC..AE86 |
19144-16011 |
— | ||
|
19144
|
19144
19144-16080
Lead, Distributor Breaker
[08.1985 - 07.1987] 4AC..AE86..CND |
19144-16080 |
— | ||
|
19152
|
19152
19152-15160 Weight, Governor[08.1983 - 07.1987] 4AC..AE86 |
19152-15160 |
US $12.52 |
||
|
19152A
|
19152A
90099-07122
Ring, Snap(For Governor Weight)
[08.1983 - 07.1987] 4AC..AE86 |
90099-07122 |
— | ||
|
19153
|
19153
19153-16120 Spring, Governor, AGOVERNOR, A [08.1983 - 08.1985] 4AC..AE86..CND |
19153-16120 |
US $5.24 |
||
| replacement | |||||
|
19153
|
19153
19153-16070
Spring, Governor, A
[08.1983 - 08.1985] 4AC..AE86..CND |
19153-16070 |
— | ||
|
19153
|
19153
19153-16200 Spring, Governor, AGOVERNOR, A [08.1985 - 07.1987] 4AC..AE86..CND |
19153-16200 |
US $5.39 |
||
|
19154
|
19154
19154-16120 Spring, Governor, BGOVERNOR, B [08.1983 - 08.1985] 4AC..AE86..CND |
19154-16120 |
US $5.24 |
||
| replacement | |||||
|
19154
|
19154
19154-16070
Spring, Governor, B
[08.1983 - 08.1985] 4AC..AE86..CND |
19154-16070 |
— | ||
|
19154
|
19154
19154-16200 Spring, Governor, BGOVERNOR, B [08.1985 - 07.1987] 4AC..AE86..CND |
19154-16200 |
US $5.39 |
||
|
19169
|
19169
19169-32010
Stopper, Cam Grease
[08.1983 - 02.1984] 4AC..AE86 |
19169-32010 |
— | ||
| replacement | |||||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[08.1983 - 02.1984] 4AC..AE86 |
19169-63011 |
— | ||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[02.1984 - 07.1987] 4AC..AE86 |
19169-63011 |
— | ||
|
19181
|
19181
19181-16130
Rotor, Distributor, Signal
[08.1983 - 08.1985] 4AC..AE86..CND |
19181-16130 |
— | ||
| replacement | |||||
|
19181
|
19181
19181-16170
Rotor, Distributor, Signal
[08.1983 - 08.1985] 4AC..AE86..CND |
19181-16170 |
— | ||
|
19181
|
19181
19181-16200
Rotor, Distributor, Signal
[08.1985 - 07.1987] 4AC..AE86..CND |
19181-16200 |
— | ||
| replacement | |||||
|
19181
|
19181
19181-16209
Rotor, Distributor, Signal
[08.1985 - 07.1987] 4AC..AE86..CND |
19181-16209 |
— | ||
|
19183
|
19183
19183-15010
Rotor, Signal
[08.1983 - 07.1987] 4AC..AE86 |
19183-15010 |
— | ||
|
19184
|
19184
19184-63010
Spring, Rotor Set
[08.1983 - 07.1987] 4AC..AE86 |
19184-63010 |
— | ||
|
19201
|
19201
89620-10120 Igniter[08.1985 - 07.1987] 4AC..AE86..CND |
89620-10120 |
US $342.45 |
||
|
19201
|
19201
89620-16070 Igniter[08.1983 - 08.1985] 4AC..AE86..CND |
89620-16070 |
US $327.60 |
||
| replacement | |||||
|
19201
|
19201
89620-10120 Igniter[08.1983 - 08.1985] 4AC..AE86..CND |
89620-10120 |
US $342.45 |
||
|
19220
|
19220
19220-16130 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [08.1983 - 08.1985] 4AC..AE86..CND |
19220-16130 |
US $96.10 |
||
|
19220
|
19220
19220-16220 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [08.1985 - 07.1987] 4AC..AE86..CND |
19220-16220 |
US $97.55 |
||
|
19235
|
19235
19235-14040 Housing, Distributor[08.1985 - 07.1987] 4AC..AE86..CND |
19235-14040 |
US $190.74 |
||
|
19250
|
19250
19251-15091 Generator Assy, Signal[08.1983 - 07.1987] 4AC..AE86 |
19251-15091 |
US $168.90 |
||
| replacement | |||||
|
19250
|
19250
19251-16100 Generator Assy, Signal[08.1983 - 07.1987] 4AC..AE86 |
19251-16100 |
US $171.23 |
||
|
19500B
|
19500B
90919-02139 Coil Assy, Ignition[08.1983 - 08.1985] 4AC..AE86..CND |
90919-02139 |
US $169.48 |
||
|
19500B
|
19500B
90919-02164 Coil Assy, Ignition[08.1985 - 07.1987] 4AC..AE86..CND |
90919-02164 |
from US $121.10 |
||
|
9009900157
|
9009900157
90099-00157
Bush, Commutator End Frame
|
90099-00157 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900957
|
9009900957
90099-00957
New Genuine Part
|
90099-00957 |
— | ||
|
9009900966
|
9009900966
90099-00966
New Genuine Part
|
90099-00966 |
— | ||
|
9009904977
|
9009904977
90099-04977 BOLT |
90099-04977 |
from US $1.46 |
||
|
9009905179
|
9009905179
90099-05179
New Genuine Part
|
90099-05179 |
— | ||
|
9009980507
|
9009980507
90099-80507
New Genuine Part
|
90099-80507 |
— | ||
|
9011908355
|
9011908355
90119-08355 Bolt |
90119-08355 |
US $3.04 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
