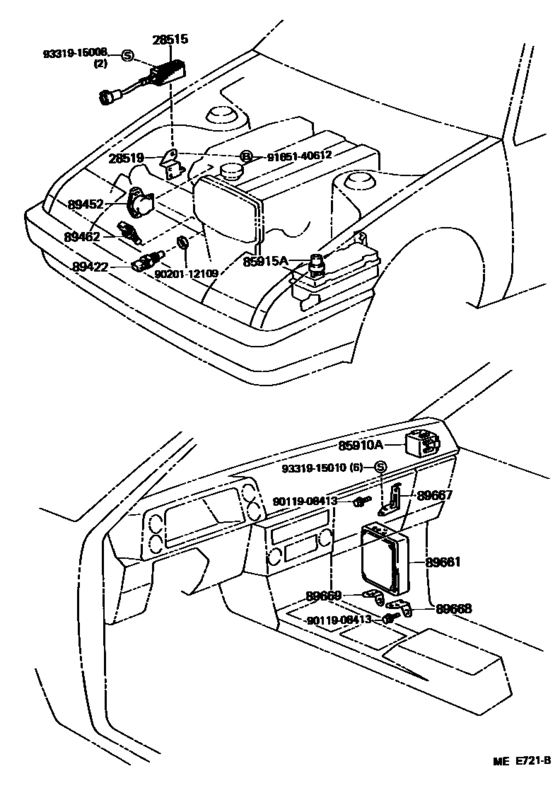

Electronic Fuel Injection System ([08.1984 - ] (8408- )GTS) Diagram Toyota COROLLA
- Year
- 1984 - 1987
- Sales region
- U.S.A.
- Frame
- AE86
- grade
- GTS
- ENGINE
- 4AGEC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1984
- To
- 07.1987
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla CP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28515
|
28515
28515-52010 Resistor, Solenoid[08.1984 - 07.1987] 4AGEC..AE86 |
28515-52010 |
US $155.79 |
||
| replacement | |||||
|
28515
|
28515
28515-11010
Resistor, Solenoid
[08.1984 - 07.1987] 4AGEC..AE86 |
28515-11010 |
— | ||
|
28519
|
28519
28519-15010
Bracket, Solenoid Resistor
[08.1984 - 08.1985] 4AGEC..AE86 |
28519-15010 |
— | ||
|
28519
|
28519
28519-15011 Bracket, Solenoid ResistorSOLENOID RESISTOR [08.1985 - 07.1987] 4AGEC..AE86 |
28519-15011 |
US $12.23 |
||
|
85910A
|
85910A
85910-30050 Relay Assy, Circuit Opening (For Efi)[08.1984 - 07.1987] AE86..GTS |
85910-30050 |
US $84.36 |
||
|
85915A
|
85915A
90987-02004 Relay Assy, Starter[08.1984 - 07.1987] AE86..GTS |
90987-02004 |
from US $28.70 |
||
| replacement | |||||
|
85915A
|
85915A
909870200483 [08.1984 - 07.1987] AE86..GTS |
909870200483 |
US $53.75 |
||
|
89422
|
89422
89422-30020
Sensor, Water Temperature (For E.f.i.)
[08.1984 - 07.1987] AE86..GTS |
89422-30020 |
— | ||
| replacement | |||||
|
89422
|
89422
89422-12010 Sensor, Water Temperature (For E.f.i.)[08.1984 - 07.1987] AE86..GTS |
89422-12010 |
from US $61.10 |
||
|
89452
|
89452
89452-20070 Sensor, Throttle Position (For E.f.i.)[08.1986 - 07.1987] AE86..GTS |
89452-20070 |
US $183.46 |
||
|
89452
|
89452
89452-28010
Sensor, Throttle Position (For E.f.i.)
[08.1984 - 08.1986] AE86..GTS |
89452-28010 |
— | ||
| replacement | |||||
|
89452
|
89452
89452-20060
Sensor, Throttle Position (For E.f.i.)
[08.1984 - 08.1986] AE86..GTS |
89452-20060 |
— | ||
|
89462
|
89462
89462-30011 Switch, Start Injector Time[08.1984 - 07.1987] AE86..GTS |
89462-30011 |
US $139.12 |
||
|
89661
|
89661
89661-12090 Computer, Engine ControlENGINE CONTROL [08.1984 - 05.1985] AE86..GTS |
89661-12090 |
US $1,287.10 |
||
| replacement | |||||
|
89661
|
89661
89661-12092 Computer, Engine Control[08.1984 - 05.1985] AE86..GTS |
89661-12092 |
US $1,291.47 |
||
|
89661
|
89661
89661-12091 Computer, Engine ControlENGINE CONTROL [05.1985 - 12.1985] AE86..GTS |
89661-12091 |
US $1,287.10 |
||
| replacement | |||||
|
89661
|
89661
89661-12092 Computer, Engine Control[05.1985 - 12.1985] AE86..GTS |
89661-12092 |
US $1,291.47 |
||
|
89661
|
89661
89661-12092 Computer, Engine Control[12.1985 - 07.1987] AE86..GTS |
89661-12092 |
US $1,291.47 |
||
|
89667
|
89667
89667-12050
Bracket, Engine Control Computer
[08.1984 - 07.1987] AE86..GTS |
89667-12050 |
— | ||
|
89668
|
89668
89668-12020 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [08.1984 - 07.1987] AE86..GTS |
89668-12020 |
US $15.87 |
||
|
89669
|
89669
89669-12020
Bracket, Engine Control Computer, No.3
[08.1984 - 07.1987] AE86..GTS |
89669-12020 |
— | ||
|
9011908413
|
9011908413
90119-08413 New Genuine Part |
90119-08413 |
US $0.70 |
||
|
9020112109
|
9020112109
90201-12109 Washer, Air Bleeder Nipple |
90201-12109 |
from US $1.38 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
