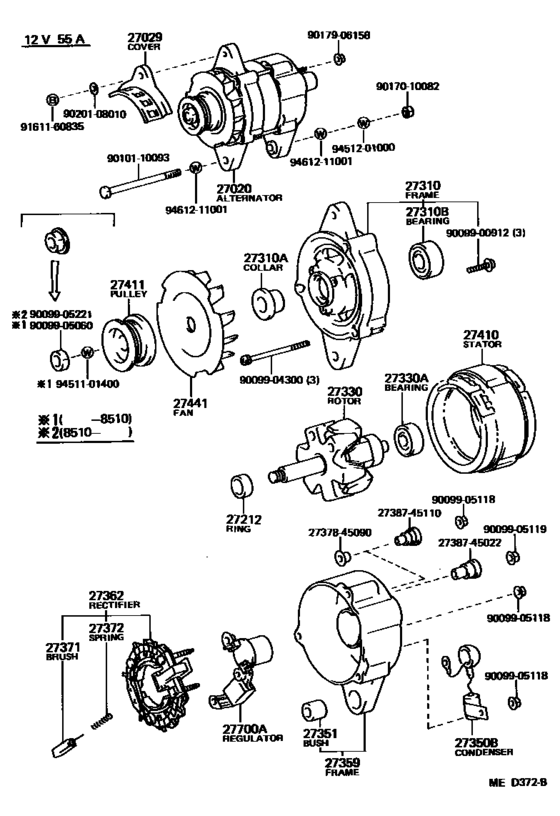

Alternator ([08.1983 - ] (8308- )4AC) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE86
- grade
- DX
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla CP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-16030 Alternator Assy[08.1983 - 07.1987] 4AC..AE86 12V 55A |
27060-16030 |
US $1,288.56 |
||
|
27029
|
27029
27029-15012 Cover, Alternator[08.1983 - 07.1987] 4AC..AE86 12V 55A |
27029-15012 |
US $8.88 |
||
|
27212
|
27212
27412-15150
Ring, Space(For Alternator Rotor)
[10.1985 - 07.1987] 4AC..AE86 12V 55A |
27412-15150 |
— | ||
|
27212
|
27212
27412-45070
Ring, Space(For Alternator Rotor)
[08.1983 - 10.1985] 4AC..AE86 12V 55A |
27412-45070 |
— | ||
|
27310
|
27310
27310-15120
Frame Assy, Drive End, Alternator
[01.1985 - 07.1987] 4AC..AE86 12V 55A |
27310-15120 |
— | ||
|
27310
|
27310
27310-61070
Frame Assy, Drive End, Alternator
[08.1983 - 01.1985] 4AC..AE86 12V 55A |
27310-61070 |
— | ||
|
27310A
|
27310A
27412-16030
Collar Or Nut(For Alternator Drive End Frame)
[01.1985 - 10.1985] 4AC..AE86 12V 55A |
27412-16030 |
— | ||
|
27310A
|
27310A
27412-16040
Ring, Space(For Alternator Rotor)
[10.1985 - 07.1987] 4AC..AE86 12V 55A |
27412-16040 |
— | ||
|
27310A
|
27310A
27412-31040
Collar Or Nut(For Alternator Drive End Frame)
[08.1983 - 01.1985] 4AC..AE86 12V 55A |
27412-31040 |
— | ||
|
27310B
|
27310B
90099-10125 Bearing(For Alternator Drive End Frame)[08.1983 - 01.1985] 4AC..AE86 12V 55A |
90099-10125 |
US $9.61 |
||
|
27310B
|
27310B
90099-10142 Bearing(For Alternator Drive End Frame)[01.1985 - 07.1987] 4AC..AE86 12V 55A |
90099-10142 |
US $17.39 |
||
|
27330
|
27330
27330-43040
Rotor Assy, Alternator
[08.1983 - 07.1987] 4AC..AE86 12V 55A |
27330-43040 |
— | ||
|
27330A
|
27330A
90099-10116
Bearing(For Alternator Rotor)
[08.1983 - 07.1987] 4AC..AE86 12V 55A |
90099-10116 |
— | ||
|
27350B
|
27350B
90099-52065 Condenser, Alternator[08.1983 - 07.1987] 4AC..AE86 12V 55A |
90099-52065 |
US $3.45 |
||
| replacement | |||||
|
27350B
|
27350B
90099-52034
Condenser, Alternator
[08.1983 - 07.1987] 4AC..AE86 12V 55A |
90099-52034 |
— | ||
|
27351
|
27351
27351-38051
Bush(For Alternator Rectifier End Frame)
[08.1983 - 07.1987] 4AC..AE86 12V 55A |
27351-38051 |
— | ||
|
27359
|
27359
27359-16050
Frame, Alternator Rectifier End
[08.1983 - 07.1987] 4AC..AE86 12V 55A |
27359-16050 |
— | ||
|
27362
|
27362
27362-63030
Rectifier Assy, W/brush
[08.1983 - 07.1987] 4AC..AE86 12V 55A |
27362-63030 |
— | ||
|
27371
|
27371
27371-31011 Brush, Alternator[08.1983 - 07.1987] 4AC..AE86 12V 55A |
27371-31011 |
US $2.80 |
||
|
27372
|
27372
27372-31011
Spring, Alternator Brush
[08.1983 - 07.1987] 4AC..AE86 12V 55A |
27372-31011 |
— | ||
|
27410
|
27410
27410-72040
Stator Assy, Alternator
[08.1983 - 07.1987] 4AC..AE86 12V 55A |
27410-72040 |
— | ||
|
27411
|
27411
27411-15110
Pulley, Alternator
[08.1983 - 07.1987] 4AC..AE86 12V 55A |
27411-15110 |
— | ||
|
27441
|
27441
27441-63030
Fan, Alternator
[08.1983 - 07.1987] 4AC..AE86 12V 55A |
27441-63030 |
— | ||
|
27700A
|
27700A
27700-63030
Regulator Assy, Generator
[08.1983 - 07.1987] 4AC..AE86 12V 55A |
27700-63030 |
— | ||
|
2737845090
|
2737845090
27378-45090
Insulator, Alternator, No.1
|
27378-45090 |
— | ||
|
2738745022
|
2738745022
27387-45022
Insulator, Terminal
|
27387-45022 |
— | ||
|
2738745110
|
2738745110
27387-45110
Insulator, Terminal
|
27387-45110 |
— | ||
|
9009900912
|
9009900912
90099-00912
New Genuine Part
|
90099-00912 |
— | ||
|
9009904300
|
9009904300
90099-04300
New Genuine Part
|
90099-04300 |
— | ||
|
9009905060
|
9009905060
90099-05060
Collar Or Nut(For Alternator Drive End Frame)
|
90099-05060 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905221
|
9009905221
90099-05221
New Genuine Part
|
90099-05221 |
— | ||
|
9010110093
|
9010110093
90101-10093
New Genuine Part
|
90101-10093 |
— | ||
|
9017010082
|
9017010082
90170-10082 Nut, Hexagon (For Control Rod Setting) |
90170-10082 |
from US $2.56 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9020108010
|
9020108010
90201-08010 New Genuine Part |
90201-08010 |
US $2.91 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.44 |
||
|
9451101400
|
9451101400
94511-01400
WASHER
|
94511-01400 |
— | ||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
