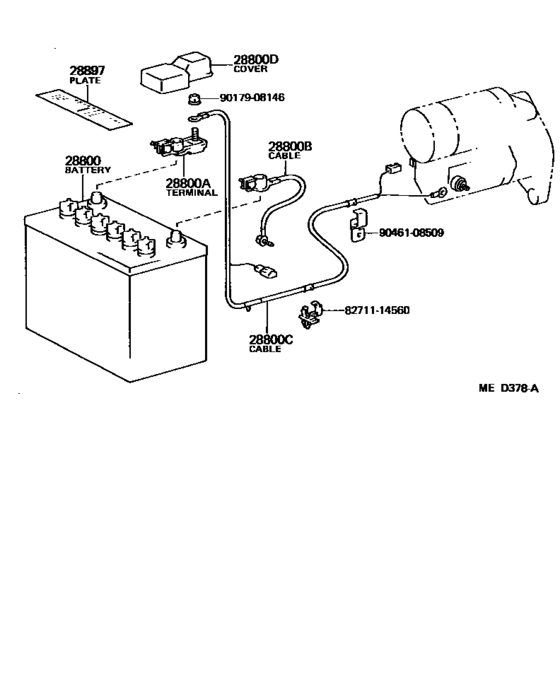

Battery & Battery Cable ([08.1983 - ] (8308- )) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE86
- grade
- DX
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla CP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800
|
28800
28800-15050
Battery
[02.1985 - 07.1987] 4A#..AE86 55D23L,55D23L-MF(12V 60AH-20HR) |
28800-15050 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-42041
Battery
[02.1985 - 07.1987] 4A#..AE86 55D23L,55D23L-MF(12V 60AH-20HR) |
28800-42041 |
— | ||
|
28800
|
28800
28800-31031
Battery
[08.1983 - 07.1987] 4A#..AE86..USA 32C24L,N40L(12V 40AH-20HR) |
28800-31031 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-20060
Battery (Cannot be supplied)
[08.1983 - 07.1987] 4A#..AE86..USA 32C24L,N40L(12V 40AH-20HR) |
28800-20060 |
— | ||
|
28800
|
28800
28800-31190
Battery
[11.1984 - 02.1985] 4A#..AE86..USA 50D20L-MF(12V 50AH-20HR) |
28800-31190 |
— | ||
|
28800
|
28800
28800-31200
Battery
[02.1985 - 07.1987] 4A#..AE86..USA 50D20L,50D20L-MF(12V 50AH-20HR) |
28800-31200 |
— | ||
|
28800
|
28800
28800-43070
Battery
[08.1983 - 02.1985] 4A#..AE86 55D23L-MF(12V 60AH-20HR) |
28800-43070 |
— | ||
|
28800
|
28800
28800-43090
Battery
[08.1983 - 11.1984] 4A#..AE86..USA 50D20L-MF(12V 50AH-20HR) |
28800-43090 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-31190
Battery
[08.1983 - 11.1984] 4A#..AE86..USA 50D20L-MF(12V 50AH-20HR) |
28800-31190 |
— | ||
|
28800A
|
28800A
90982-05029
Terminal, Battery Positive
[08.1983 - 10.1986] 4A#..AE86 |
90982-05029 |
— | ||
| replacement | |||||
|
28800A
|
28800A
90982-05030 Terminal, Battery Positive[08.1983 - 10.1986] 4A#..AE86 |
90982-05030 |
from US $13.57 |
||
|
28800A
|
28800A
90982-05030 Terminal, Battery Positive[10.1986 - 07.1987] 4A#..AE86 |
90982-05030 |
from US $13.57 |
||
|
28800B
|
28800B
82123-12090
Cable, Battery To Ground
[08.1983 - 07.1987] 4A#..AE86 |
82123-12090 |
— | ||
|
28800C
|
28800C
82122-12180 Cable, Battery To Starter(For Battery To Main Switch)BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) [08.1983 - 07.1987] 4AC..AE86 |
82122-12180 |
US $61.44 |
||
|
28800D
|
28800D
82821-12190 Cover, Connector(For Battery Terminal)[08.1983 - 07.1987] 4A#..AE86 |
82821-12190 |
US $9.92 |
||
|
28897
|
28897
28897-26010
Plate, Battery Caution
[08.1983 - 07.1987] 4A#..AE86..USA POISON/DANGER |
28897-26010 |
— | ||
|
28897
|
28897
28898-26010 Plate, Battery CautionBATTERY [08.1983 - 07.1987] 4A#..AE86..USA DISTRIBUTOR NAME |
28898-26010 |
US $1.56 |
||
|
8271114560
|
8271114560
82711-14560 Wire, Fuse To Fuse(for Combustion Heater) |
82711-14560 |
US $1.76 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9046108509
|
9046108509
90461-08509 New Genuine Part |
90461-08509 |
US $3.49 |
||
