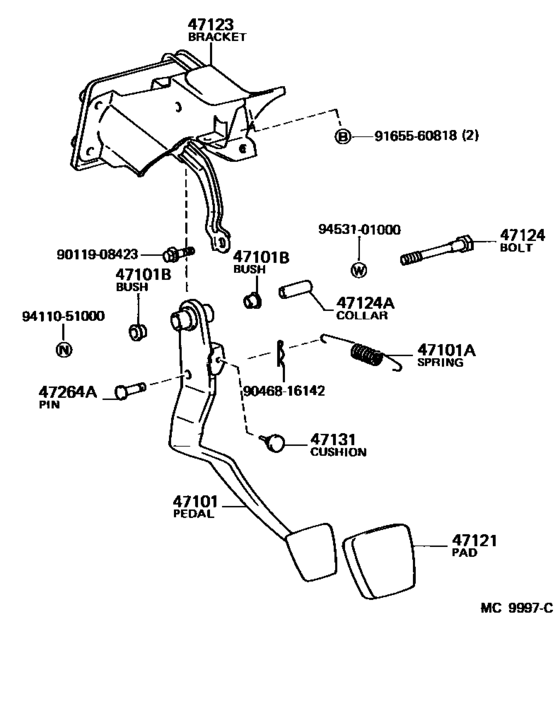

Brake Pedal & Bracket ([08.1983 - ] (8308- )) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE86
- grade
- DX
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla CP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-12330 Pedal Sub-Assy, BrakeBRAKE [08.1983 - 07.1987] AE86..4FC |
47101-12330 |
US $38.15 |
||
|
47101A
|
47101A
90507-16006
Spring(For Brake Pedal Return)
[08.1983 - 07.1987] AE86 |
90507-16006 |
— | ||
|
47101B
|
47101B
90386-13007 Bush(For Clutch Pedal)[08.1983 - 07.1987] AE86 |
90386-13007 |
from US $2.56 |
||
|
47121
|
47121
47121-12020 Pad, Brake Pedal[08.1983 - 07.1987] AE86..4FC |
47121-12020 |
from US $5.17 |
||
|
47123
|
47123
55106-12530
Bracket, Brake Pedal
[04.1986 - 07.1987] AE86 |
55106-12530 |
— | ||
|
47123
|
47123
55106-12540 Bracket, Brake PedalBRAKE PEDAL [08.1983 - 04.1986] AE86 |
55106-12540 |
US $42.22 |
||
| replacement | |||||
|
47123
|
47123
55106-12530
Bracket, Brake Pedal
[08.1983 - 04.1986] AE86 |
55106-12530 |
— | ||
|
47124
|
47124
90101-10015 Shaft, Clutch Pedal[08.1983 - 07.1987] AE86 |
90101-10015 |
from US $1.27 |
||
| replacement | |||||
|
47124
|
47124
90101100151 Bolt, Hexagon[08.1983 - 07.1987] AE86 |
90101100151 |
US $1.11 |
||
|
47124A
|
47124A
90387-10003 Collar, Clutch Pedal Shaft[08.1983 - 07.1987] AE86 |
90387-10003 |
from US $4.11 |
||
|
47131
|
47131
90541-06008 Cushion, No.1(For Clutch Pedal)[08.1983 - 07.1987] AE86 |
90541-06008 |
from US $1.60 |
||
|
47264A
|
47264A
90249-10064 Pin(For Push Rod)[08.1983 - 07.1987] AE86 |
90249-10064 |
US $3.36 |
||
|
9011908423
|
9011908423
90119-08423
New Genuine Part
|
90119-08423 |
— | ||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.88 |
||
|
9165560818
|
9165560818
91655-60818
New Genuine Part
|
91655-60818 |
— | ||
| replacement | |||||
|
9165560818
|
9165560818
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $2.08 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.44 |
||
