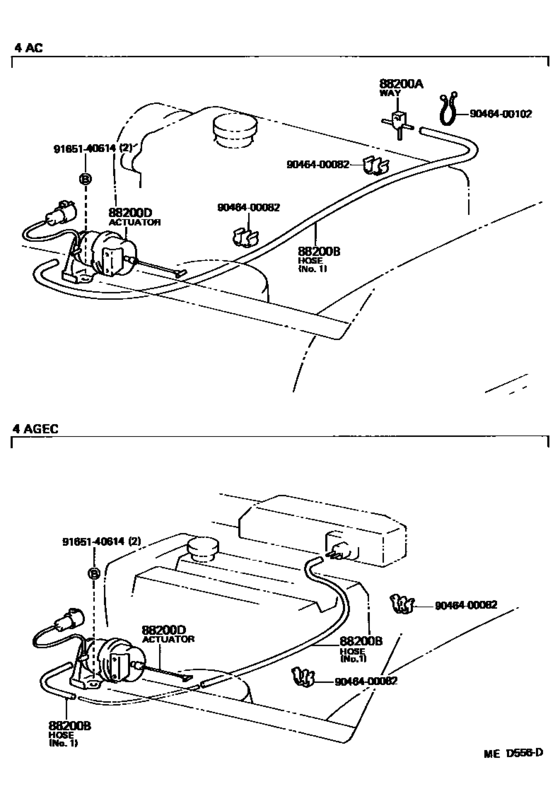

Cruise Control (Auto Drive) ([08.1983 - 08.1985] (8308-8508)) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE86
- grade
- DX
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla CP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88200A
|
88200A
90413-04005 Way, 3, No.1 (For Front Drive Shift)[08.1983 - 09.1985] AE86..DX,SR5 |
90413-04005 |
from US $3.04 |
||
|
88200B
|
88200B
88283-12060 Hose, Cruise Control VacuumCRUISE CONTROL VACUUM [04.1986 - 07.1987] AE86..(DX,SR5)..USA NO.2 |
88283-12060 |
US $4.08 |
||
|
88200B
|
88200B
90445-08169 Hose, Fuel, No.1(For Charcoal Canister)[08.1983 - 08.1985] AE86..DX,SR5 L=1050,NO.1 |
90445-08169 |
US $14.71 |
||
| replacement | |||||
|
88200B
|
88200B
90999-92006 Hose, Vacuum, No.1 (For Front Drive Shift)[08.1983 - 08.1985] AE86..DX,SR5 L=1050,NO.1 |
90999-92006 |
from US $21.94 |
||
|
88200B
|
88200B
95411-19930
Hose(For Carburetor To Manifold)
[08.1985 - 09.1985] AE86 *H,L=90,MARK=#*,NO.1 |
95411-19930 |
— | ||
| replacement | |||||
|
88200B
|
88200B
90999-92002
Air Hose (300 mm)
[08.1985 - 09.1985] AE86 *H,L=90,MARK=#*,NO.1 |
90999-92002 |
— | ||
|
88200B
|
88200B
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
[08.1985 - 09.1985] AE86..DX,SR5 *H,L=360,MARK=#*,NO.1 |
95411-19960 |
— | ||
| replacement | |||||
|
88200B
|
88200B
90999-92003
Hose, Breather (For Transfer Case)
[08.1985 - 09.1985] AE86..DX,SR5 *H,L=360,MARK=#*,NO.1 |
90999-92003 |
— | ||
|
88200B
|
88200B
95411-19995
Hose, Vaccum
[08.1985 - 09.1985] AE86..DX,SR5 *H,L=850,MARK=#*,NO.1 |
95411-19995 |
— | ||
| replacement | |||||
|
88200B
|
88200B
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)[08.1985 - 09.1985] AE86..DX,SR5 *H,L=850,MARK=#*,NO.1 |
90999-92004 |
from US $9.46 |
||
|
88200D
|
88200D
88200-12010 Actuator Assy, Cruise Control[08.1983 - 08.1985] AE86 |
88200-12010 |
US $713.44 |
||
| replacement | |||||
|
88200D
|
88200D
88200-12100 Actuator Assy, Cruise Control[08.1983 - 08.1985] AE86 |
88200-12100 |
US $770.22 |
||
|
88200D
|
88200D
88200-12011 Actuator Assy, Cruise Control[08.1985 - 02.1986] AE86 |
88200-12011 |
US $767.31 |
||
| replacement | |||||
|
88200D
|
88200D
88200-12012 Actuator Assy, Cruise Control[08.1985 - 02.1986] AE86 |
88200-12012 |
US $770.22 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9046400102
|
9046400102
90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable) |
90464-00102 |
US $2.33 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
