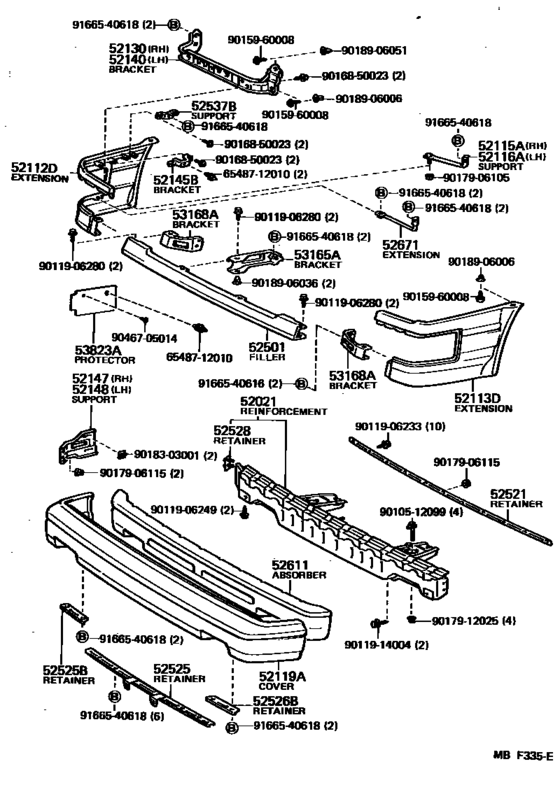

Front Bumper & Bumper Stay ([08.1983 - 08.1985] (8308-8508)) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE86
- grade
- DX
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla CP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021
|
52021
52021-12100 Reinforcement Sub-Assy, Front BumperFRONT BUMPER [08.1983 - 07.1987] AE86..DX,SR5 |
52021-12100 |
US $279.55 |
||
|
52112D
|
52112D
52112-12100 Extension, Front Bumper, RhFRONT BUMPER, RH [08.1983 - 01.1984] AE86 |
52112-12100 |
US $70.62 |
||
| replacement | |||||
|
52112D
|
52112D
52112-12101 Extension, Front Bumper, RhFRONT BUMPER, RH [08.1983 - 01.1984] AE86 |
52112-12101 |
US $70.62 |
||
|
52112D
|
52112D
52112-12101 Extension, Front Bumper, RhFRONT BUMPER, RH [01.1984 - 08.1985] AE86..DX,SR5 |
52112-12101 |
US $70.62 |
||
|
52112D
|
52112D
52112-12102 Extension, Front Bumper, RhFRONT BUMPER, RH [08.1985 - 07.1987] AE86..DX,SR5 |
52112-12102 |
US $70.76 |
||
|
52113D
|
52113D
52113-12100 Extension, Front Bumper, LhFRONT BUMPER, LH [08.1983 - 01.1984] AE86 |
52113-12100 |
US $70.62 |
||
| replacement | |||||
|
52113D
|
52113D
52113-12101 Extension, Front Bumper, LhFRONT BUMPER, LH [08.1983 - 01.1984] AE86 |
52113-12101 |
US $70.62 |
||
|
52113D
|
52113D
52113-12101 Extension, Front Bumper, LhFRONT BUMPER, LH [01.1984 - 08.1985] AE86..DX,SR5 |
52113-12101 |
US $70.62 |
||
|
52113D
|
52113D
52113-12102 Extension, Front Bumper, LhFRONT BUMPER, LH [08.1985 - 07.1987] AE86..DX,SR5 |
52113-12102 |
US $70.76 |
||
|
52115A
|
52115A
52115-12160 Support, Front Bumper Side, RhFRONT BUMPER SIDE, RH [08.1983 - 07.1987] AE86..DX,SR5 |
52115-12160 |
US $11.52 |
||
|
52116A
|
52116A
52115-12160 Support, Front Bumper Side, RhFRONT BUMPER SIDE, RH [08.1983 - 07.1987] AE86..DX,SR5 |
52115-12160 |
US $11.52 |
||
|
52119A
|
52119A
52119-12160 Cover, Front BumperFRONT BUMPER [08.1983 - 07.1987] AE86..DX,SR5 |
52119-12160 |
US $420.78 |
||
|
52130
|
52130
52130-12010 Bracket Assy, Front Bumper Side Mounting, RhFRONT BUMPER SIDE MOUNTING, RH [08.1983 - 08.1985] AE86 |
52130-12010 |
US $13.98 |
||
|
52130
|
52130
52130-12011 Bracket Assy, Front Bumper Side Mounting, RhFRONT BUMPER SIDE MOUNTING, RH [08.1985 - 07.1987] AE86 |
52130-12011 |
US $13.10 |
||
|
52140
|
52140
52140-12010 Bracket Assy, Front Bumper Side Mounting, LhFRONT BUMPER SIDE MOUNTING, LH [08.1983 - 08.1985] AE86 |
52140-12010 |
US $13.98 |
||
|
52140
|
52140
52140-12011 Bracket Assy, Front Bumper Side Mounting, LhFRONT BUMPER SIDE MOUNTING, LH [08.1985 - 07.1987] AE86 |
52140-12011 |
US $13.10 |
||
|
52145B
|
52145B
52145-12080 Bracket, Front Bumper Side MountingFRONT BUMPER SIDE MOUNTING [08.1983 - 08.1985] AE86 |
52145-12080 |
US $12.81 |
||
|
52147
|
52147
52115-12170 Support, Front Bumper, RhFRONT BUMPER, RH [08.1983 - 07.1987] AE86 |
52115-12170 |
US $18.78 |
||
|
52148
|
52148
52116-12140 Support, Front Bumper, LhFRONT BUMPER, LH [08.1983 - 07.1987] AE86 |
52116-12140 |
US $18.78 |
||
|
52501
|
52501
52511-12030
Filler Sub-Assy, Front Bumper
[08.1983 - 08.1985] AE86..DX,SR5 |
52511-12030 |
— | ||
| replacement | |||||
|
52501
|
52501
52511-12031
Filler Sub-Assy, Front Bumper
[08.1983 - 08.1985] AE86..DX,SR5 |
52511-12031 |
— | ||
|
52501
|
52501
52511-12031
Filler Sub-Assy, Front Bumper
[08.1985 - 07.1987] AE86..DX,SR5 |
52511-12031 |
— | ||
|
52521
|
52521
52521-12060
Retainer, Front Bumper, Upper Center
[08.1983 - 07.1987] AE86 |
52521-12060 |
— | ||
|
52525
|
52525
52072-12010 Retainer, Front Bumper, Lower CenterFRONT BUMPER, LOWER CENTER [08.1983 - 07.1987] AE86 |
52072-12010 |
US $42.08 |
||
|
52525B
|
52525B
52526-12010
Retainer, Front Bumper, Lower Side
[08.1983 - 07.1987] AE86 |
52526-12010 |
— | ||
|
52526B
|
52526B
52526-12010
Retainer, Front Bumper, Lower Side
[08.1983 - 07.1987] AE86 |
52526-12010 |
— | ||
|
52528
|
52528
52528-12020 Retainer, Front Bumper, Lower CornerFRONT BUMPER, LOWER CORNER [08.1983 - 08.1985] AE86..DX,SR5 |
52528-12020 |
US $4.95 |
||
|
52537B
|
52537B
52537-12010 Support, Front Bumper Side No.2FRONT BUMPER SIDE NO.2 [08.1983 - 07.1987] AE86 |
52537-12010 |
US $8.74 |
||
|
52611
|
52611
52611-12090 Absorber, Front Bumper EnergyFRONT BUMPER ENERGY [08.1983 - 07.1987] AE86 |
52611-12090 |
US $199.47 |
||
|
52671
|
52671
52671-12010 Extension, Front Bumper ArmFRONT BUMPER ARM [08.1983 - 08.1984] AE86 |
52671-12010 |
US $18.49 |
||
|
53165A
|
53165A
53165-12030 Bracket, Front Bumper Stone Deflector, No.1FRONT BUMPER STONE DEFLECTOR, NO.1 [08.1983 - 07.1987] AE86..DX,SR5 |
53165-12030 |
US $18.05 |
||
|
53168A
|
53168A
52061-12010
Bracket, Front Bumper Stone Deflector, No.2
[08.1985 - 07.1987] AE86..DX,SR5 RH |
52061-12010 |
— | ||
|
53168A
|
53168A
52062-12010 Bracket, Front Bumper Stone Deflector, No.2FRONT BUMPER STONE DEFLECTOR, NO.2 [08.1985 - 07.1987] AE86..DX,SR5 LH |
52062-12010 |
US $12.23 |
||
|
53168A
|
53168A
53167-12030 Bracket, Front Bumper Stone Deflector, No.2FRONT BUMPER STONE DEFLECTOR, NO.2 [08.1983 - 08.1985] AE86..DX,SR5 RH |
53167-12030 |
US $20.09 |
||
|
53168A
|
53168A
53168-12020 Bracket, Front Bumper Stone Deflector, No.2FRONT BUMPER STONE DEFLECTOR, NO.2 [08.1983 - 08.1985] AE86..DX,SR5 LH |
53168-12020 |
US $20.09 |
||
|
53823A
|
53823A
53823-12010 Protector, Front Side Panel, No.2FRONT SIDE PANEL, NO.2 [08.1983 - 07.1987] AE86 |
53823-12010 |
US $26.50 |
||
|
6548712010
|
6548712010
65487-12010 Clip, Corner Protector |
65487-12010 |
US $4.95 |
||
|
9010512099
|
9010512099
90105-12099 New Genuine Part |
90105-12099 |
US $8.48 |
||
|
9011906233
|
9011906233
90119-06233 New Genuine Part |
90119-06233 |
US $2.77 |
||
|
9011906249
|
9011906249
90119-06249 New Genuine Part |
90119-06249 |
US $2.18 |
||
|
9011906280
|
9011906280
90119-06280 New Genuine Part |
90119-06280 |
US $2.18 |
||
| replacement | |||||
|
9011906280
|
9011906280
90119-06407 New Genuine Part |
90119-06407 |
US $1.92 |
||
|
9011914004
|
9011914004
90119-14004 New Genuine Part |
90119-14004 |
US $5.44 |
||
|
9015960008
|
9015960008
90159-60008 SCREW |
90159-60008 |
US $1.12 |
||
|
9016850023
|
9016850023
90168-50023 SCREW |
90168-50023 |
US $1.76 |
||
|
9017906105
|
9017906105
90179-06105
Clip(For Front Bumper), No.1
|
90179-06105 |
— | ||
| replacement | |||||
|
9017906105
|
9017906105
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $1.92 |
||
|
9017912025
|
9017912025
90179-12025 Nut (For Rear Axle Carrier) |
90179-12025 |
from US $1.21 |
||
|
9018303001
|
9018303001
90183-03001
New Genuine Part
|
90183-03001 |
— | ||
| replacement | |||||
|
9018303001
|
9018303001
90468-04038 CLIP |
90468-04038 |
US $1.49 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9018906036
|
9018906036
90189-06036 New Genuine Part |
90189-06036 |
US $1.92 |
||
|
9018906051
|
9018906051
90189-06051 New Genuine Part |
90189-06051 |
US $3.35 |
||
|
9046705014
|
9046705014
90467-05014 Clip(for Luggage Compartment Trim Rear Cover) |
90467-05014 |
US $1.46 |
||
| replacement | |||||
|
9046705014
|
9046705014
90467-05014-B0 Clip, Roof Headlining |
90467-05014-B0 |
US $1.38 |
||
|
9166540616
|
9166540616
91665-40616 Screw(For Steering Column Tube) |
91665-40616 |
US $1.12 |
||
| replacement | |||||
|
9166540616
|
9166540616
90080-11247 New Genuine Part |
90080-11247 |
US $2.46 |
||
|
9166540618
|
9166540618
91665-40618
New Genuine Part
|
91665-40618 |
— | ||
| replacement | |||||
|
9166540618
|
9166540618
91661-40616 New Genuine Part |
91661-40616 |
US $1.28 |
||
