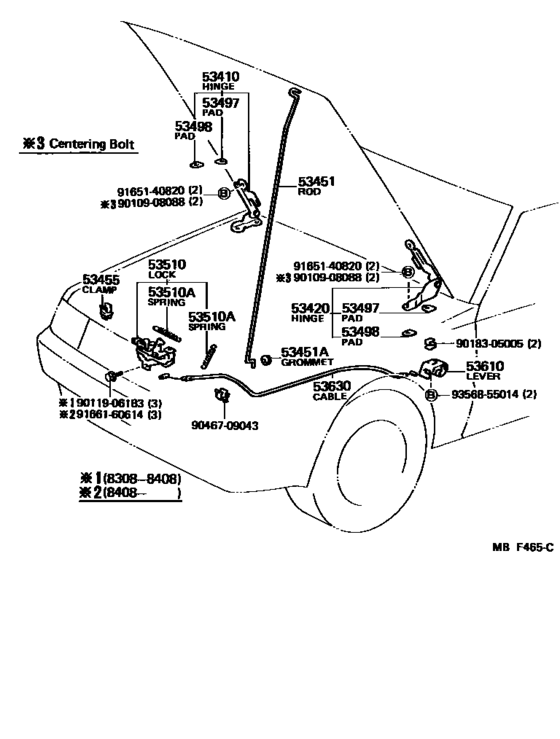

Hood Lock & Hinge ([08.1983 - ] (8308- )) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE86
- grade
- DX
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla CP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-12060
Hinge Assy, Hood, Rh
[08.1983 - 07.1987] AE86 PAD T=1.0 |
53410-12060 |
— | ||
| replacement | |||||
|
53410
|
53410
53410-12061
Hinge Assy, Hood, Rh
[08.1983 - 07.1987] AE86 PAD T=1.0 |
53410-12061 |
— | ||
|
53410
|
53410
53410-12090
Hinge Assy, Hood, Rh
[08.1983 - 07.1987] AE86 PAD T=2.0 |
53410-12090 |
— | ||
| replacement | |||||
|
53410
|
53410
53410-12061
Hinge Assy, Hood, Rh
[08.1983 - 07.1987] AE86 PAD T=2.0 |
53410-12061 |
— | ||
|
53420
|
53420
53420-12050
Hinge Assy, Hood, Lh
[08.1983 - 07.1987] AE86 PAD T=1.0 |
53420-12050 |
— | ||
| replacement | |||||
|
53420
|
53420
53420-12051
Hinge Assy, Hood, Lh
[08.1983 - 07.1987] AE86 PAD T=1.0 |
53420-12051 |
— | ||
|
53420
|
53420
53420-12080 Hinge Assy, Hood, LhHOOD, LH [08.1983 - 07.1987] AE86 PAD T=2.0 |
53420-12080 |
US $32.47 |
||
| replacement | |||||
|
53420
|
53420
53420-12051
Hinge Assy, Hood, Lh
[08.1983 - 07.1987] AE86 PAD T=2.0 |
53420-12051 |
— | ||
|
53451
|
53451
53451-12030
Rod, Hood Support
[08.1983 - 07.1987] AE86 |
53451-12030 |
— | ||
|
53451A
|
53451A
90480-15002 Grommet(For Hood Support)[08.1983 - 07.1987] AE86 |
90480-15002 |
from US $2.07 |
||
|
53455
|
53455
53455-12030 Clamp, Hood Support Rod[08.1983 - 07.1987] AE86 |
53455-12030 |
from US $3.68 |
||
|
53497
|
53497
53497-12010
Pad, Hood Hinge, No.1
[08.1983 - 10.1985] AE86 T=1.0 |
53497-12010 |
— | ||
| replacement | |||||
|
53497
|
53497
53497-12011 Pad, Hood Hinge, No.1[08.1983 - 10.1985] AE86 T=1.0 |
53497-12011 |
US $1.92 |
||
|
53497
|
53497
53497-12020 Pad, Hood Hinge, No.1HOOD HINGE, NO.1 [08.1983 - 10.1985] AE86 T=2.0 |
53497-12020 |
US $2.48 |
||
| replacement | |||||
|
53497
|
53497
53497-12011 Pad, Hood Hinge, No.1[08.1983 - 10.1985] AE86 T=2.0 |
53497-12011 |
US $1.92 |
||
|
53498
|
53498
53498-12010
Pad, Hood Hinge, No.2
[08.1983 - 10.1985] AE86 T=1.0 |
53498-12010 |
— | ||
| replacement | |||||
|
53498
|
53498
53498-12011 Pad, Hood Hinge, No.2[08.1983 - 10.1985] AE86 T=1.0 |
53498-12011 |
US $1.92 |
||
|
53498
|
53498
53498-12020 Pad, Hood Hinge, No.2HOOD HINGE, NO.2 [08.1983 - 10.1985] AE86 T=2.0 |
53498-12020 |
US $2.18 |
||
| replacement | |||||
|
53498
|
53498
53498-12011 Pad, Hood Hinge, No.2[08.1983 - 10.1985] AE86 T=2.0 |
53498-12011 |
US $1.92 |
||
|
53510
|
53510
53510-12270
Lock Assy, Hood
[08.1983 - 07.1987] AE86 |
53510-12270 |
— | ||
|
53510A
|
53510A
90506-09032 Spring, Tension(For Hood Lock)[08.1983 - 07.1987] AE86 L=34.4 |
90506-09032 |
US $2.18 |
||
|
53510A
|
53510A
90506-20008 Spring, Tension(For Hood Lock)[08.1983 - 07.1987] AE86 WD=2.0,CW=17,L=60.0 |
90506-20008 |
from US $3.52 |
||
|
53610
|
53610
53601-12030-01 Lever Assy, Hood Lock ReleaseHOOD LOCK RELEASE [08.1985 - 07.1987] AE86 BLACK,BLACK |
53601-12030-01 |
US $36.55 |
||
| replacement | |||||
|
53610
|
53610
53601-20060-C0 Lever Sub-Assy, Hood Lock Control (Black)[08.1985 - 07.1987] AE86 BLACK,BLACK |
53601-20060-C0 |
from US $39.82 |
||
|
53610
|
53610
53601-12030-02 Lever Assy, Hood Lock ReleaseHOOD LOCK RELEASE [08.1983 - 08.1985] AE86 DEEP MAROON,RED/MAROON |
53601-12030-02 |
US $36.55 |
||
| replacement | |||||
|
53610
|
53610
53601-20060-C0 Lever Sub-Assy, Hood Lock Control (Black)[08.1983 - 08.1985] AE86 DEEP MAROON,RED/MAROON |
53601-20060-C0 |
from US $39.82 |
||
|
53610
|
53610
53601-12030-12 Lever Assy, Hood Lock Release[08.1985 - 07.1987] AE86..DX,SR5 MAROON,MAROON |
53601-12030-12 |
US $36.55 |
||
| replacement | |||||
|
53610
|
53610
53601-20060-C0 Lever Sub-Assy, Hood Lock Control (Black)[08.1985 - 07.1987] AE86..DX,SR5 MAROON,MAROON |
53601-20060-C0 |
from US $39.82 |
||
|
53610
|
53610
53601-12030-14 Lever Assy, Hood Lock ReleaseHOOD LOCK RELEASE [08.1983 - 08.1985] AE86..DX,SR5 BLUE,BLUE |
53601-12030-14 |
US $36.55 |
||
| replacement | |||||
|
53610
|
53610
53601-20060-C0 Lever Sub-Assy, Hood Lock Control (Black)[08.1983 - 08.1985] AE86..DX,SR5 BLUE,BLUE |
53601-20060-C0 |
from US $39.82 |
||
|
53630
|
53630
53630-12220
Cable Assy, Hood Lock Control
[08.1983 - 07.1987] AE86 |
53630-12220 |
— | ||
|
9010908088
|
9010908088
90109-08088
New Genuine Part
|
90109-08088 |
— | ||
| replacement | |||||
|
9010908088
|
9010908088
90119-08716 BOLT WWASHER |
90119-08716 |
from US $0.82 |
||
|
9011906183
|
9011906183
90119-06183 New Genuine Part |
90119-06183 |
US $1.76 |
||
|
9018305005
|
9018305005
90183-05005
Clip, Instrument Panel Finish, Lower Center
|
90183-05005 |
— | ||
| replacement | |||||
|
9018305005
|
9018305005
90183-05018
Clip, Instrument Panel Finish, Lower Center
|
90183-05018 |
— | ||
|
9046709043
|
9046709043
90467-09043 Clamp, Hood Lock Control Cable |
90467-09043 |
from US $1.56 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9166160614
|
9166160614
91661-60614
Bolt, Back Window Stay
|
91661-60614 |
— | ||
| replacement | |||||
|
9166160614
|
9166160614
90119-06306 Bolt, Back Window Stay |
90119-06306 |
US $1.92 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
