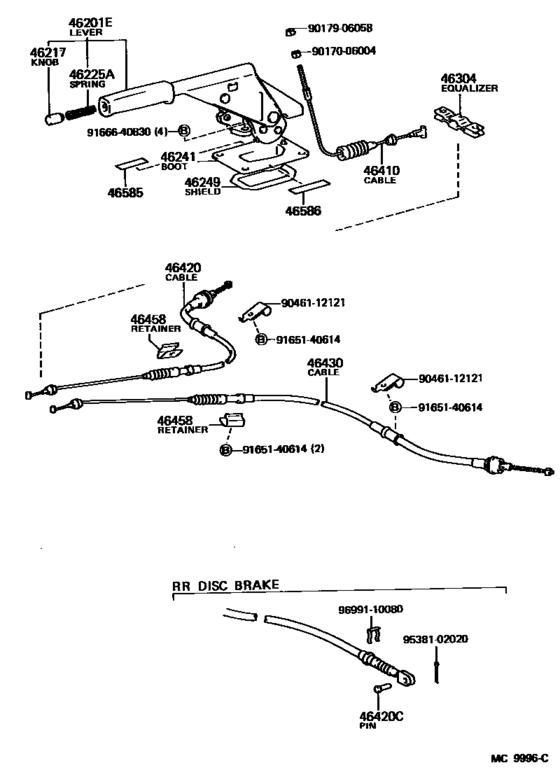

Parking Brake & Cable ([08.1983 - ] (8308- )) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE86
- grade
- DX
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla CP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46201E
|
46201E
46201-14110-01
Lever Sub-Assy, Parking Brake
[08.1983 - 07.1987] AE86..DX,SR5 BLACK,BLACK |
46201-14110-01 |
— | ||
|
46217
|
46217
46217-10020-01
Knob, Parking Brake Release Rod
[08.1983 - 07.1987] AE86 BLACK,BLACK |
46217-10020-01 |
— | ||
| replacement | |||||
|
46217
|
46217
46217-10020-11 Knob, Parking Brake Release Rod (Black)[08.1983 - 07.1987] AE86 BLACK,BLACK |
46217-10020-11 |
from US $4 |
||
|
46225A
|
46225A
90501-10745 Spring, Compression(For Parking Brake Pawl Rod)[08.1983 - 07.1987] AE86 |
90501-10745 |
from US $2.56 |
||
|
46241
|
46241
46241-24010
Boot, Parking Brake Lever
[08.1983 - 07.1987] AE86..DX,SR5 |
46241-24010 |
— | ||
|
46249
|
46249
46249-24010
Shield, Parking Brake Hole
[08.1983 - 07.1987] AE86 |
46249-24010 |
— | ||
|
46304
|
46304
46341-16020
Equalizer Sub-Assy, Parking Brake
[08.1983 - 07.1987] AE86 |
46341-16020 |
— | ||
|
46410
|
46410
46410-12120
Cable Assy, Parking Brake, No.1
[08.1983 - 07.1987] AE86..DX,SR5 |
46410-12120 |
— | ||
|
46420
|
46420
46420-12280
Cable Assy, Parking Brake, No.2
[08.1983 - 07.1987] AE86..DX,SR5 |
46420-12280 |
— | ||
|
46430
|
46430
46430-12180 Cable Assy, Parking Brake, No.3PARKING BRAKE, NO.3 [08.1983 - 07.1987] AE86..DX,SR5 |
46430-12180 |
US $60.72 |
||
|
46458
|
46458
46458-20020
Retainer, Cable
[08.1983 - 07.1987] AE86 |
46458-20020 |
— | ||
| replacement | |||||
|
46458
|
46458
46458-50010 Retainer, Cable[08.1983 - 07.1987] AE86 |
46458-50010 |
from US $5.44 |
||
|
9017006004
|
9017006004
90170-06004 Nut, Wire Adjusting, No.1 |
90170-06004 |
US $2.08 |
||
|
9017906058
|
9017906058
90179-06058
Nut, Wire Adjusting, No.1
|
90179-06058 |
— | ||
| replacement | |||||
|
9017906058
|
9017906058
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9046112121
|
9046112121
90461-12121 Clamp, No.1(For Parking Brake Cable) |
90461-12121 |
US $3.84 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9166640830
|
9166640830
91666-40830
New Genuine Part
|
91666-40830 |
— | ||
| replacement | |||||
|
9166640830
|
9166640830
91661-60830 Bolt |
91661-60830 |
from US $1.44 |
||
|
9538102020
|
9538102020
95381-02020 PIN |
95381-02020 |
US $0.96 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.35 |
||
