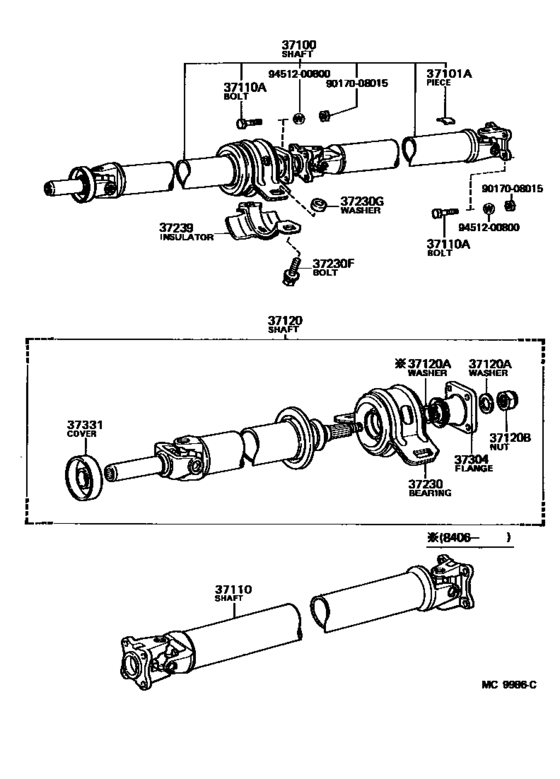

Propeller Shaft & Universal Joint ([08.1983 - ] (8308- )) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE86
- grade
- DX
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla CP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37100
|
37100
37100-12400 Shaft Assy, Propeller W/center BearingPROPELLER W/CENTER BEARING [08.1983 - 07.1987] AE86..2D..4FC |
37100-12400 |
US $1,284.19 |
||
|
37101A
|
37101A
90937-01132 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 07.1987] AE86 10G,L=20.7,10G |
90937-01132 |
US $3.52 |
||
|
37101A
|
37101A
90937-01136 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] AE86 20G,L=41.4,20G |
90937-01136 |
US $3.20 |
||
|
37101A
|
37101A
90937-01140 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] AE86 30G,L=62.2,30G |
90937-01140 |
US $3.49 |
||
|
37101A
|
37101A
90937-01147 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 07.1987] AE86 2G,T=2.0,2G |
90937-01147 |
US $2.04 |
||
|
37101A
|
37101A
90937-01148 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 07.1987] AE86 4G,T=2.0,4G |
90937-01148 |
US $2.24 |
||
|
37101A
|
37101A
90937-01149 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 07.1987] AE86 6G,L=12.4,6G |
90937-01149 |
US $2.24 |
||
|
37101A
|
37101A
90937-01150 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 07.1987] AE86 8G,L=16.6,8G |
90937-01150 |
US $2.24 |
||
|
37101A
|
37101A
90937-01151 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 07.1987] AE86 12G,L=24.9,12G |
90937-01151 |
US $2.40 |
||
|
37101A
|
37101A
90937-01152 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 07.1987] AE86 14G,L=29.0,14G |
90937-01152 |
US $2.24 |
||
|
37101A
|
37101A
90937-01153 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] AE86 16G,L=33.2,16G |
90937-01153 |
US $1.31 |
||
|
37101A
|
37101A
90937-01154 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] AE86 18G,L=37.3,18G |
90937-01154 |
US $1.75 |
||
|
37101A
|
37101A
90937-01155 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] AE86 22G,L=45.6,22G |
90937-01155 |
US $1.75 |
||
|
37101A
|
37101A
90937-01156 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] AE86 24G,L=49.7,24G |
90937-01156 |
US $1.75 |
||
|
37101A
|
37101A
90937-01157 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] AE86 26G,L=53.9,26G |
90937-01157 |
US $1.75 |
||
|
37101A
|
37101A
90937-01158 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] AE86 28G,L=58.1,28G |
90937-01158 |
US $1.75 |
||
|
37110
|
37110
37110-12330 Shaft Assy, Propeller[08.1983 - 07.1987] AE86..2D..5F..(DX,SR5); AE86..2D..4FC |
37110-12330 |
US $595.50 |
||
|
37110A
|
37110A
90101-08082 Bolt, No.1 (For Propeller Shaft & Differential Setting)[08.1983 - 07.1987] AE86 *8-1.25PX25-12,13G |
90101-08082 |
from US $1.09 |
||
|
37110A
|
37110A
90101-08088 Bolt (For Propeller Shaft)[08.1983 - 07.1987] AE86 15G |
90101-08088 |
US $9.03 |
||
|
37110A
|
37110A
90101-08090 Bolt (For Propeller Shaft)[08.1983 - 07.1987] AE86 17G |
90101-08090 |
US $9.17 |
||
|
37110A
|
37110A
90101-08091 Bolt (For Propeller Shaft)[08.1983 - 07.1987] AE86 19G |
90101-08091 |
US $9.17 |
||
|
37120
|
37120
37120-12210 Shaft Assy, Propeller IntermediatePROPELLER INTERMEDIATE [08.1983 - 07.1987] AE86..4FC |
37120-12210 |
US $698.88 |
||
|
37120A
|
37120A
90201-18182 Washer, Plate (For Propeller Intermediate Shaft Set)[08.1983 - 07.1987] AE86 OD=33.5,T=4.0,T=4,OD=33.5 |
90201-18182 |
from US $2.88 |
||
|
37120A
|
37120A
90201-26005 Washer, Plate (For Propeller Intermediate Shaft Set)[06.1984 - 07.1987] AE86 OD=36.6,T=0.8,T=0.8,OD=36.6 |
90201-26005 |
from US $2.72 |
||
|
37120B
|
37120B
90179-18009 Nut (For Propeller Intermediate Shaft Setting)[06.1984 - 07.1987] AE86 |
90179-18009 |
from US $1.72 |
||
|
37120B
|
37120B
90179-18060
Nut (For Propeller Intermediate Shaft Setting)
[08.1983 - 06.1984] AE86 |
90179-18060 |
— | ||
| replacement | |||||
|
37120B
|
37120B
90179-18001 Nut (For Transfer Gear)[08.1983 - 06.1984] AE86 |
90179-18001 |
from US $4 |
||
|
37230
|
37230
37230-12050 Bearing Assy, Center Support, No.1CENTER SUPPORT, NO.1 [08.1983 - 07.1987] AE86 |
37230-12050 |
US $169.92 |
||
|
37230F
|
37230F
90119-10049 Bolt, Center Support Bearing Bracket[08.1983 - 07.1987] AE86 |
90119-10049 |
from US $1.58 |
||
|
37230G
|
37230G
90201-10008 Washer, No.2 (For Center Support Bearing)[08.1983 - 07.1987] AE86 T=4.5 |
90201-10008 |
US $1.76 |
||
|
37239
|
37239
37239-12040
Insulator, Center Support Bearing Heat
[08.1983 - 07.1987] AE86 |
37239-12040 |
— | ||
|
37304
|
37304
37304-22012 Flange Sub-Assy, Universal Joint[08.1983 - 06.1984] AE86 |
37304-22012 |
US $58.53 |
||
| replacement | |||||
|
37304
|
37304
37304-22H00 Flange Sub-Assy, Universal Joint[08.1983 - 06.1984] AE86 |
37304-22H00 |
US $57.95 |
||
|
37304
|
37304
37304-22013
Flange Sub-Assy, Universal Joint
[06.1984 - 07.1987] AE86 |
37304-22013 |
— | ||
| replacement | |||||
|
37304
|
37304
37304-28010 Flange Sub-Assy, Universal Joint[06.1984 - 07.1987] AE86 |
37304-28010 |
US $64.90 |
||
|
37331
|
37331
37331-30010 Cover, Sliding Shaft Dust[08.1983 - 07.1987] AE86..4FC |
37331-30010 |
US $10.48 |
||
|
9017008015
|
9017008015
90170-08015 Nut, No.1 (For Propeller Shaft & Differential Setting) |
90170-08015 |
from US $1.92 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.80 |
||
