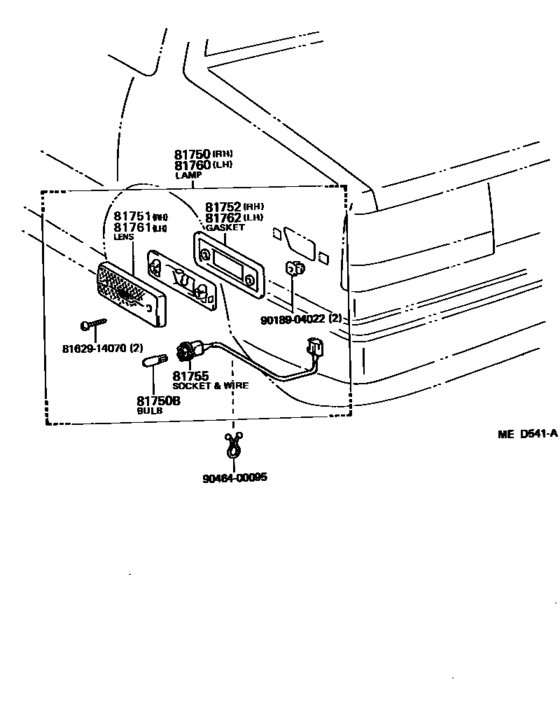

Rear Side Marker Lamp ([08.1983 - ] (8308- )) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE86
- grade
- DX
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla CP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81750
|
81750
81750-19215
Lamp Assy, Rear Side Marker, Rh
[08.1983 - 07.1987] AE86 |
81750-19215 |
— | ||
|
81750B
|
81750B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[08.1983 - 07.1987] AE86 12V 3.8W,12V 3.8W |
90981-11020 |
from US $2.72 |
||
|
81751
|
81751
81751-12110
Lens, Rear Side Marker Lamp, Rh
[08.1983 - 07.1987] AE86 |
81751-12110 |
— | ||
|
81752
|
81752
81752-12110 Gasket, Rear Side Marker Lamp LensREAR SIDE MARKER LAMP BODY, RH [08.1983 - 07.1987] AE86 |
81752-12110 |
US $6.84 |
||
|
81755
|
81755
81755-12120 Socket & Wire Sub-Assy, Rear Side Marker LampREAR SIDE MARKER LAMP [08.1983 - 07.1987] AE86 |
81755-12120 |
US $11.50 |
||
|
81760
|
81760
81760-19165
Lamp Assy, Rear Side Marker, Lh
[08.1983 - 07.1987] AE86 |
81760-19165 |
— | ||
|
81761
|
81761
81761-12110
Lens, Rear Side Marker Lamp, Lh
[08.1983 - 07.1987] AE86 |
81761-12110 |
— | ||
|
81762
|
81762
81752-12110 Gasket, Rear Side Marker Lamp LensREAR SIDE MARKER LAMP BODY, RH [08.1983 - 07.1987] AE86 |
81752-12110 |
US $6.84 |
||
|
8162914070
|
8162914070
81629-14070 New Genuine Part |
81629-14070 |
US $3.04 |
||
|
9018904022
|
9018904022
90189-04022 CLIP |
90189-04022 |
from US $1.12 |
||
|
9046400095
|
9046400095
90464-00095 New Genuine Part |
90464-00095 |
US $1.31 |
