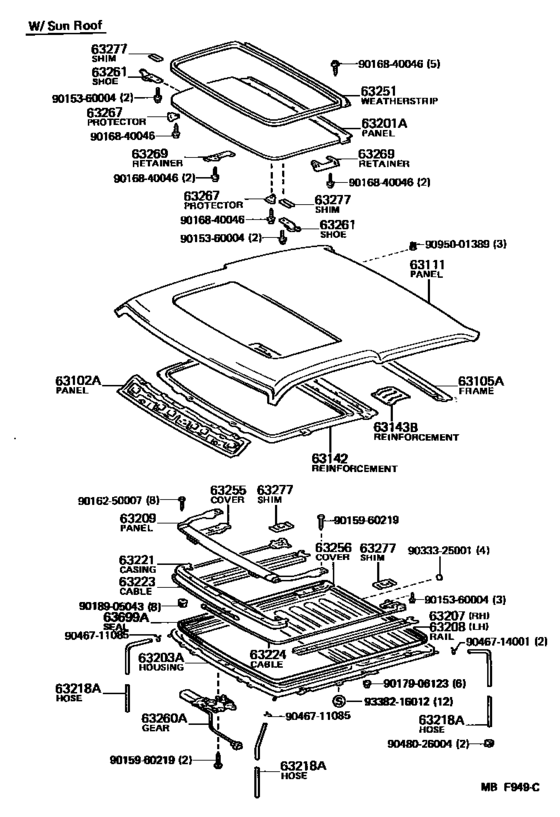

Roof Panel & Back Window Glass ([08.1983 - ] (8308- )) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE86
- grade
- DX
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla CP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63102A
|
63102A
63102-12010
Panel Sub-Assy, Windshield Header
[08.1983 - 07.1987] AE86 |
63102-12010 |
— | ||
|
63105A
|
63105A
63133-12130
Frame Sub-Assy, Back Door Opening
[08.1983 - 07.1987] AE86..2D |
63133-12130 |
— | ||
|
63111
|
63111
63111-12210
Panel, Roof
[08.1983 - 07.1987] AE86..2D |
63111-12210 |
— | ||
|
63111
|
63111
63111-12220
Panel, Roof
[08.1983 - 07.1987] AE86..2D W/SUN ROOF |
63111-12220 |
— | ||
|
63142
|
63142
63142-12010 Reinforcement, Roof Panel, No.2ROOF PANEL, NO.2 [08.1983 - 07.1987] AE86 |
63142-12010 |
US $171.81 |
||
|
63143B
|
63143B
63143-12030 Reinforcement, Roof Panel, No.3ROOF PANEL, NO.3 [08.1983 - 07.1987] AE86..2D |
63143-12030 |
US $27.66 |
||
|
63201A
|
63201A
63201-12090
Panel Sub-Assy, Sliding Roof Or Removable Roof
[08.1983 - 07.1987] AE86 |
63201-12090 |
— | ||
|
63203A
|
63203A
63203-12110 Housing Sub-Assy, Sliding Roof Or Removable Roof[08.1983 - 02.1984] AE86..2D |
63203-12110 |
US $366.91 |
||
| replacement | |||||
|
63203A
|
63203A
63203-12111
Housing Sub-Assy, Sliding Roof Or Removable Roof
[08.1983 - 02.1984] AE86..2D |
63203-12111 |
— | ||
|
63203A
|
63203A
63203-12111
Housing Sub-Assy, Sliding Roof Or Removable Roof
[02.1984 - 07.1987] AE86..2D |
63203-12111 |
— | ||
|
63207
|
63207
63207-12040 Rail Sub-Assy, Sliding Roof Guide, RhSLIDING ROOF GUIDE, RH [08.1983 - 02.1984] AE86 |
63207-12040 |
US $87.36 |
||
|
63207
|
63207
63207-12041 Rail Sub-Assy, Sliding Roof Guide, RhSLIDING ROOF GUIDE, RH [02.1984 - 01.1986] AE86 |
63207-12041 |
US $87.36 |
||
| replacement | |||||
|
63207
|
63207
63207-12042 Rail Sub-Assy, Sliding Roof Guide, RhSLIDING ROOF GUIDE, RH [02.1984 - 01.1986] AE86 |
63207-12042 |
US $85.90 |
||
|
63207
|
63207
63207-12042 Rail Sub-Assy, Sliding Roof Guide, RhSLIDING ROOF GUIDE, RH [01.1986 - 07.1987] AE86 |
63207-12042 |
US $85.90 |
||
|
63208
|
63208
63208-12040 Rail Sub-Assy, Sliding Roof Guide, LhSLIDING ROOF GUIDE, LH [08.1983 - 02.1984] AE86 |
63208-12040 |
US $87.36 |
||
|
63208
|
63208
63208-12041 Rail Sub-Assy, Sliding Roof Guide, LhSLIDING ROOF GUIDE, LH [02.1984 - 01.1986] AE86 |
63208-12041 |
US $87.36 |
||
| replacement | |||||
|
63208
|
63208
63208-12042 Rail Sub-Assy, Sliding Roof Guide, LhSLIDING ROOF GUIDE, LH [02.1984 - 01.1986] AE86 |
63208-12042 |
US $85.90 |
||
|
63208
|
63208
63208-12042 Rail Sub-Assy, Sliding Roof Guide, LhSLIDING ROOF GUIDE, LH [01.1986 - 07.1987] AE86 |
63208-12042 |
US $85.90 |
||
|
63209
|
63209
63209-12020 Panel Sub-Assy, Roof Wind DeflectorROOF WIND DEFLECTOR [08.1983 - 07.1987] AE86 |
63209-12020 |
US $219.86 |
||
|
63218A
|
63218A
63249-12030 Hose(For Sliding Roof Or Removable Roof Drain)[08.1983 - 07.1987] AE86 FR |
63249-12030 |
US $20.53 |
||
|
63218A
|
63218A
63249-12040 Hose(For Sliding Roof Or Removable Roof Drain)[08.1983 - 07.1987] AE86..2D RR |
63249-12040 |
US $11.36 |
||
|
63221
|
63221
63221-12040 Casing, Sliding Roof Cable GuideSLIDING ROOF CABLE GUIDE [08.1983 - 07.1987] AE86 |
63221-12040 |
US $186.37 |
||
|
63223
|
63223
63223-12020
Cable, Sliding Roof Drive, Rh
[08.1983 - 07.1987] AE86 |
63223-12020 |
— | ||
|
63224
|
63224
63224-12010
Cable, Sliding Roof Drive, Lh
[08.1983 - 07.1987] AE86 |
63224-12010 |
— | ||
|
63251
|
63251
63251-12030 Weatherstrip, Sliding Roof Panel Or Removable RoofSLIDING ROOF PANEL OR REMOVABLE ROOF [08.1983 - 07.1987] AE86 |
63251-12030 |
US $195.84 |
||
|
63255
|
63255
63255-12040 Cover, Sliding Roof Guide Rail, RhSLIDING ROOF GUIDE RAIL, RH [08.1983 - 07.1987] AE86 |
63255-12040 |
US $15.87 |
||
|
63256
|
63256
63255-12040 Cover, Sliding Roof Guide Rail, RhSLIDING ROOF GUIDE RAIL, RH [08.1983 - 07.1987] AE86 |
63255-12040 |
US $15.87 |
||
|
63260A
|
63260A
63260-12050 Gear Sub-Assy, Sliding Roof DriveSLIDING ROOF DRIVE [08.1983 - 07.1987] AE86 |
63260-12050 |
US $573.66 |
||
|
63261
|
63261
63261-12020 Shoe, Sliding Roof, Front[08.1983 - 07.1987] AE86 RH |
63261-12020 |
US $15.87 |
||
|
63261
|
63261
63262-12020 Shoe, Sliding Roof, Front[08.1983 - 07.1987] AE86 LH |
63262-12020 |
US $15.87 |
||
|
63267
|
63267
63267-14010 Protector, Sliding Roof Weatherstrip[11.1984 - 07.1987] AE86 RH |
63267-14010 |
US $7.72 |
||
|
63267
|
63267
63267-20010 Protector, Sliding Roof Weatherstrip[08.1983 - 11.1984] AE86 RH |
63267-20010 |
US $7.13 |
||
| replacement | |||||
|
63267
|
63267
63267-14010 Protector, Sliding Roof Weatherstrip[08.1983 - 11.1984] AE86 RH |
63267-14010 |
US $7.72 |
||
|
63267
|
63267
63268-14020 Protector, Sliding Roof Weatherstrip[11.1984 - 07.1987] AE86 LH |
63268-14020 |
US $7.72 |
||
|
63267
|
63267
63268-20010 Protector, Sliding Roof Weatherstrip[08.1983 - 11.1984] AE86 LH |
63268-20010 |
US $7.13 |
||
| replacement | |||||
|
63267
|
63267
63268-14020 Protector, Sliding Roof Weatherstrip[08.1983 - 11.1984] AE86 LH |
63268-14020 |
US $7.72 |
||
|
63269
|
63269
63269-20010 Retainer, Sliding Roof Weatherstrip[08.1983 - 07.1987] AE86 RH |
63269-20010 |
US $9.17 |
||
|
63269
|
63269
63279-20010 Retainer, Sliding Roof Weatherstrip[08.1983 - 07.1987] AE86 LH |
63279-20010 |
US $9.17 |
||
|
63277
|
63277
63277-14020
Shim, Sliding Roof Rail
[08.1983 - 07.1987] AE86 48X28 |
63277-14020 |
— | ||
|
63277
|
63277
63277-20010 Shim, Sliding Roof Rail[08.1983 - 07.1987] AE86 91.5X55 |
63277-20010 |
US $10.05 |
||
|
63699A
|
63699A
63699-12020 Seal, Sliding Roof Guide RailSLIDING ROOF GUIDE RAIL [08.1983 - 07.1987] AE86 |
63699-12020 |
US $21.99 |
||
| replacement | |||||
|
63699A
|
63699A
63699-12040
Seal, Sliding Roof Guide Rail
[08.1983 - 07.1987] AE86 |
63699-12040 |
— | ||
|
9015360004
|
9015360004
90153-60004
New Genuine Part
|
90153-60004 |
— | ||
|
9015960219
|
9015960219
90159-60219
New Genuine Part
|
90159-60219 |
— | ||
|
9016250007
|
9016250007
90162-50007
New Genuine Part
|
90162-50007 |
— | ||
|
9016840046
|
9016840046
90168-40046 New Genuine Part |
90168-40046 |
US $1.75 |
||
|
9017906123
|
9017906123
90179-06123 Nut, Rear Wiper Link Pivot, No.1 |
90179-06123 |
US $1.75 |
||
| replacement | |||||
|
9017906123
|
9017906123
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9018905043
|
9018905043
90189-05043 Clip, Rear Door Service Hole |
90189-05043 |
US $1.60 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.41 |
||
|
9046711085
|
9046711085
90467-11085 Clamp Or Clip(For Radiator Breather Hose) |
90467-11085 |
from US $0.78 |
||
|
9046714001
|
9046714001
90467-14001 Clip Or Clamp(For Ventilation Hose) |
90467-14001 |
from US $0.76 |
||
| replacement | |||||
|
9046714001
|
9046714001
90466-T0026
Clip Or Clamp(For Ventilation Hose)
|
90466-T0026 |
— | ||
|
9048026004
|
9048026004
90480-26004 Grommet, Heater Hose |
90480-26004 |
US $1.40 |
||
|
9095001389
|
9095001389
90950-01389 New Genuine Part |
90950-01389 |
US $2.77 |
||
|
9338216012
|
9338216012
93382-16012 New Genuine Part |
93382-16012 |
US $0.52 |
||
