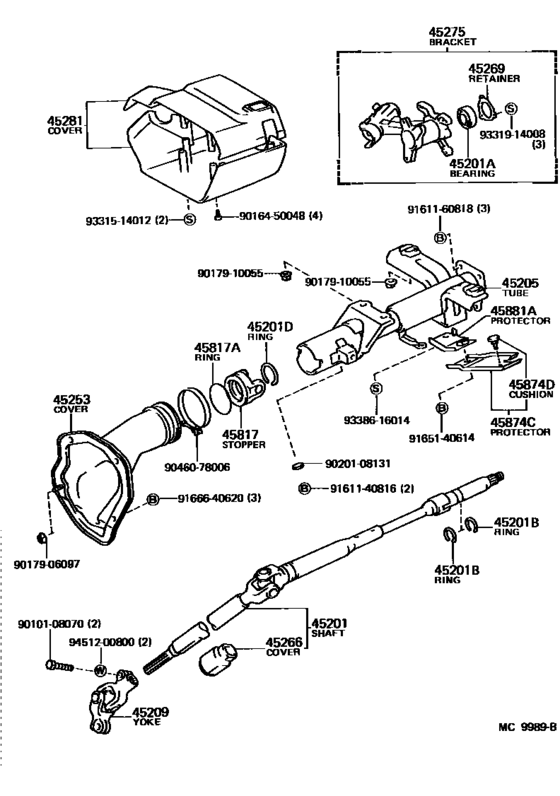

Steering Column & Shaft ([08.1983 - ] (8308- )DX,SR5) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE86
- grade
- DX
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla CP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45201
|
45201
45210-12260 Shaft Sub-Assy, Steering MainSTEERING MAIN [08.1983 - 07.1987] AE86 |
45210-12260 |
US $291.20 |
||
|
45201
|
45201
45210-12270
Shaft Sub-Assy, Steering Main
[08.1983 - 07.1987] AE86 W/POWER STEERING |
45210-12270 |
— | ||
|
45201A
|
45201A
90363-18038 Bearing(For Steering Main Shaft)[08.1983 - 07.1987] AE86 |
90363-18038 |
US $10.56 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[08.1983 - 07.1987] AE86 T=1.20,T=1.2 |
90520-17042 |
from US $0.86 |
||
|
45201B
|
45201B
90520-17196 Ring, Shaft Snap(For Steering Main Shaft)[08.1983 - 07.1987] AE86 T=1.35-1.45,T=1.4 |
90520-17196 |
US $2.97 |
||
|
45201D
|
45201D
96152-00300 Ring, Hole Snap (For Differential Side Gear Shaft)[08.1983 - 07.1987] AE86 |
96152-00300 |
US $0.70 |
||
|
45205
|
45205
45870-12220 Tube Sub-Assy, Steering ColumnSTEERING COLUMN [08.1983 - 07.1987] AE86..DX,SR5 |
45870-12220 |
US $116.48 |
||
|
45205
|
45205
45870-12230 Tube Sub-Assy, Steering ColumnSTEERING COLUMN [08.1983 - 08.1985] AE86 W/TILT STEERING |
45870-12230 |
US $116.48 |
||
|
45209
|
45209
45209-32010
Yoke Sub-Assy, Steering Sliding
[08.1983 - 07.1987] AE86 |
45209-32010 |
— | ||
| replacement | |||||
|
45209
|
45209
45209-10020 Yoke Sub-Assy, Steering Sliding[08.1983 - 07.1987] AE86 |
45209-10020 |
US $121.36 |
||
|
45209
|
45209
45209-32020
Yoke Sub-Assy, Steering Sliding
[08.1983 - 07.1987] AE86 W/POWER STEERING |
45209-32020 |
— | ||
| replacement | |||||
|
45209
|
45209
45209-16010 Yoke Sub-Assy, Steering Sliding[08.1983 - 07.1987] AE86 W/POWER STEERING |
45209-16010 |
US $137.64 |
||
|
45253
|
45253
45025-12150
Cover, Steering Column Hole
[08.1983 - 07.1987] AE86 |
45025-12150 |
— | ||
|
45266
|
45266
45266-12020 Cover, Steering Intermediate Shaft Dust[08.1983 - 07.1987] AE86 |
45266-12020 |
US $5.94 |
||
|
45269
|
45269
45269-10010 Retainer, Main Shaft Bearing[08.1983 - 07.1987] AE86 |
45269-10010 |
US $6.41 |
||
|
45275
|
45275
45280-12050
Bracket, Steering Column, Upper
[08.1983 - 12.1986] AE86 |
45280-12050 |
— | ||
|
45275
|
45275
45280-12052 Bracket, Steering Column, UpperSTEERING COLUMN, UPPER [12.1986 - 07.1987] AE86 |
45280-12052 |
US $224.22 |
||
|
45281
|
45281
45286-12931 Housing, Steering ColumnSTEERING COLUMN [08.1983 - 07.1987] AE86..DX,SR5 |
45286-12931 |
US $82.99 |
||
|
45281
|
45281
45286-12932 Housing, Steering ColumnSTEERING COLUMN [08.1983 - 08.1985] AE86 W/*TIS |
45286-12932 |
US $72.65 |
||
| replacement | |||||
|
45281
|
45281
45286-12938-11
Housing, Steering Column
[08.1983 - 08.1985] AE86 W/*TIS |
45286-12938-11 |
— | ||
|
45281
|
45281
45286-12937 Housing, Steering ColumnSTEERING COLUMN [01.1984 - 07.1987] AE86..DX,SR5 W/CRUISE CONTROL |
45286-12937 |
US $72.36 |
||
|
45281
|
45281
45286-12938 Housing, Steering ColumnSTEERING COLUMN [01.1984 - 08.1985] AE86 W/CRUISE CONTROL & *TIS |
45286-12938 |
US $57.51 |
||
| replacement | |||||
|
45281
|
45281
45286-12938-11
Housing, Steering Column
[01.1984 - 08.1985] AE86 W/CRUISE CONTROL & *TIS |
45286-12938-11 |
— | ||
|
45817
|
45817
45808-20020
Stopper, Steering Shaft Thrust
[08.1983 - 07.1987] AE86 |
45808-20020 |
— | ||
| replacement | |||||
|
45817
|
45817
45808-20030
Stopper Sub-Assy, Steering Shaft Thrust
[08.1983 - 07.1987] AE86 |
45808-20030 |
— | ||
|
45817A
|
45817A
90301-54002
Ring, O(For Input Front)
[11.1985 - 07.1987] AE86 |
90301-54002 |
— | ||
|
45817A
|
45817A
96711-24056
Ring, O(For Steering Shaft Thrust Stopper)
[08.1983 - 11.1985] AE86 |
96711-24056 |
— | ||
|
45874C
|
45874C
45802-12010
Protector, Steering Column, No.1
[08.1983 - 07.1987] AE86..(DX,SR5)..USA |
45802-12010 |
— | ||
|
45874D
|
45874D
90541-06008 Cushion, No.1(For Clutch Pedal)[11.1983 - 07.1987] AE86..(DX,SR5)..USA |
90541-06008 |
from US $1.60 |
||
|
45881A
|
45881A
45881-12020
Protector, Steering Column, No.2
[08.1983 - 07.1987] AE86..(DX,SR5)..USA |
45881-12020 |
— | ||
|
9010108070
|
9010108070
90101-08070
Bolt, Hexagon
|
90101-08070 |
— | ||
| replacement | |||||
|
9010108070
|
9010108070
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.88 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9017910055
|
9017910055
90179-10055 NUT |
90179-10055 |
US $2.62 |
||
|
9020108131
|
9020108131
90201-08131 WASHER |
90201-08131 |
US $1.89 |
||
|
9046078006
|
9046078006
90460-78006
Clamp(For Air Cleaner Hose, No.1)
|
90460-78006 |
— | ||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161160818
|
9161160818
91611-60818
Bolt(For Oil Receiver Pipe)
|
91611-60818 |
— | ||
| replacement | |||||
|
9161160818
|
9161160818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.60 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9166640620
|
9166640620
91666-40620
New Genuine Part
|
91666-40620 |
— | ||
| replacement | |||||
|
9166640620
|
9166640620
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.28 |
||
|
9338616014
|
9338616014
93386-16014 New Genuine Part |
93386-16014 |
US $1.16 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
