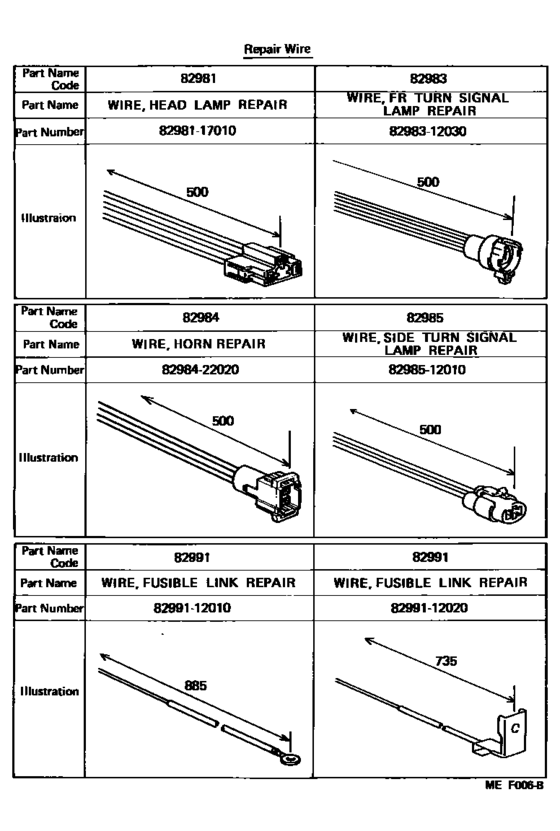

Wiring & Clamp ([08.1983 - ] (8308- )) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE86
- grade
- DX
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla CP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82981
|
82981
82981-17010 Wire, Headlamp Repair[08.1983 - 07.1987] AE86 |
82981-17010 |
US $28.80 |
||
|
82983
|
82983
82983-12030
Wire, Front Turn Signal Lamp Repair
[08.1983 - 07.1987] AE86 |
82983-12030 |
— | ||
|
82984
|
82984
82984-22020 Wire, Horn RepairHORN REPAIR [08.1983 - 07.1987] AE86 |
82984-22020 |
US $69.45 |
||
|
82985
|
82985
82985-12010 Wire, Clearance Lamp Repair[08.1983 - 07.1987] AE86 |
82985-12010 |
US $3.79 |
||
|
82991
|
82991
82991-12020 Wire, Fusible Link RepairFUSIBLE LINK REPAIR [08.1983 - 07.1987] AE86..DX,SR5 |
82991-12020 |
US $37.27 |
||
|
8298117010
|
8298117010
82981-17010 Wire, Headlamp Repair |
82981-17010 |
US $28.80 |
||
|
8298312030
|
8298312030
82983-12030
Wire, Front Turn Signal Lamp Repair
|
82983-12030 |
— | ||
|
8298422020
|
8298422020
82984-22020 Wire, Horn RepairHORN REPAIR |
82984-22020 |
US $69.45 |
||
|
8298512010
|
8298512010
82985-12010 Wire, Clearance Lamp Repair |
82985-12010 |
US $3.79 |
||
|
8299112010
|
8299112010
82991-12010 Wire, Fusible Link RepairFUSIBLE LINK REPAIR |
82991-12010 |
US $7.13 |
||
|
8299112020
|
8299112020
82991-12020 Wire, Fusible Link RepairFUSIBLE LINK REPAIR |
82991-12020 |
US $37.27 |
