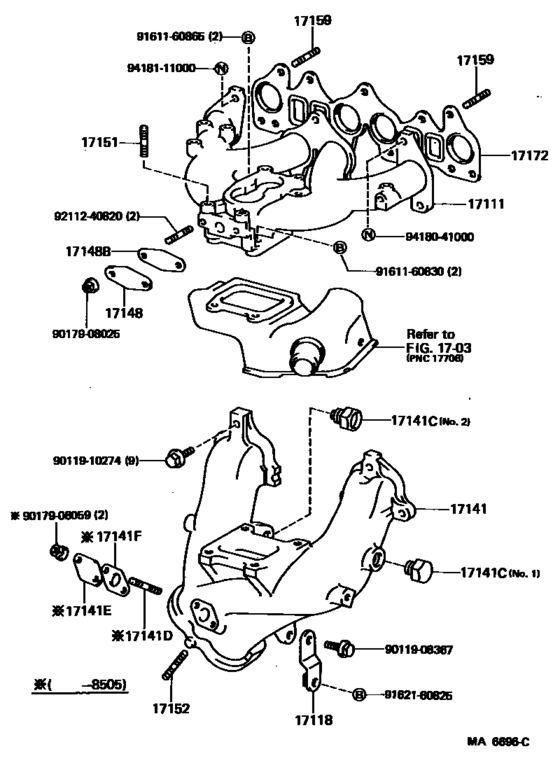

Manifold ([05.1983 - ] (8305- )4A) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Europe
- Frame
- AE86
- grade
- SR
- ENGINE
- 4A
- TRANSMISSION
- ATM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1983
- To
- 04.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-16010 Manifold, IntakeINTAKE [05.1983 - 04.1987] 4A,4AC..AE86 |
17111-16010 |
US $248.98 |
||
|
17118
|
17118
17118-15030 Stay, Manifold[05.1983 - 04.1987] 4A,4AC..AE86 |
17118-15030 |
US $11.79 |
||
|
17141
|
17141
17141-16060
Manifold, Exhaust
[05.1983 - 05.1985] 4A..AE86 |
17141-16060 |
— | ||
|
17141
|
17141
17141-16061 Manifold, ExhaustEXHAUST [05.1985 - 04.1987] 4A..AE86 |
17141-16061 |
US $384.38 |
||
|
17141C
|
17141C
90341-20086 Plug, W/head Straight Screw[05.1983 - 04.1987] 4A..AE86 NO.1 |
90341-20086 |
US $5.39 |
||
|
17141C
|
17141C
90341-24004 Plug, W/head Straight ScrewW/HEAD STRAIGHT SCREW [05.1983 - 04.1987] 4A..AE86 NO.2 |
90341-24004 |
US $7.28 |
||
|
17141D
|
17141D
90116-08128 Bolt, Stud(For Manifold Stay)[05.1983 - 05.1985] 4A..AE86 |
90116-08128 |
US $4.16 |
||
|
17141E
|
17141E
17148-16010
Plate, Exhaust Manifold
[05.1983 - 05.1985] 4A..AE86 |
17148-16010 |
— | ||
|
17141F
|
17141F
89466-32010 Gasket, Oxygen Sensor[05.1983 - 05.1985] 4A..AE86 |
89466-32010 |
US $10.48 |
||
| replacement | |||||
|
17141F
|
17141F
89466-30030 Gasket, Oxygen Sensor[05.1983 - 05.1985] 4A..AE86 |
89466-30030 |
US $13.10 |
||
|
17148
|
17148
25617-14010 Plate, Exhaust Manifold(For Egr Inlet)EXHAUST MANIFOLD(FOR EGR INLET) [05.1983 - 04.1987] 4A..AE86 |
25617-14010 |
US $5.24 |
||
|
17148B
|
17148B
25629-15011 Gasket, Egr Valve Adapter[05.1983 - 04.1987] 4A..AE86 |
25629-15011 |
US $2.77 |
||
|
17151
|
17151
92112-40832 Bolt, Stud(For Manifold To Carburetor)[05.1983 - 10.1983] 4A..AE86 |
92112-40832 |
US $2.48 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[05.1983 - 07.1987] 4A,4AC,4AG#..AE86 |
90116-10058 |
from US $2.44 |
||
|
17159
|
17159
92112-61032 Bolt, Stud(For Manifold To Cylinder Head)[05.1983 - 04.1987] 4A,4AC..AE86 L=44,S=12 & 20 |
92112-61032 |
US $3.06 |
||
|
17172
|
17172
17172-14010 Gasket, Manifold To Cylinder HeadMANIFOLD TO CYLINDER HEAD [05.1983 - 04.1987] 4A,4AC..AE86 |
17172-14010 |
US $17.76 |
||
| replacement | |||||
|
17172
|
17172
17172-14011 Gasket, Manifold To Cylinder Head[05.1983 - 04.1987] 4A,4AC..AE86 |
17172-14011 |
US $15.72 |
||
|
9011908367
|
9011908367
90119-08367 New Genuine Part |
90119-08367 |
US $2.33 |
||
| replacement | |||||
|
9011908367
|
9011908367
90119-08766 BOLT WWASHER |
90119-08766 |
US $1.22 |
||
|
9011910274
|
9011910274
90119-10274 New Genuine Part |
90119-10274 |
US $2.62 |
||
| replacement | |||||
|
9011910274
|
9011910274
90119-10038 New Genuine Part |
90119-10038 |
US $5.76 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.92 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9161160830
|
9161160830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.50 |
||
|
9161160865
|
9161160865
91611-60865 Bolt(For Rocker Support Set) |
91611-60865 |
US $1.92 |
||
|
9162160825
|
9162160825
91621-60825 BOLT |
91621-60825 |
US $1.93 |
||
| replacement | |||||
|
9162160825
|
9162160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.88 |
||
|
9211240820
|
9211240820
92112-40820 Bolt, Stud(For Manifold To Venturi) |
92112-40820 |
US $1.05 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.42 |
||
|
9418111000
|
9418111000
94181-11000 Nut(For Backing Plate To Rear Axle Housing Setting) |
94181-11000 |
US $2.88 |
||
