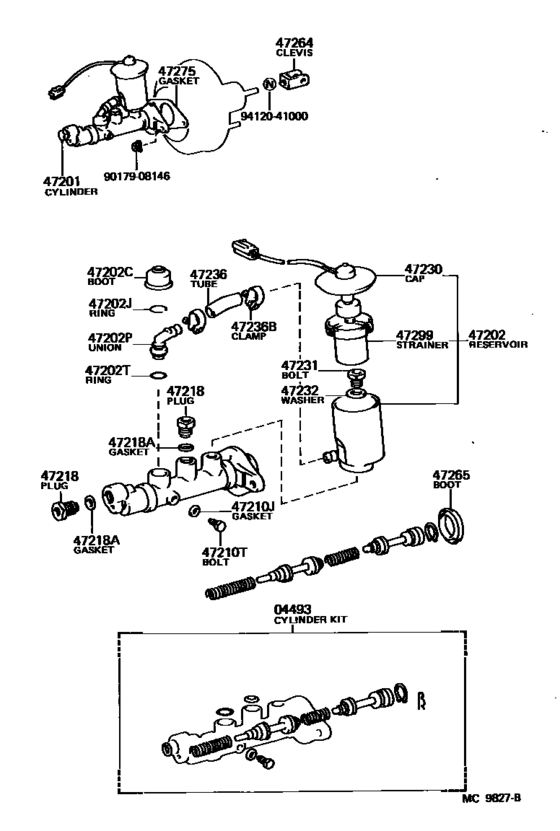

Brake Master Cylinder ([05.1983 - ] (8305- )RHD) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Europe
- Frame
- AE86
- grade
- GT
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 08.1983
- To
- 04.1987
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- RHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-12120 Cylinder Kit, Brake MasterBRAKE MASTER [05.1983 - 05.1985] AE86 |
04493-12120 |
US $99.16 |
||
|
47201
|
47201
47201-12340 Cylinder Sub-Assy, Brake MasterBRAKE MASTER [05.1983 - 05.1985] AE86..RHD |
47201-12340 |
US $416.42 |
||
|
47202
|
47202
47202-12240 Reservoir Sub-Assy, Brake Master CylinderBRAKE MASTER CYLINDER(FOR REAR SIDE) [05.1983 - 04.1987] AE86..RHD |
47202-12240 |
US $179.09 |
||
|
47202C
|
47202C
47265-20060
Boot, Reservoir, No.1(For Brake Master Cylinder Side)
[05.1983 - 07.1987] AE86 |
47265-20060 |
— | ||
|
47202J
|
47202J
96151-02000 Ring, Snap (For Low Coast Shift Control Valve)[05.1983 - 07.1987] AE86 |
96151-02000 |
US $1.27 |
||
|
47202P
|
47202P
90407-10003
Union, Reservoir(For Brake Master Cylinder Side)
[05.1983 - 07.1987] AE86 |
90407-10003 |
— | ||
| replacement | |||||
|
47202P
|
47202P
90407-10004
Union, Reservoir(For Brake Master Cylinder Side)
[05.1983 - 07.1987] AE86 |
90407-10004 |
— | ||
|
47202T
|
47202T
90301-14001 Ring, O(For Clutch Master Cylinder Union)[05.1983 - 07.1987] AE86 |
90301-14001 |
US $3.67 |
||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[05.1983 - 07.1987] AE86 |
90430-06104 |
from US $1.60 |
||
|
47210T
|
47210T
90109-06008 Bolt(For Brake Master Cylinder)[05.1983 - 07.1987] AE86 |
90109-06008 |
US $0.44 |
||
|
47218
|
47218
47218-12040
Plug, Master Cylinder Fluid Outlet
[05.1983 - 07.1987] AE86 |
47218-12040 |
— | ||
|
47218A
|
47218A
90430-09253
Gasket(For Clutch Master Cylinder Accumulator)
[05.1983 - 07.1987] AE86 |
90430-09253 |
— | ||
|
47230
|
47230
84460-20051
Cap Assy, Brake Master Cylinder Reservoir Filler
[05.1983 - 04.1987] AE86..RHD |
84460-20051 |
— | ||
| replacement | |||||
|
47230
|
47230
84460-12011 Cap Assy, Brake Master Cylinder Reservoir Filler[05.1983 - 04.1987] AE86..RHD |
84460-12011 |
US $75.48 |
||
|
47231
|
47231
47231-30010 Bolt, Clutch Master Cylinder Reservoir Set[05.1983 - 07.1987] AE86 |
47231-30010 |
US $4.48 |
||
|
47232
|
47232
47232-30010 Washer, Reservoir Set Bolt[05.1983 - 07.1987] AE86 |
47232-30010 |
US $3.52 |
||
|
47236
|
47236
47234-14010 Tube, Reservoir, No.1[05.1983 - 07.1987] AE86 |
47234-14010 |
US $9.09 |
||
|
47236B
|
47236B
90460-16069
Clip(For Reservoir Tube)
[05.1983 - 04.1987] AE86..RHD |
90460-16069 |
— | ||
|
47264
|
47264
47264-22010 Clevis, Master Cylinder Push Rod[05.1983 - 07.1987] AE86 |
47264-22010 |
US $6.12 |
||
|
47265
|
47265
47265-20050 Boot, Clutch Master Cylinder[05.1983 - 07.1987] AE86 |
47265-20050 |
from US $4.80 |
||
|
47275
|
47275
47275-14010
Gasket, Clutch Master Cylinder
[05.1983 - 07.1987] AE86 |
47275-14010 |
— | ||
| replacement | |||||
|
47275
|
47275
47275-26010 Gasket, Brake Master Cylinder[05.1983 - 07.1987] AE86 |
47275-26010 |
from US $3.52 |
||
|
47299
|
47299
47299-14010
Strainer, Brake Master Cylinder Reservoir
[05.1983 - 07.1987] AE86 |
47299-14010 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
