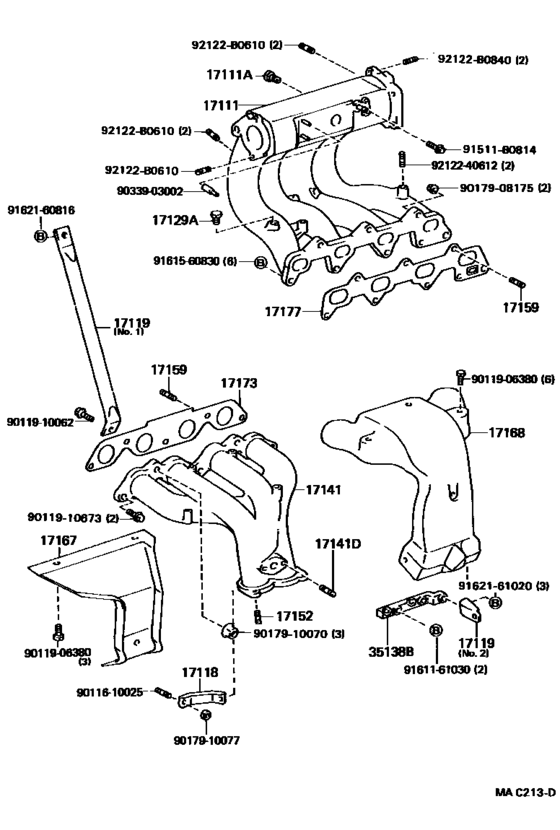

Manifold ([05.1989 - ] (8905- )5AFHE) Diagram Toyota COROLLA
- Year
- 1989 - 1991
- Sales region
- Japan
- Frame
- AE91
- ENGINE
- 5AFHE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1989
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-15050 Manifold, Intake[05.1989 - 06.1991] 5AFHE..AE91 |
17101-15050 |
US $554.74 |
||
|
17111A
|
17111A
90345-51006 Plug, W/head Taper Screw, No.2[05.1989 - 06.1991] 5AF#..AE91 |
90345-51006 |
from US $0.96 |
||
|
17118
|
17118
17118-16040 Stay, Manifold[05.1989 - 06.1991] 5AFHE..AE91 |
17118-16040 |
US $21.84 |
||
|
17119
|
17119
17139-16030
Stay, Manifold, No.2
[05.1989 - 06.1991] 5AFHE..AE91 ＮＯ．１ |
17139-16030 |
— | ||
|
17119
|
17119
17139-16040 Stay, Manifold[05.1989 - 06.1991] 5AFHE..AE91 NO.2 |
17139-16040 |
US $23.88 |
||
|
17129A
|
17129A
90345-51006 Plug, W/head Taper Screw, No.2[05.1989 - 06.1991] 5AF#..AE91 |
90345-51006 |
from US $0.96 |
||
|
17141
|
17141
17141-15130 Manifold, Exhaust[05.1989 - 06.1991] 5AFHE..AE91 |
17141-15130 |
US $337.79 |
||
|
17141D
|
17141D
90116-08168 Bolt, Stud(For Oxygen Sensor)[05.1989 - 06.1991] 4AG#,5AFHE..AE9# |
90116-08168 |
US $2.56 |
||
|
17152
|
17152
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1989 - 08.1989] 5AFHE..AE91 |
90116-10146 |
from US $1.91 |
||
|
17159
|
17159
92112-60825 Bolt, Stud(For Oil Filter)[05.1987 - 06.1991] 5AF#..AE91 INTAKE MANIFOLD |
92112-60825 |
from US $1.56 |
||
|
17159
|
17159
92112-61028 Bolt, Stud(For Manifold To Cylinder Head)[07.1989 - 06.1991] 5AF#..AE91 EXHAUST MANIFOLD |
92112-61028 |
US $3.84 |
||
|
17159
|
17159
92112-61032 Bolt, Stud(For Manifold To Cylinder Head)[05.1987 - 07.1989] 5AF#..AE91 EXHAUST MANIFOLD |
92112-61032 |
US $3.06 |
||
|
17167
|
17167
17167-16050
Insulator, Exhaust Manifold Heat, No.1
[05.1987 - 06.1991] 4AG#,5AFHE..AE9# |
17167-16050 |
— | ||
|
17168
|
17168
17168-15020 Insulator, Exhaust Manifold Heat, No.2[05.1989 - 06.1991] 5AFHE..AE91 |
17168-15020 |
US $100.46 |
||
|
17173
|
17173
17173-15010 Gasket, Exhaust Manifold To Head[05.1987 - 12.1989] 5AF#..AE91 |
17173-15010 |
US $28.25 |
||
| replacement | |||||
|
17173
|
17173
17173-15011 Gasket, Exhaust Manifold To Head[05.1987 - 12.1989] 5AF#..AE91 |
17173-15011 |
from US $20.34 |
||
|
17173
|
17173
17173-15011 Gasket, Exhaust Manifold To Head[12.1989 - 06.1991] 5AF#..AE91 |
17173-15011 |
from US $20.34 |
||
|
17177
|
17177
17171-16030
Gasket, Intake Manifold To Head, No.1
[05.1987 - 12.1989] 5AFE,5AFHE..AE91..ZI,ZS |
17171-16030 |
— | ||
| replacement | |||||
|
17177
|
17177
17171-16031 Gasket, Intake Manifold To Head, No.1[05.1987 - 12.1989] 5AFE,5AFHE..AE91..ZI,ZS |
17171-16031 |
from US $9.63 |
||
|
17177
|
17177
17171-16031 Gasket, Intake Manifold To Head, No.1[12.1989 - 06.1991] 5AFHE..AE91 |
17171-16031 |
from US $9.63 |
||
|
35138B
|
35138B
35138-12020 Adapter, Stiffener Plate[05.1987 - 06.1991] AE9#..GT,GTAPX,GTV,GTZ,ZS |
35138-12020 |
US $61.01 |
||
|
91511B0814
|
91511B0814
91511-B0814 BOLT |
91511-B0814 |
US $1.60 |
||
|
92122B0610
|
92122B0610
92122-B0610 New Genuine Part |
92122-B0610 |
US $1.75 |
||
|
92122B0840
|
92122B0840
92122-B0840 New Genuine Part |
92122-B0840 |
US $1.02 |
||
|
9011610025
|
9011610025
90116-10025 Bolt, Stud(For Manifold To Cylinder Head) |
90116-10025 |
from US $1.70 |
||
|
9011906380
|
9011906380
90119-06380
New Genuine Part
|
90119-06380 |
— | ||
| replacement | |||||
|
9011906380
|
9011906380
90119-06817 BOLT WWASHER |
90119-06817 |
US $1.12 |
||
|
9011910062
|
9011910062
90119-10062
New Genuine Part
|
90119-10062 |
— | ||
| replacement | |||||
|
9011910062
|
9011910062
90119-10640 New Genuine Part |
90119-10640 |
US $4 |
||
|
9011910673
|
9011910673
90119-10673
New Genuine Part
|
90119-10673 |
— | ||
|
9017908175
|
9017908175
90179-08175 New Genuine Part |
90179-08175 |
US $1.44 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.40 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9017910077
|
9017910077
90179-10077 Nut (For Front Lower Ball Joint Setting) |
90179-10077 |
US $2.77 |
||
| replacement | |||||
|
9017910077
|
9017910077
90179-10088 Nut |
90179-10088 |
from US $1.07 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
US $2.88 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9161560830
|
9161560830
91615-60830 Bolt(For Clutch Release Cylinder Setting) |
91615-60830 |
US $2.33 |
||
| replacement | |||||
|
9161560830
|
9161560830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.50 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.90 |
||
|
9162161020
|
9162161020
91621-61020
Bolt(For Transaxle & Engine Setting)
|
91621-61020 |
— | ||
| replacement | |||||
|
9162161020
|
9162161020
91622-B1020 Bolt(For Transaxle & Engine Setting) |
91622-B1020 |
US $1.92 |
||
|
9212240612
|
9212240612
92122-40612 Bolt, Stud(For Cold Start Injector) |
92122-40612 |
US $1.89 |
||
