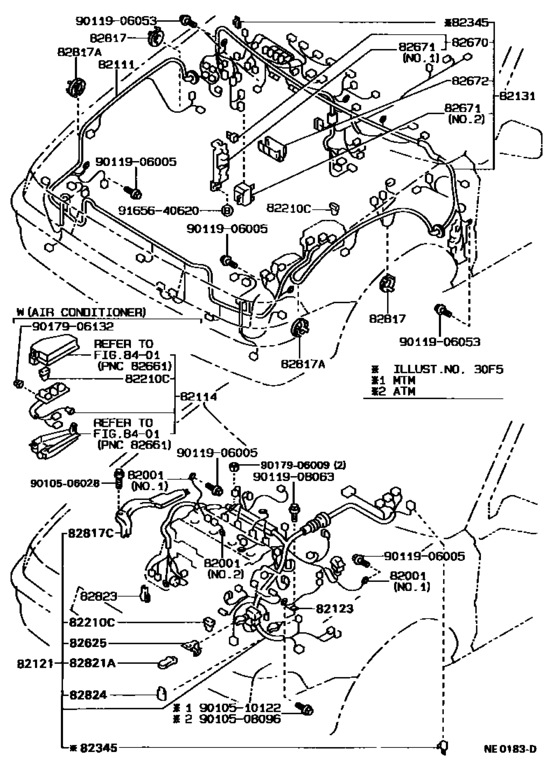

Wiring & Clamp ([05.1989 - ] (8705-8905)AE91..EFI ; (8905- )AE91) Diagram Toyota COROLLA
- Year
- 1989 - 1991
- Sales region
- Japan
- Frame
- AE91
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1989
- To
- 06.1991
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07206 Cable, Bond, No.1[05.1987 - 06.1991] AE9# ＮＯ．１ |
90980-07206 |
US $8.56 |
||
|
82001
|
82001
90980-07299 Cable, Bond, No.1[09.1987 - 06.1991] AE91 ＮＯ．２ |
90980-07299 |
US $6.46 |
||
|
82111
|
82111
82111-1A870 Wire, Engine Room Main[05.1989 - 06.1991] AE91..EFI |
82111-1A870 |
US $620.26 |
||
|
82114
|
82114
82114-12040
Wire, Engine Room, No.4
[05.1989 - 06.1991] AE91..EFI |
82114-12040 |
— | ||
|
82121
|
82121
82121-1E170 Wire, Engine[05.1989 - 02.1990] AE91..ATM..EFI |
82121-1E170 |
US $569.30 |
||
| replacement | |||||
|
82121
|
82121
82121-1E171 Wire, Engine[05.1989 - 02.1990] AE91..ATM..EFI |
82121-1E171 |
US $564.93 |
||
|
82121
|
82121
82121-1E171 Wire, Engine[02.1990 - 06.1991] AE91..ATM..EFI |
82121-1E171 |
US $564.93 |
||
|
82123
|
82123
82123-12160 Wire, Engine, No.3[05.1987 - 06.1991] AE9#..4FC,5F |
82123-12160 |
US $43.10 |
||
|
82131
|
82131
82131-1K330 Wire, Cowl[05.1989 - 06.1991] AE91..G |
82131-1K330 |
US $1,237.60 |
||
|
82210C
|
82210C
90982-08188 Fusible Link[05.1989 - 06.1991] AE9# ３０Ａ，メス端子 |
90982-08188 |
from US $5.13 |
||
|
82210C
|
82210C
90982-08189 Fusible Link[05.1987 - 06.1991] AE9#..EFI,EFIS,SPC ４０Ａ，メス端子 |
90982-08189 |
US $7.04 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[12.1989 - 06.1991] AE9# ８０Ａ，オス端子 |
90982-08203 |
from US $7.36 |
||
|
82210C
|
82210C
90982-08223 Fusible Link[10.1987 - 06.1991] AE9# ３０Ａ，オス端子 |
90982-08223 |
US $11.36 |
||
|
82210C
|
82210C
90982-08253
Fusible Link
[05.1989 - 12.1989] AE9# ８０Ａ，オス端子 |
90982-08253 |
— | ||
| replacement | |||||
|
82210C
|
82210C
90982-08203 Fusible Link[05.1989 - 12.1989] AE9# ８０Ａ，オス端子 |
90982-08203 |
from US $7.36 |
||
|
82345
|
82345
82345-12050 Diode[05.1989 - 06.1991] AE9#..G,GT,L,ZS;AE92..5F..GTAPX NO.3 |
82345-12050 |
US $12.64 |
||
|
82345
|
82345
82345-20050 Diode[05.1987 - 06.1991] AE91..ATM..(G,L) NO.5 |
82345-20050 |
US $12.06 |
||
|
82345
|
82345
82345-32020 Diode[05.1989 - 06.1991] AE91..EFI NO.7 |
82345-32020 |
US $13.45 |
||
|
82625
|
82625
82625-12020 Terminal, Fusible Link[10.1987 - 06.1991] AE91 |
82625-12020 |
US $18.05 |
||
|
82671
|
82671
82671-12020 Block, Junction[05.1987 - 06.1991] AE9# ＮＯ．２ |
82671-12020 |
US $24.17 |
||
|
82671
|
82671
82671-12030 Block, Junction[05.1987 - 06.1991] AE9# ＮＯ．１ |
82671-12030 |
US $174.72 |
||
|
82672
|
82672
82672-12100 Cover, Junktion Block[05.1987 - 06.1991] AE9# |
82672-12100 |
US $6.41 |
||
|
82817
|
82817
82817-14350 Protector, Wiring Harness, No.1[05.1987 - 06.1991] AE9# |
82817-14350 |
US $12.67 |
||
|
82817A
|
82817A
82817-32010
Protector, Wiring Harness, No.1
[05.1987 - 06.1991] AE9# |
82817-32010 |
— | ||
|
82817C
|
82817C
82817-12700
Protector, Wiring Harness, No.4
[05.1989 - 06.1991] AE91 |
82817-12700 |
— | ||
|
82821A
|
82821A
82821-12180 Cover, Connector(For Battery Terminal)[10.1987 - 06.1991] AE91 |
82821-12180 |
US $8.30 |
||
|
82823
|
82823
82823-22050 Cap, Terminal, No.1[05.1987 - 06.1991] AE9# |
82823-22050 |
from US $4.13 |
||
|
82824
|
82824
82824-32030 Connector, Wiring Harness[05.1987 - 06.1991] AE9# |
82824-32030 |
US $8.91 |
||
|
9010506028
|
9010506028
90105-06028 New Genuine Part |
90105-06028 |
US $1.02 |
||
|
9010508096
|
9010508096
90105-08096
New Genuine Part
|
90105-08096 |
— | ||
|
9010510122
|
9010510122
90105-10122 New Genuine Part |
90105-10122 |
US $1.22 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906053
|
9011906053
90119-06053 New Genuine Part |
90119-06053 |
US $0.96 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.05 |
||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.72 |
||
|
9017906132
|
9017906132
90179-06132
Clip(For Front Bumper), No.1
|
90179-06132 |
— | ||
| replacement | |||||
|
9017906132
|
9017906132
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9165640620
|
9165640620
91656-40620
Bolt(For Oil Receiver Pipe)
|
91656-40620 |
— | ||
| replacement | |||||
|
9165640620
|
9165640620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.29 |
||
