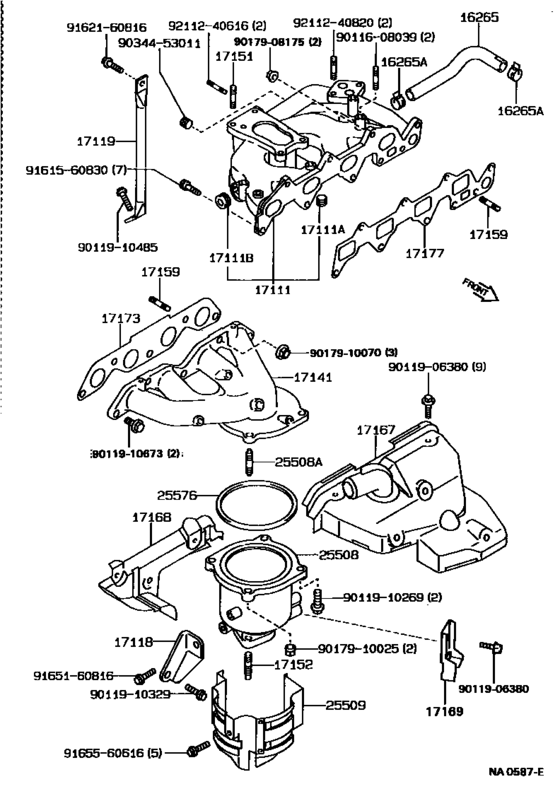

Manifold ([05.1987 - 05.1989] (8705-8905)5AF) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- AE91
- ENGINE
- 5AF
- TRANSMISSION
- ATM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1987
- To
- 05.1989
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16265
|
16265
16265-15020
Hose, Intake Manifold Water
[05.1987 - 05.1989] 5AF..AE91 |
16265-15020 |
— | ||
|
16265A
|
16265A
90467-21001 Clamp Or Clip, Hose(For Water By-Pass Hose)[05.1987 - 11.1987] 5AF..AE91 |
90467-21001 |
US $2.77 |
||
| replacement | |||||
|
16265A
|
16265A
90467-21006 Clip(For Ventilation Hose No.2)[05.1987 - 11.1987] 5AF..AE91 |
90467-21006 |
US $2.56 |
||
|
16265A
|
16265A
90467-21006 Clip(For Ventilation Hose No.2)[11.1987 - 05.1989] 5AF..AE91 |
90467-21006 |
US $2.56 |
||
|
17111
|
17111
17101-15020 Manifold, Intake[05.1987 - 05.1989] 5AF..AE91 |
17101-15020 |
US $361.09 |
||
|
17111A
|
17111A
90344-53011 Plug, W/head Taper Screw, No.1[05.1987 - 05.1989] 5AF..AE91 |
90344-53011 |
US $3.84 |
||
|
17111B
|
17111B
90344-54003 Plug, Tight, No.2(For Cylinder Block)[05.1987 - 05.1989] 5AF..AE91 |
90344-54003 |
from US $3.32 |
||
|
17118
|
17118
17118-15070 Stay, Manifold[05.1987 - 06.1991] 5AF,5AFE..AE91 |
17118-15070 |
US $17.18 |
||
|
17119
|
17119
17139-15020 Stay, Manifold, No.2[05.1987 - 08.1989] 5AF..AE91 |
17139-15020 |
US $34.80 |
||
|
17141
|
17141
17141-15120 Manifold, Exhaust[05.1987 - 06.1991] 5AF,5AFE..AE91 |
17141-15120 |
US $337.79 |
||
|
17151
|
17151
92112-40832 Bolt, Stud(For Manifold To Carburetor)[05.1987 - 08.1988] 5AF..AE91 |
92112-40832 |
US $2.48 |
||
|
17151
|
17151
92112-60832 Bolt, Stud(For Water Outlet Housing)[08.1988 - 05.1989] 5AF..AE91 |
92112-60832 |
US $3.36 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[05.1987 - 05.1988] 5AF#..AE91 |
90116-10058 |
from US $2.44 |
||
|
17152
|
17152
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1988 - 06.1991] 5AF,5AFE..AE91 |
90116-10146 |
from US $1.91 |
||
|
17159
|
17159
92112-60825 Bolt, Stud(For Oil Filter)[05.1987 - 06.1991] 5AF#..AE91 INTAKE MANIFOLD |
92112-60825 |
US $2.56 |
||
|
17159
|
17159
92112-61032 Bolt, Stud(For Manifold To Cylinder Head)[05.1987 - 07.1989] 5AF#..AE91 EXHAUST MANIFOLD |
92112-61032 |
US $3.06 |
||
|
17167
|
17167
17107-15010 Insulator, Exhaust Manifold Heat, No.1[05.1987 - 05.1989] 5AF..AE91 |
17107-15010 |
US $117.94 |
||
|
17168
|
17168
17168-15010 Insulator, Exhaust Manifold Heat, No.2[05.1987 - 06.1991] 5AF,5AFE..AE91 |
17168-15010 |
US $32.76 |
||
|
17169
|
17169
17169-15010 Insulator, Exhaust Manifold Heat, No.3[01.1989 - 06.1991] 5AF,5AFE..AE91 |
17169-15010 |
US $9.03 |
||
|
17173
|
17173
17173-15010 Gasket, Exhaust Manifold To Head[05.1987 - 12.1989] 5AF#..AE91 |
17173-15010 |
US $28.25 |
||
| replacement | |||||
|
17173
|
17173
17173-15011 Gasket, Exhaust Manifold To Head[05.1987 - 12.1989] 5AF#..AE91 |
17173-15011 |
US $29.53 |
||
|
17177
|
17177
17171-15020
Gasket, Intake Manifold To Head, No.1
[05.1987 - 12.1989] 5AF,5AFE..AE91..G,L |
17171-15020 |
— | ||
| replacement | |||||
|
17177
|
17177
17171-15021
Gasket, Intake Manifold To Head, No.1
[05.1987 - 12.1989] 5AF,5AFE..AE91..G,L |
17171-15021 |
— | ||
|
25508
|
25508
25508-15020 Converter Sub-Assy, Manifold[05.1987 - 06.1991] 5AF,5AFE..AE91 |
25508-15020 |
US $646.46 |
||
|
25508A
|
25508A
90116-10017 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1987 - 05.1988] 5AF#..AE91 |
90116-10017 |
from US $2.65 |
||
|
25508A
|
25508A
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1988 - 06.1991] 5AF,5AFE..AE91 |
90116-10146 |
from US $1.91 |
||
|
25509
|
25509
25509-15020 Insulator Sub-Assy, Manifold Convertor[05.1987 - 01.1989] 5AF#..AE91 |
25509-15020 |
US $27.66 |
||
| replacement | |||||
|
25509
|
25509
25509-15021 Insulator Sub-Assy, Manifold Convertor[05.1987 - 01.1989] 5AF#..AE91 |
25509-15021 |
US $27.52 |
||
|
25509
|
25509
25509-15021 Insulator Sub-Assy, Manifold Convertor[01.1989 - 06.1991] 5AF,5AFE..AE91 |
25509-15021 |
US $27.52 |
||
|
25576
|
25576
25576-15010 Gasket, Manifold Converter[05.1987 - 06.1991] 5AF,5AFE..AE91 |
25576-15010 |
US $16.16 |
||
| replacement | |||||
|
25576
|
25576
25576-15020 Gasket, Manifold Converter[05.1987 - 06.1991] 5AF,5AFE..AE91 |
25576-15020 |
US $14.50 |
||
|
9011608039
|
9011608039
90116-08039 Bolt(For Manual Transmission Oil Pan Setting) |
90116-08039 |
US $3.67 |
||
|
9011906380
|
9011906380
90119-06380
New Genuine Part
|
90119-06380 |
— | ||
| replacement | |||||
|
9011906380
|
9011906380
90119-06817 BOLT WWASHER |
90119-06817 |
US $1.12 |
||
|
9011910269
|
9011910269
90119-10269 Bolt |
90119-10269 |
US $8.48 |
||
|
9011910329
|
9011910329
90119-10329 New Genuine Part |
90119-10329 |
US $1.60 |
||
|
9011910485
|
9011910485
90119-10485 New Genuine Part |
90119-10485 |
US $2.48 |
||
|
9011910673
|
9011910673
90119-10673
New Genuine Part
|
90119-10673 |
— | ||
|
9017908175
|
9017908175
90179-08175 New Genuine Part |
90179-08175 |
US $1.44 |
||
|
9017910025
|
9017910025
90179-10025 NUT |
90179-10025 |
US $2.24 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9034453011
|
9034453011
90344-53011 Plug, W/head Taper Screw, No.1 |
90344-53011 |
US $3.84 |
||
|
9161560830
|
9161560830
91615-60830 Bolt(For Clutch Release Cylinder Setting) |
91615-60830 |
US $2.33 |
||
| replacement | |||||
|
9161560830
|
9161560830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.50 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.88 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9165560616
|
9165560616
91655-60616
Bolt (For Rear Differential Breather Plug Oil Deflector)
|
91655-60616 |
— | ||
| replacement | |||||
|
9165560616
|
9165560616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9211240616
|
9211240616
92112-40616
Bolt, Stud(For Cold Start Injector)
|
92112-40616 |
— | ||
|
9211240820
|
9211240820
92112-40820 Bolt, Stud(For Manifold To Venturi) |
92112-40820 |
US $1.05 |
||
