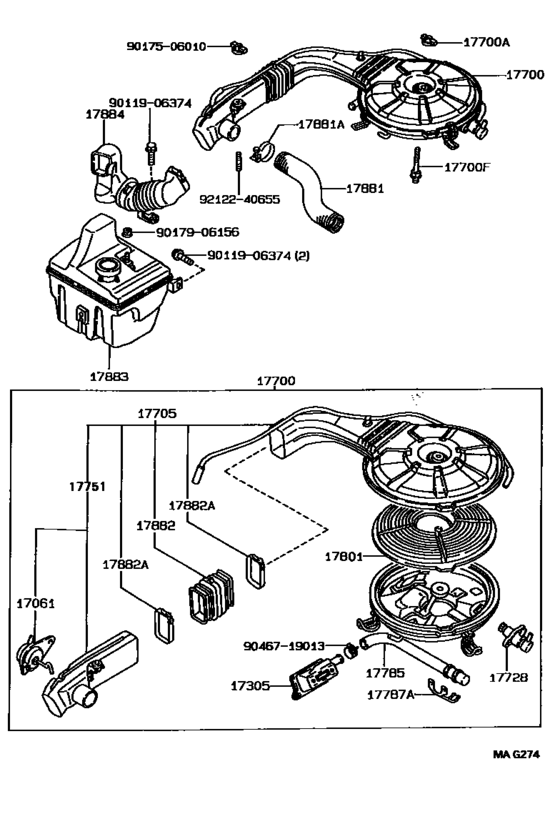

Air Cleaner ([05.1987 - 08.1989] (8705-8908)4AF,5AF) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- AE91
- grade
- SE
- body
- 4D
- ENGINE
- 5AF
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1987
- To
- 05.1989
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-15040 Diaphragm Sub-Assy[05.1987 - 08.1989] 4AF,5AF..AE91,95 |
17061-15040 |
US $51.11 |
||
|
17305
|
17305
17350-15100 Valve Sub-Assy, Reed[05.1987 - 12.1987] 4AF,5AF..AE91,95 |
17350-15100 |
US $173.26 |
||
|
17305
|
17305
17350-15110 Valve Sub-Assy, Reed[12.1987 - 08.1989] 4AF,5AF..AE91,95 |
17350-15110 |
US $219.86 |
||
|
17700
|
17700
17700-15240 Cleaner Assy, Air[05.1987 - 08.1989] 4AF,5AF..AE91,95 |
17700-15240 |
US $460.10 |
||
|
17700A
|
17700A
90175-06010
Nut, Wing(For Air Cleaner)
[05.1987 - 08.1991] 4AF,5AF..AE91,95; 2E,3E..EE9# |
90175-06010 |
— | ||
|
17700F
|
17700F
90116-06018 Bolt, Stud(For Air Cleaner Setting)[05.1987 - 08.1989] 4AF,5AF..AE91,95 |
90116-06018 |
from US $3.32 |
||
|
17705
|
17705
17705-15150
Cap Sub-Assy, Air Cleaner
[05.1987 - 08.1989] 4AF,5AF..AE91,95 |
17705-15150 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-16460
Cap Sub-Assy, Air Cleaner
[05.1987 - 08.1989] 4AF,5AF..AE91,95 |
17705-16460 |
— | ||
|
17728
|
17728
17728-15080 Valve, Thermostatic[05.1987 - 08.1989] 4AF,5AF..AE91,95 |
17728-15080 |
US $90.27 |
||
|
17751
|
17751
17751-15010
Inlet, Air Cleaner, No.1
[05.1987 - 08.1989] 4AF,5AF..AE91,95 |
17751-15010 |
— | ||
|
17785
|
17785
17785-15010
Silencer, Air Cleaner
[12.1987 - 08.1989] 4AF,5AF..AE91,95 |
17785-15010 |
— | ||
|
17787A
|
17787A
17787-15010
Bracket, Air Cleaner Silencer
[12.1987 - 08.1989] 4AF,5AF..AE91,95 |
17787-15010 |
— | ||
|
17801
|
17801
17801-15060 Element Sub-Assy, Air Cleaner Filter[05.1987 - 08.1989] 4AF,5AF..AE91,95 |
17801-15060 |
from US $15.55 |
||
|
17881
|
17881
17881-15120
Hose, Air Cleaner, No.1
[06.1987 - 10.1987] 5AF..AE91 |
17881-15120 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-15150
Hose, Air Cleaner, No.1
[06.1987 - 10.1987] 5AF..AE91 |
17881-15150 |
— | ||
|
17881
|
17881
17881-15150
Hose, Air Cleaner, No.1
[05.1987 - 08.1989] 4AF,5AF..AE91,95 |
17881-15150 |
— | ||
|
17881A
|
17881A
96111-10460 Clamp Or Clip, Hose(For Radiator Inlet)[05.1987 - 10.1989] 4AF,5AF..AE91,95; 3E..EE98 |
96111-10460 |
from US $2.98 |
||
|
17882
|
17882
17881-15140
Hose, Air Cleaner, No.2
[05.1987 - 08.1989] 4AF,5AF..AE91,95 |
17881-15140 |
— | ||
|
17882A
|
17882A
17786-15010
Clamp(For Air Cleaner Hose, No.2)
[05.1987 - 08.1989] 4AF,5AF..AE91,95 |
17786-15010 |
— | ||
|
17883
|
17883
17883-16030 Hose, Air Cleaner, No.3[05.1987 - 05.1988] 4AF,5AF..AE91,95 |
17883-16030 |
US $72.80 |
||
|
17883
|
17883
17883-16031 Hose, Air Cleaner, No.3[05.1988 - 08.1989] 4AF,5AF..AE91,95 |
17883-16031 |
US $60.72 |
||
|
17884
|
17884
17880-16010
Hose, Air Cleaner, No.4
[05.1987 - 08.1989] 4AF,5AF..AE91,95 |
17880-16010 |
— | ||
|
9011906374
|
9011906374
90119-06374
BOLT
|
90119-06374 |
— | ||
| replacement | |||||
|
9011906374
|
9011906374
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $0.96 |
||
|
9017506010
|
9017506010
90175-06010
Nut, Wing(For Air Cleaner)
|
90175-06010 |
— | ||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.72 |
||
|
9046719013
|
9046719013
90467-19013
Clamp Or Clip(For Water By-Pass Hose No.4)
|
90467-19013 |
— | ||
|
9212240655
|
9212240655
92122-40655 New Genuine Part |
92122-40655 |
US $2.33 |
||
