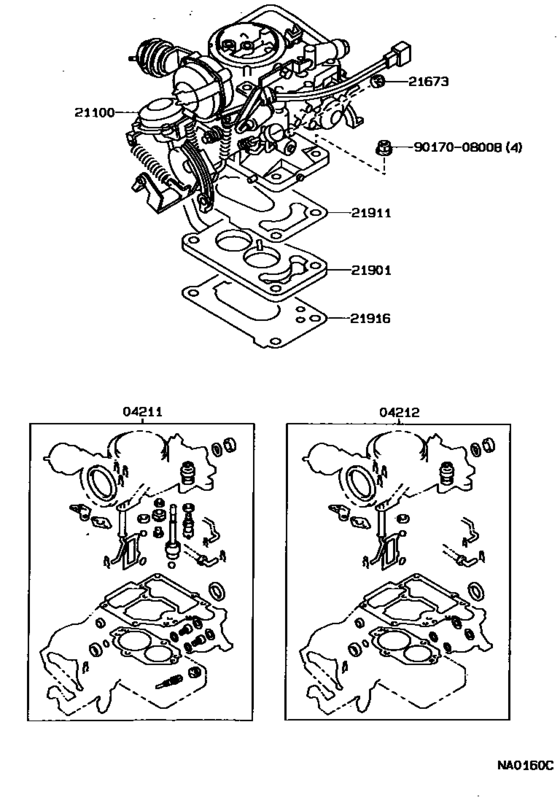

Carburetor Assembly ([05.1987 - 08.1989] (8705-8908)4AF,5AF) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- AE91
- grade
- SE
- body
- 4D
- ENGINE
- 5AF
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1987
- To
- 05.1989
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04211
|
04211
04211-15181
Carburetor Kit
[10.1987 - 08.1989] 5AF..AE91 |
04211-15181 |
— | ||
| replacement | |||||
|
04211
|
04211
04211-15182 Carburetor Kit[10.1987 - 08.1989] 5AF..AE91 |
04211-15182 |
US $243.15 |
||
|
04212
|
04212
04212-16070
Gasket Kit, Carburetor
[05.1987 - 02.1990] 4AF,5AF..AE91,95 |
04212-16070 |
— | ||
| replacement | |||||
|
04212
|
04212
04212-16071
Gasket Kit, Carburetor
[05.1987 - 02.1990] 4AF,5AF..AE91,95 |
04212-16071 |
— | ||
|
21100
|
21100
21100-15510 Carburetor Assy[05.1987 - 05.1988] 5AF..AE91..ATM |
21100-15510 |
US $1,470.56 |
||
|
21100
|
21100
21100-15511 Carburetor Assy[05.1988 - 08.1989] 5AF..AE91..ATM |
21100-15511 |
US $1,470.56 |
||
|
21673
|
21673
21673-13280
Cap, Idle Limit
[05.1987 - 05.1989] 4AF,5AF..AE91,95; 2E,3E..EE9# |
21673-13280 |
— | ||
|
21901
|
21901
21901-15091
Insulator Sub-Assy, Carburetor Heat, No.1
[05.1987 - 08.1989] 4AF,5AF..AE91,95 |
21901-15091 |
— | ||
|
21911
|
21911
21911-15071
Gasket, Carburetor
[05.1987 - 08.1989] 4AF,5AF..AE91,95 |
21911-15071 |
— | ||
| replacement | |||||
|
21911
|
21911
21911-15072 Gasket, Carburetor[05.1987 - 08.1989] 4AF,5AF..AE91,95 |
21911-15072 |
US $4.89 |
||
|
21916
|
21916
21916-15040
Gasket, Carburetor, No.2
[05.1987 - 08.1989] 4AF,5AF..AE91,95 |
21916-15040 |
— | ||
| replacement | |||||
|
21916
|
21916
21916-15041 Gasket, Carburetor, No.2[05.1987 - 08.1989] 4AF,5AF..AE91,95 |
21916-15041 |
US $4.89 |
||
|
9017008008
|
9017008008
90170-08008 New Genuine Part |
90170-08008 |
US $1.60 |
||
