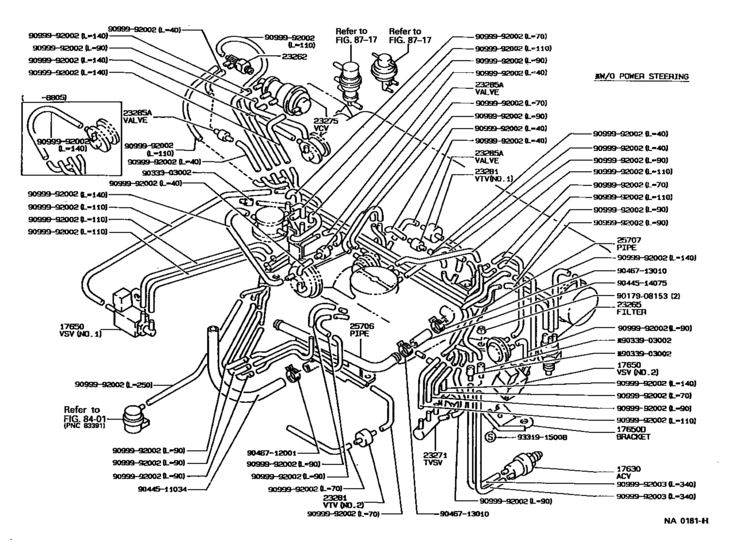

Vacuum Piping ([05.1987 - 08.1989] (8705-8908)5AF) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- AE91
- grade
- SE
- body
- 4D
- ENGINE
- 5AF
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1987
- To
- 05.1989
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17630
|
17630
17630-15021
Valve Assy, Air Control
[05.1987 - 08.1989] 4AF,5AF..AE91,95..FXG,FXL,G,SE,TX,XE |
17630-15021 |
— | ||
|
17650
|
17650
90910-12026
Valve Assy, Vacuum Switching
[05.1987 - 08.1989] 4AF,5AF..AE91,95 ＮＯ．１ |
90910-12026 |
— | ||
|
17650
|
17650
90910-12055
Valve Assy, Vacuum Switching
[05.1987 - 08.1989] 4AF,5AF..AE91,95 ＮＯ．２ |
90910-12055 |
— | ||
|
17650D
|
17650D
25861-15010
Bracket, Vacuum Switching Valve
[05.1987 - 08.1989] 4AF,5AF..AE91,95 |
25861-15010 |
— | ||
|
23262
|
23262
90925-05085
Valve, Bimetal Vacuum Switching, No.1
[05.1988 - 10.1989] 5AF..AE91 |
90925-05085 |
— | ||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[05.1987 - 05.1989] 2E,3E..EE96,98; 4AGE,5AF..AE91,92 |
90917-11027 |
from US $23.71 |
||
|
23271
|
23271
90925-02082 Valve, Thermostatic Vacuum Switching, No.1[05.1987 - 08.1989] 4AF,5AF..AE91,95 |
90925-02082 |
US $133.20 |
||
|
23275
|
23275
90925-03135 Valve, Vacuum Control, No.1[05.1987 - 08.1989] 5AF..AE91 |
90925-03135 |
US $54.02 |
||
|
23281
|
23281
90925-01095
Valve, Vacuum Transmitting, No.1
[05.1987 - 08.1989] 5AF..AE91..ATM |
90925-01095 |
— | ||
|
23281
|
23281
90925-01100
Valve, Vacuum Transmitting, No.1
[05.1987 - 09.1991] 5AF..AE91 ＮＯ．２; 2E..EE96..3FC |
90925-01100 |
— | ||
|
23281
|
23281
90925-01101 Valve, Vacuum Transmitting, No.1[05.1987 - 08.1989] 5AF..AE91 ＮＯ．１; 4AF..AE95 |
90925-01101 |
US $28.54 |
||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[05.1987 - 08.1987] 5AF..AE91..MTM ｱﾘ(ｴｱｺﾝ); 5AF..AE91..ATM ｱﾘ(ｴｱｺﾝ) |
90917-10049 |
from US $6.59 |
||
|
25706
|
25706
25706-15210 Pipe Sub-Assy, Vacuum Transmitting, No.1[05.1987 - 08.1989] 5AF..AE91 |
25706-15210 |
US $81.54 |
||
|
25707
|
25707
25707-15180 Pipe Sub-Assy, Vacuum Transmitting, No.2[05.1987 - 05.1988] 5AF..AE91 |
25707-15180 |
US $117.94 |
||
|
25707
|
25707
25707-15181 Pipe Sub-Assy, Vacuum Transmitting, No.2[05.1988 - 08.1989] 5AF..AE91 |
25707-15181 |
US $117.94 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.92 |
||
|
9033303002
|
9033303002
90333-03002
New Genuine Part
|
90333-03002 |
— | ||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
US $2.88 |
||
|
9044511034
|
9044511034
90445-11034 New Genuine Part |
90445-11034 |
US $6.99 |
||
|
9044514075
|
9044514075
90445-14075 Hose, No.1(For Air Pipe) |
90445-14075 |
US $5.39 |
||
|
9046712001
|
9046712001
90467-12001 Clip(For Carburetor Fuel Hose) |
90467-12001 |
US $2.18 |
||
| replacement | |||||
|
9046712001
|
9046712001
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.74 |
||
|
9046713010
|
9046713010
90467-13010 Clip(For Ventilation Hose No.2) |
90467-13010 |
US $2.48 |
||
| replacement | |||||
|
9046713010
|
9046713010
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.56 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
