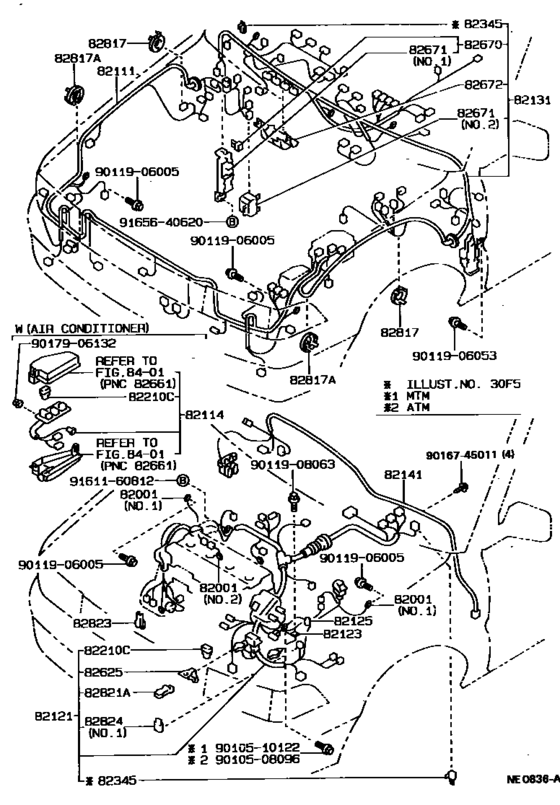

Wiring & Clamp ([05.1987 - 05.1989] (8705-8905)AE91,95..CBR) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- AE91
- grade
- SE
- body
- 4D
- ENGINE
- 5AF
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1987
- To
- 05.1989
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07206 Cable, Bond, No.1[05.1987 - 05.1992] AE9# ＮＯ．１ |
90980-07206 |
US $8.56 |
||
|
82001
|
82001
90980-07236 Cable, Bond, No.1[05.1987 - 09.1987] AE91 ＮＯ．２ |
90980-07236 |
US $5.53 |
||
|
82001
|
82001
90980-07299 Cable, Bond, No.1[09.1987 - 05.1992] AE91,95 ＮＯ．２ |
90980-07299 |
US $6.46 |
||
|
82111
|
82111
82111-1A210 Wire, Engine Room Main[05.1987 - 05.1989] CE90,EE90;AE91,95..(FXG,FXL,G,SE)..CBR |
82111-1A210 |
US $548.91 |
||
|
82114
|
82114
82114-12040
Wire, Engine Room, No.4
[05.1987 - 05.1989] AE9#,CE9#,EE9# |
82114-12040 |
— | ||
|
82121
|
82121
82121-1A150 Wire, Engine[05.1987 - 06.1988] AE91..ATM..CBR |
82121-1A150 |
US $709.07 |
||
|
82121
|
82121
82121-1A151 Wire, Engine[06.1988 - 08.1989] AE91..ATM..CBR |
82121-1A151 |
US $711.98 |
||
|
82123
|
82123
82123-12160 Wire, Engine, No.3[05.1987 - 05.1992] AE9#,EE9#..4F,4FC,5F |
82123-12160 |
US $43.10 |
||
|
82131
|
82131
82131-1A610 Wire, Cowl[05.1987 - 10.1987] AE91..FXG,SE |
82131-1A610 |
US $1,074.53 |
||
| replacement | |||||
|
82131
|
82131
82131-1A611 Wire, Cowl[05.1987 - 10.1987] AE91..FXG,SE |
82131-1A611 |
US $1,074.53 |
||
|
82131
|
82131
82131-1A611 Wire, Cowl[10.1987 - 06.1988] AE91..(FXG,SE)..CBR; AE91..G ｱﾘ(*PW & *EL) |
82131-1A611 |
US $1,074.53 |
||
|
82131
|
82131
82131-1A612 Wire, Cowl[06.1988 - 05.1989] AE91..(FXG,SE)..CBR |
82131-1A612 |
US $1,074.53 |
||
|
82131
|
82131
82131-1A620 Wire, Cowl[05.1987 - 10.1987] AE91..SE SE ｻﾙ-ﾝ |
82131-1A620 |
US $1,074.53 |
||
| replacement | |||||
|
82131
|
82131
82131-1A621 Wire, Cowl[05.1987 - 10.1987] AE91..SE SE ｻﾙ-ﾝ |
82131-1A621 |
US $1,074.53 |
||
|
82131
|
82131
82131-1A621 Wire, Cowl[10.1987 - 06.1988] AE91..SE..CBR SE ﾘﾐﾃﾂﾄﾞ |
82131-1A621 |
US $1,074.53 |
||
|
82131
|
82131
82131-1A622 Wire, Cowl[06.1988 - 05.1989] AE91..SE..CBR SE ﾘﾐﾃﾂﾄﾞ |
82131-1A622 |
US $1,074.53 |
||
|
82131
|
82131
82131-1K840 Wire, Cowl[01.1989 - 04.1989] AE91..SE..CBR SE ｽ-ﾊﾟ- ﾘﾐﾃﾂﾄﾞ |
82131-1K840 |
US $1,075.98 |
||
|
82141
|
82141
82141-12010 Wire, Instrument Panel[05.1987 - 05.1989] AE91..SE..EFI;AE91..FXG,FXZI;AE92,95..FXGT,GT,SE; AE91,CE90..SE..(CBR,DSL) SE ｻﾙ-ﾝ |
82141-12010 |
US $199.47 |
||
|
82210C
|
82210C
90982-08188 Fusible Link[05.1987 - 05.1989] AE9#,CE9#,EE9# ３０Ａ，メス端子 |
90982-08188 |
US $11.36 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[10.1987 - 12.1989] AE91..CBR;AE91..(FXZI,SE)..EFI;AE92,95..FXGT,GT,SE,TX,XE ８０Ａ，オス端子 |
90982-08203 |
from US $7.36 |
||
|
82210C
|
82210C
90982-08223 Fusible Link[10.1987 - 05.1989] AE9# ３０Ａ，オス端子 |
90982-08223 |
US $11.36 |
||
|
82210C
|
82210C
90982-08246 Fusible Link[05.1989 - 06.1991] AE9# １００Ａ，オス端子 |
90982-08246 |
from US $7.04 |
||
|
82345
|
82345
82345-12010
Diode
[05.1987 - 08.1989] AE91..CBR ＮＯ．１ |
82345-12010 |
— | ||
| replacement | |||||
|
82345
|
82345
82345-12020 Diode[05.1987 - 08.1989] AE91..CBR ＮＯ．１ |
82345-12020 |
US $15.55 |
||
|
82345
|
82345
82345-12030 Diode[05.1987 - 05.1989] AE91..(4FC,5F)..CBR;AE91,92..FXGT,FXZI,GT ＮＯ．２ |
82345-12030 |
US $11.36 |
||
|
82345
|
82345
82345-12050 Diode[05.1987 - 05.1989] EE96..GL;EE96..02S;AE91,95..ATM..CBR;AE92,EE90,97,98..3FC,4F,5F ＮＯ．４ |
82345-12050 |
US $12.64 |
||
|
82345
|
82345
82345-20050 Diode[05.1987 - 05.1989] AE91,95..ATM..CBR ＮＯ．６ |
82345-20050 |
US $12.06 |
||
|
82345
|
82345
82345-32020 Diode[05.1987 - 11.1989] AE91,95 ＮＯ．８ |
82345-32020 |
US $13.45 |
||
|
82625
|
82625
82625-12020 Terminal, Fusible Link[10.1987 - 05.1989] AE91,95 |
82625-12020 |
US $18.05 |
||
|
82670
|
82670
82670-12090 Block Assy, Junction, No.1[05.1987 - 05.1989] AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE |
82670-12090 |
US $174.72 |
||
|
82671
|
82671
82671-12030 Block, Junction[05.1987 - 08.1987] AE9#,CE90..FXG,FXGT,FXZI,GT,SE ＮＯ．１ |
82671-12030 |
US $174.72 |
||
|
82671
|
82671
82671-12070 Block, Junction[05.1987 - 08.1987] AE9#,CE90..FXG,FXGT,FXZI,GT,SE ＮＯ．２; AE91,CE90,EE90..DX,FXD,FXL,TX,XE NO.2 |
82671-12070 |
US $23.88 |
||
|
82672
|
82672
82672-12080 Cover, Junktion Block[05.1987 - 05.1989] AE9#,CE9#,EE9# |
82672-12080 |
US $15.29 |
||
|
82817
|
82817
82817-14350 Protector, Wiring Harness, No.1[05.1987 - 05.1990] AE9#,CE9#,EE9# |
82817-14350 |
US $12.67 |
||
|
82817A
|
82817A
82817-32010
Protector, Wiring Harness, No.1
[05.1987 - 05.1992] AE9#,CE9#,EE9# |
82817-32010 |
— | ||
|
82821A
|
82821A
82821-12180 Cover, Connector(For Battery Terminal)[10.1987 - 05.1989] AE91,95 BATTERY TERMINAL |
82821-12180 |
US $8.30 |
||
|
82823
|
82823
82823-22050 Cap, Terminal, No.1[05.1987 - 05.1992] AE9#,EE9# |
82823-22050 |
US $6.24 |
||
|
82824
|
82824
82824-32030 Connector, Wiring Harness[05.1987 - 05.1992] AE9#,CE9#,EE9# NO.1 |
82824-32030 |
US $8.91 |
||
|
9010508096
|
9010508096
90105-08096
New Genuine Part
|
90105-08096 |
— | ||
|
9010510122
|
9010510122
90105-10122 New Genuine Part |
90105-10122 |
US $1.22 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906053
|
9011906053
90119-06053 New Genuine Part |
90119-06053 |
US $0.96 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.05 |
||
|
9016745011
|
9016745011
90167-45011 Direct |
90167-45011 |
US $1.60 |
||
| replacement | |||||
|
9016745011
|
9016745011
93568-55014 Screw |
93568-55014 |
from US $0.57 |
||
|
9017906132
|
9017906132
90179-06132
Clip(For Front Bumper), No.1
|
90179-06132 |
— | ||
| replacement | |||||
|
9017906132
|
9017906132
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165640620
|
9165640620
91656-40620
Bolt(For Oil Receiver Pipe)
|
91656-40620 |
— | ||
| replacement | |||||
|
9165640620
|
9165640620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
US $1.44 |
||
