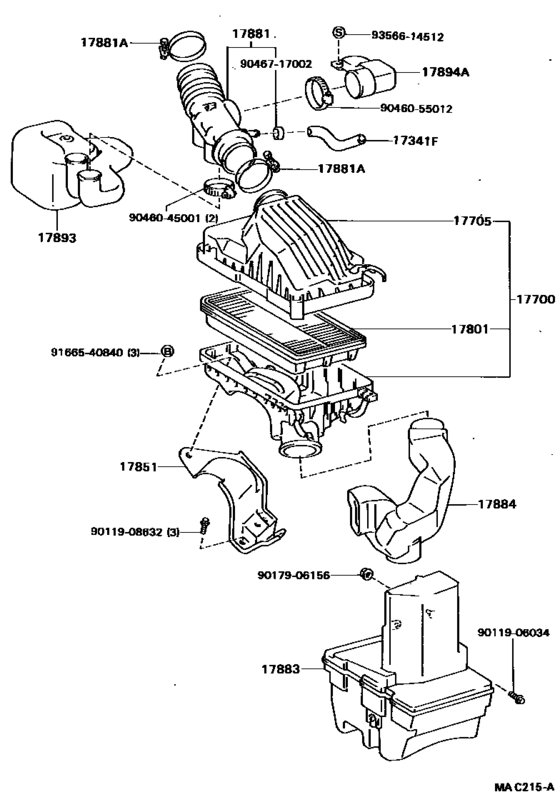

Air Cleaner ([05.1989 - ] (8905- )5AFE,5AFHE) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Japan
- Frame
- AE91
- grade
- FXZS
- body
- 3D
- ENGINE
- 5AFHE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1989
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- EFIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341F
|
17341F
17341-15160
Hose, Air, No.1
[05.1989 - 05.1992] 5AFE,5AFHE..AE91 |
17341-15160 |
— | ||
|
17700
|
17700
17700-16680 Cleaner Assy, Air[05.1989 - 05.1992] 5AFE,5AFHE..AE91 |
17700-16680 |
US $407.68 |
||
|
17705
|
17705
17705-16360
Cap Sub-Assy, Air Cleaner
[05.1989 - 05.1992] 5AFE,5AFHE..AE91 |
17705-16360 |
— | ||
|
17801
|
17801
17801-74020 Element Sub-Assy, Air Cleaner Filter[05.1989 - 05.1992] 4AGE,5AFHE,5AFE..AE91,92 |
17801-74020 |
from US $37.21 |
||
|
17851
|
17851
17851-15010 Bracket, Air Cleaner Support[05.1987 - 05.1992] 4AGE,4AFE,5AFE,5AFHE..AE9# |
17851-15010 |
US $39.02 |
||
|
17881
|
17881
17881-15160
Hose, Air Cleaner, No.1
[05.1989 - 05.1992] 5AFE,5AFHE..AE91 |
17881-15160 |
— | ||
|
17881A
|
17881A
90460-73005 Clamp(For Air Cleaner Hose, No.1)[05.1989 - 05.1992] 4AFE,5AFHE,5AFE..AE91,95 |
90460-73005 |
US $6.84 |
||
| replacement | |||||
|
17881A
|
17881A
96111-10730 Clamp(For Air Cleaner Inlet, No.1)[05.1989 - 05.1992] 4AFE,5AFHE,5AFE..AE91,95 |
96111-10730 |
US $2.56 |
||
|
17883
|
17883
17883-16041 Hose, Air Cleaner, No.3[05.1989 - 08.1989] 1C..CE9#; 4A#,5AFE,5AFHE..AE9# |
17883-16041 |
US $66.54 |
||
|
17884
|
17884
17882-16100 Hose, Air Cleaner, No.4[05.1989 - 08.1989] 4A#,5AFE,5AFHE..AE9#..DX,FXG,FXGT,FXL,FXV,FXVS,FXZS,GT,SE,TX,XE |
17882-16100 |
US $26.30 |
||
|
17893
|
17893
17893-15010 Resonator, Intake Air[05.1989 - 06.1990] 5AFE,5AFHE..AE91 |
17893-15010 |
US $38.44 |
||
| replacement | |||||
|
17893
|
17893
17893-15020 Resonator, Intake Air[05.1989 - 06.1990] 5AFE,5AFHE..AE91 |
17893-15020 |
US $38.44 |
||
|
17893
|
17893
17893-15020 Resonator, Intake Air[06.1990 - 05.1992] 5AF#..AE91 |
17893-15020 |
US $38.44 |
||
|
17894A
|
17894A
17894-15010 Resonator, Intake Air, No.2[05.1989 - 05.1992] 5AFE,5AFHE..AE91 |
17894-15010 |
US $22.42 |
||
|
9011906034
|
9011906034
90119-06034 New Genuine Part |
90119-06034 |
US $1.60 |
||
| replacement | |||||
|
9011906034
|
9011906034
91621-40616 Step Cover Bolt |
91621-40616 |
US $1.28 |
||
|
9011908632
|
9011908632
90119-08632 New Genuine Part |
90119-08632 |
US $2.04 |
||
| replacement | |||||
|
9011908632
|
9011908632
91621-40816 BOLTWWASHER |
91621-40816 |
from US $1.05 |
||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.72 |
||
|
9046045001
|
9046045001
90460-45001 Clamp(For Air Cleaner Hose, No.1) |
90460-45001 |
US $1.49 |
||
|
9046055012
|
9046055012
90460-55012 Clamp(For Air Cleaner Hose, No.2) |
90460-55012 |
US $5.39 |
||
| replacement | |||||
|
9046055012
|
9046055012
90460-55003 Clamp Or Clip(For Air Hose, No.1) |
90460-55003 |
from US $4.32 |
||
|
9046717002
|
9046717002
90467-17002 Clip Or Clamp(For Ventilation Hose) |
90467-17002 |
US $4.66 |
||
| replacement | |||||
|
9046717002
|
9046717002
96134-51700 Clip Or Clamp(For Ventilation Hose) |
96134-51700 |
US $2.24 |
||
|
9166540840
|
9166540840
91665-40840 New Genuine Part |
91665-40840 |
US $2.18 |
||
| replacement | |||||
|
9166540840
|
9166540840
91661-60840 Bolt |
91661-60840 |
US $2.24 |
||
|
9356614512
|
9356614512
93566-14512
SCREW
|
93566-14512 |
— | ||
| replacement | |||||
|
9356614512
|
9356614512
93568-54512 SCREW |
93568-54512 |
US $1.12 |
||
