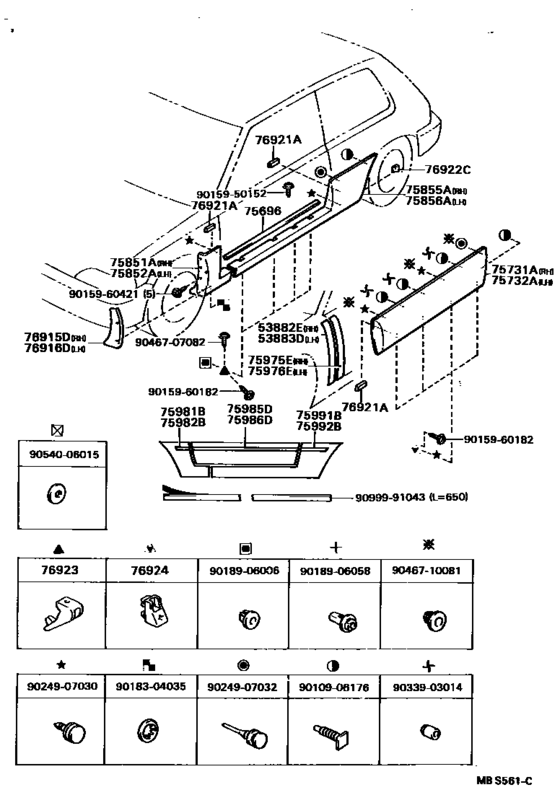

Side Moulding ([05.1989 - ] ｱﾘ(ｵｵｶﾞﾀ ｻｲﾄﾞ ｶﾞ-ﾆﾂｼﾕ) (8905- )3D) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Japan
- Frame
- AE91
- grade
- FXZS
- body
- 3D
- ENGINE
- 5AFHE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1989
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- EFIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53882E
|
53882E
53882-12090 Seal, Front Fender, Rh[05.1989 - 05.1992] AE91,92..3D |
53882-12090 |
US $4.22 |
||
|
53883D
|
53883D
53883-12040 Seal, Front Fender, Lh[05.1989 - 05.1992] AE91,92..3D |
53883-12040 |
US $4.22 |
||
|
75696
|
75696
75696-12090
Pad, Body Outside Moulding, No.1
[05.1989 - 05.1992] AE91,92..3D |
75696-12090 |
— | ||
|
75731A
|
75731A
75731-1A260-01 Moulding, Front Door, Outside Rh[05.1989 - 05.1992] AE91,92..3D BLACK M,205 |
75731-1A260-01 |
US $96.10 |
||
|
75731A
|
75731A
75731-1A260-02 Moulding, Front Door, Outside Rh[05.1989 - 05.1992] AE91,92..3D SUPER RED 2,3E5 |
75731-1A260-02 |
US $96.10 |
||
|
75731A
|
75731A
75731-1A260-04 Moulding, Front Door, Outside Rh[08.1989 - 08.1991] AE91,92..3D DARK BLUE MICA M,8E9 |
75731-1A260-04 |
US $78.62 |
||
|
75731A
|
75731A
75731-1A260-07 Moulding, Front Door, Outside Rh[05.1989 - 05.1992] AE91,92..3D GRAYISH GREEN M,6K6 |
75731-1A260-07 |
US $96.10 |
||
|
75731A
|
75731A
75731-1A260-08 Moulding, Front Door, Outside Rh[05.1989 - 05.1992] AE91,92..3D SUPER WHITE 2,040 |
75731-1A260-08 |
US $96.10 |
||
|
75731A
|
75731A
75731-1A260-J0 Moulding, Front Door, Outside Rh[08.1991 - 05.1992] AE9#..3D DK BLUE MICA M,8J7 |
75731-1A260-J0 |
US $78.62 |
||
|
75731A
|
75731A
75731-1A900 Moulding, Front Door, Outside Rh[05.1989 - 05.1992] AE91,92..3D ｱﾘ(ｵｵｶﾞﾀ ｻｲﾄﾞ ｶﾞ-ﾆﾂｼﾕ) |
75731-1A900 |
US $179.09 |
||
|
75732A
|
75732A
75732-1A100-01 Moulding, Front Door, Outside Lh[05.1989 - 05.1992] AE91,92..3D BLACK M,205 |
75732-1A100-01 |
US $96.10 |
||
|
75732A
|
75732A
75732-1A100-02 Moulding, Front Door, Outside Lh[05.1989 - 05.1992] AE91,92..3D SUPER RED 2,3E5 |
75732-1A100-02 |
US $96.10 |
||
|
75732A
|
75732A
75732-1A100-04 Moulding, Front Door, Outside Lh[08.1989 - 08.1991] AE91,92..3D DARK BLUE MICA M,8E9 |
75732-1A100-04 |
US $78.62 |
||
|
75732A
|
75732A
75732-1A100-07 Moulding, Front Door, Outside Lh[05.1989 - 05.1992] AE91,92..3D GRAYISH GREEN M,6K6 |
75732-1A100-07 |
US $96.10 |
||
|
75732A
|
75732A
75732-1A100-08 Moulding, Front Door, Outside Lh[05.1989 - 05.1992] AE91,92..3D SUPER WHITE 2,040 |
75732-1A100-08 |
US $96.10 |
||
|
75732A
|
75732A
75732-1A100-J0 Moulding, Front Door, Outside Lh[08.1991 - 05.1992] AE9#..3D DK BLUE MICA M,8J7 |
75732-1A100-J0 |
US $78.62 |
||
|
75732A
|
75732A
75732-1A900 Moulding, Front Door, Outside Lh[05.1989 - 05.1992] AE91,92..3D ｱﾘ(ｵｵｶﾞﾀ ｻｲﾄﾞ ｶﾞ-ﾆﾂｼﾕ) |
75732-1A900 |
US $179.09 |
||
|
75851A
|
75851A
75851-12900 Moulding, Rocker Panel, Front Rh[05.1989 - 05.1992] AE91,92..3D |
75851-12900 |
US $101.92 |
||
|
75852A
|
75852A
75852-12900 Moulding, Rocker Panel, Front Lh[05.1989 - 05.1992] AE91,92..3D |
75852-12900 |
US $101.92 |
||
|
75855A
|
75855A
75855-12900 Moulding, Rocker Panel, Rear Rh[05.1989 - 05.1992] AE91,92..3D |
75855-12900 |
US $299.94 |
||
|
75856A
|
75856A
75856-12900 Moulding, Rocker Panel, Rear Lh[05.1989 - 05.1992] AE91,92..3D |
75856-12900 |
US $299.94 |
||
|
75975E
|
75975E
75975-12060 Seal, Fr Door, Outside Rh[05.1989 - 05.1992] AE91,92..3D |
75975-12060 |
US $4.22 |
||
|
75976E
|
75976E
75976-12050 Seal, Fr Door, Outside Lh[05.1989 - 05.1992] AE91,92..3D |
75976-12050 |
US $3.93 |
||
|
75981B
|
75981B
75981-12520-03 Stripe, Fender, Rh[05.1989 - 08.1991] AE91,92..3D SILVER,040 ,3E5 ,8E9 |
75981-12520-03 |
US $6.12 |
||
|
75981B
|
75981B
75981-12520-05 Stripe, Fender, Rh[05.1989 - 05.1992] AE91,92..3D BEIGE M,040 ,205 ,6K6 |
75981-12520-05 |
US $6.12 |
||
|
75982B
|
75982B
75982-12520-03 Stripe, Fender, Lh[05.1989 - 08.1991] AE91,92..3D SILVER,040 ,3E5 ,8E9 |
75982-12520-03 |
US $6.12 |
||
|
75982B
|
75982B
75982-12520-05 Stripe, Fender, Lh[05.1989 - 05.1992] AE91,92..3D BEIGE M,040 ,205 ,6K6 |
75982-12520-05 |
US $6.12 |
||
|
75985D
|
75985D
75985-12660-03 Stripe, Front Door Outside, Rh[05.1989 - 08.1991] AE91,92..3D SILVER,040 ,3E5 ,8E9 |
75985-12660-03 |
US $19.95 |
||
|
75985D
|
75985D
75985-12660-05 Stripe, Front Door Outside, Rh[05.1989 - 05.1992] AE91,92..3D BEIGE M,040 ,205 ,6K6 |
75985-12660-05 |
US $19.95 |
||
|
75986D
|
75986D
75985-12660-03 Stripe, Front Door Outside, Rh[05.1989 - 08.1991] AE91,92..3D SILVER,040 ,3E5 ,8E9 |
75985-12660-03 |
US $19.95 |
||
|
75986D
|
75986D
75985-12660-05 Stripe, Front Door Outside, Rh[05.1989 - 05.1992] AE91,92..3D BEIGE M,040 ,205 ,6K6 |
75985-12660-05 |
US $19.95 |
||
|
75991B
|
75991B
75991-12570-03 Stripe, Quarter, Rh[05.1989 - 08.1991] AE91,92..3D SILVER,040 ,3E5 ,8E9 |
75991-12570-03 |
US $13.10 |
||
|
75991B
|
75991B
75991-12570-05 Stripe, Quarter, Rh[05.1989 - 05.1992] AE91,92..3D BEIGE M,040 ,205 ,6K6 |
75991-12570-05 |
US $13.10 |
||
|
75992B
|
75992B
75992-12530-03 Stripe, Quarter, Lh[05.1989 - 08.1991] AE91,92..3D SILVER,040 ,3E5 ,8E9 |
75992-12530-03 |
US $13.10 |
||
|
75992B
|
75992B
75992-12530-05 Stripe, Quarter, Lh[05.1989 - 05.1992] AE91,92..3D BEIGE M,040 ,205 ,6K6 |
75992-12530-05 |
US $13.10 |
||
|
76915D
|
76915D
76915-12040 Mudguard, Side, Front Rh[05.1989 - 05.1992] AE91,92..3D |
76915-12040 |
US $27.66 |
||
|
76916D
|
76916D
76916-12040
Mudguard, Side, Front Lh
[05.1989 - 05.1992] AE91,92..3D |
76916-12040 |
— | ||
|
76921A
|
76921A
76921-12040 Protector, Side Mudguard, No.1[05.1989 - 05.1992] AE91,92..3D |
76921-12040 |
US $3.20 |
||
|
76922C
|
76922C
76922-12040 Protector, Side Mudguard, No.2[05.1989 - 05.1992] AE91,92..3D |
76922-12040 |
US $3.49 |
||
|
76923
|
76923
76923-12020 Retainer, Side Mudguard[05.1989 - 05.1992] AE91,92..3D |
76923-12020 |
US $19.22 |
||
|
76924
|
76924
76924-12010 Retainer, Side Mudguard, No.2[05.1989 - 05.1992] AE91,92..3D |
76924-12010 |
US $8.88 |
||
|
9010906176
|
9010906176
90109-06176 BOLT |
90109-06176 |
US $2.56 |
||
|
9015950152
|
9015950152
90159-50152
New Genuine Part
|
90159-50152 |
— | ||
|
9015960182
|
9015960182
90159-60182 SCREW |
90159-60182 |
from US $1.19 |
||
|
9015960421
|
9015960421
90159-60421 New Genuine Part |
90159-60421 |
US $1.60 |
||
|
9018304035
|
9018304035
90183-04035 New Genuine Part |
90183-04035 |
US $2.08 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9018906058
|
9018906058
90189-06058 New Genuine Part |
90189-06058 |
US $1.14 |
||
|
9024907030
|
9024907030
90249-07030 New Genuine Part |
90249-07030 |
US $3.49 |
||
|
9024907032
|
9024907032
90249-07032 New Genuine Part |
90249-07032 |
US $4.66 |
||
|
9033903014
|
9033903014
90339-03014
New Genuine Part
|
90339-03014 |
— | ||
|
9046707082
|
9046707082
90467-07082 Clip(For Luggage Compartment Trim Front Cover) |
90467-07082 |
US $2.04 |
||
| replacement | |||||
|
9046707082
|
9046707082
90467-07082-C0 Clip(For Luggage Compartment Trim Front Cover) |
90467-07082-C0 |
US $1.28 |
||
|
9046710081
|
9046710081
90467-10081 New Genuine Part |
90467-10081 |
US $0.96 |
||
|
9054006015
|
9054006015
90540-06015 New Genuine Part |
90540-06015 |
US $6.88 |
||
|
9099991043
|
9099991043
90999-91043 New Genuine Part |
90999-91043 |
US $7.86 |
||
