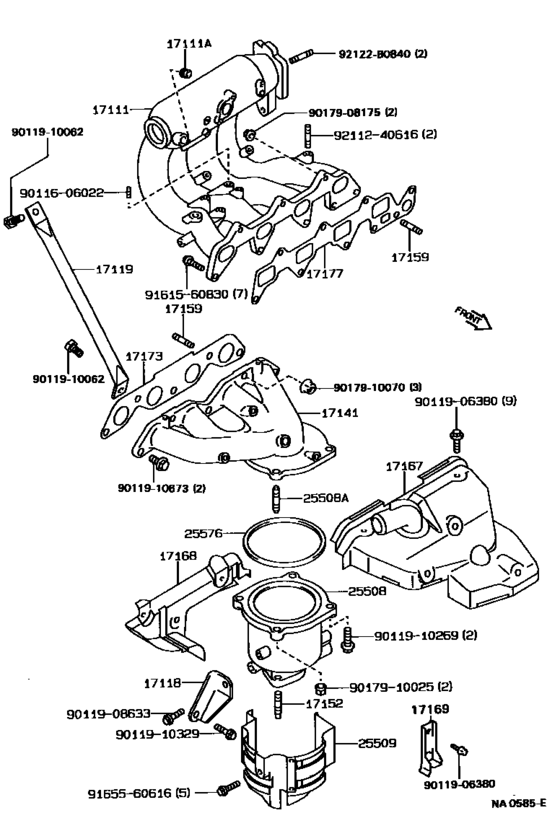

Manifold ([05.1987 - 05.1989] (8705-8905)5AFE) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- AE91
- grade
- FXZI
- body
- 3D
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1987
- To
- 05.1989
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-15040 Manifold, Intake[05.1987 - 05.1989] 5AFE..AE91 |
17101-15040 |
US $551.82 |
||
|
17111A
|
17111A
90345-51006 Plug, W/head Taper Screw, No.2[05.1987 - 05.1989] 5AFE..AE91 |
90345-51006 |
US $0.96 |
||
|
17118
|
17118
17118-15070 Stay, Manifold[05.1987 - 05.1992] 4AF#,5AF,5AFE..AE91,95 |
17118-15070 |
US $17.18 |
||
|
17119
|
17119
17139-15030 Stay, Manifold, No.2[05.1987 - 05.1989] 5AFE..AE91 |
17139-15030 |
US $40.33 |
||
|
17141
|
17141
17141-15120 Manifold, Exhaust[05.1987 - 05.1992] 4AF#,5AF,5AFE..AE91,95 |
17141-15120 |
US $337.79 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[05.1987 - 05.1988] 4AF,5AF#..AE91,95; 1C..CE9# |
90116-10058 |
from US $2.44 |
||
|
17152
|
17152
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1988 - 05.1992] 4AF#,5AF,5AFE..AE91,95 |
90116-10146 |
from US $1.91 |
||
|
17159
|
17159
92112-60825 Bolt, Stud(For Oil Filter)[05.1987 - 08.1989] 4AFE..AE95..5F INTAKE MANIFOLD SIDE; 4AFE..AE95..4FC;4AF,5AF#..AE91,95 INTAKE MANIFOLD |
92112-60825 |
US $2.56 |
||
|
17159
|
17159
92112-61032 Bolt, Stud(For Manifold To Cylinder Head)[05.1987 - 07.1989] 4AF#,5AF#..AE91,95 EXHAUST MANIFOLD |
92112-61032 |
US $3.06 |
||
|
17167
|
17167
17167-15070 Insulator, Exhaust Manifold Heat, No.1[05.1987 - 09.1991] 4AFE,5AFE..AE91,95 |
17167-15070 |
US $99.01 |
||
| replacement | |||||
|
17167
|
17167
17167-15071 Insulator, Exhaust Manifold Heat, No.1[05.1987 - 09.1991] 4AFE,5AFE..AE91,95 |
17167-15071 |
US $97.55 |
||
|
17168
|
17168
17168-15010 Insulator, Exhaust Manifold Heat, No.2[05.1987 - 05.1992] 4AF#,5AF,5AFE..AE91,95 |
17168-15010 |
US $32.76 |
||
|
17169
|
17169
17169-15010 Insulator, Exhaust Manifold Heat, No.3[01.1989 - 05.1992] 4AF#,5AF,5AFE..AE91,95 |
17169-15010 |
US $9.03 |
||
|
17173
|
17173
17173-15010 Gasket, Exhaust Manifold To Head[05.1987 - 12.1989] 4AF#,5AF#..AE91,95 |
17173-15010 |
US $28.25 |
||
| replacement | |||||
|
17173
|
17173
17173-15011 Gasket, Exhaust Manifold To Head[05.1987 - 12.1989] 4AF#,5AF#..AE91,95 |
17173-15011 |
US $29.53 |
||
|
17177
|
17177
17171-16030
Gasket, Intake Manifold To Head, No.1
[05.1987 - 05.1989] 5AFE..AE91 |
17171-16030 |
— | ||
| replacement | |||||
|
17177
|
17177
17171-16031 Gasket, Intake Manifold To Head, No.1[05.1987 - 05.1989] 5AFE..AE91 |
17171-16031 |
US $15.50 |
||
|
25508
|
25508
25508-15020 Converter Sub-Assy, Manifold[05.1987 - 05.1992] 4AF,5AFE,5AF..AE91,95 |
25508-15020 |
US $646.46 |
||
|
25508A
|
25508A
90116-10017 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1987 - 05.1988] 2E..EE96; 4AF,5AF#..AE91,95 |
90116-10017 |
from US $2.65 |
||
|
25508A
|
25508A
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1988 - 05.1992] 4AF#,5AF,5AFE..AE91,95 |
90116-10146 |
from US $1.91 |
||
|
25509
|
25509
25509-15020 Insulator Sub-Assy, Manifold Convertor[05.1987 - 01.1989] 4AF,5AF#..AE91,95 |
25509-15020 |
US $27.66 |
||
| replacement | |||||
|
25509
|
25509
25509-15021 Insulator Sub-Assy, Manifold Convertor[05.1987 - 01.1989] 4AF,5AF#..AE91,95 |
25509-15021 |
US $27.52 |
||
|
25509
|
25509
25509-15021 Insulator Sub-Assy, Manifold Convertor[01.1989 - 05.1992] 4AF#,5AF,5AFE..AE91,95 |
25509-15021 |
US $27.52 |
||
|
25576
|
25576
25576-15010 Gasket, Manifold Converter[05.1987 - 08.1989] 2E..EE90,97; 4AF#,5AF,5AFE..AE91,95 |
25576-15010 |
US $16.16 |
||
| replacement | |||||
|
25576
|
25576
25576-15020 Gasket, Manifold Converter[05.1987 - 08.1989] 2E..EE90,97; 4AF#,5AF,5AFE..AE91,95 |
25576-15020 |
US $14.50 |
||
|
92122B0840
|
92122B0840
92122-B0840 New Genuine Part |
92122-B0840 |
US $1.02 |
||
|
9011606022
|
9011606022
90116-06022 Bolt, Stud(For Valve Push Rod Cover) |
90116-06022 |
from US $1.95 |
||
|
9011906380
|
9011906380
90119-06380
New Genuine Part
|
90119-06380 |
— | ||
| replacement | |||||
|
9011906380
|
9011906380
90119-06817 BOLT WWASHER |
90119-06817 |
US $1.12 |
||
|
9011908633
|
9011908633
90119-08633 New Genuine Part |
90119-08633 |
from US $1.60 |
||
|
9011910062
|
9011910062
90119-10062
New Genuine Part
|
90119-10062 |
— | ||
| replacement | |||||
|
9011910062
|
9011910062
90119-10640 New Genuine Part |
90119-10640 |
US $4 |
||
|
9011910269
|
9011910269
90119-10269 Bolt |
90119-10269 |
US $8.48 |
||
|
9011910329
|
9011910329
90119-10329 New Genuine Part |
90119-10329 |
US $1.60 |
||
|
9011910673
|
9011910673
90119-10673
New Genuine Part
|
90119-10673 |
— | ||
|
9017908175
|
9017908175
90179-08175 New Genuine Part |
90179-08175 |
US $1.44 |
||
|
9017910025
|
9017910025
90179-10025 NUT |
90179-10025 |
US $2.24 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9161560830
|
9161560830
91615-60830 Bolt(For Clutch Release Cylinder Setting) |
91615-60830 |
US $2.33 |
||
| replacement | |||||
|
9161560830
|
9161560830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.50 |
||
|
9165560616
|
9165560616
91655-60616
Bolt (For Rear Differential Breather Plug Oil Deflector)
|
91655-60616 |
— | ||
| replacement | |||||
|
9165560616
|
9165560616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9211240616
|
9211240616
92112-40616
Bolt, Stud(For Cold Start Injector)
|
92112-40616 |
— | ||
