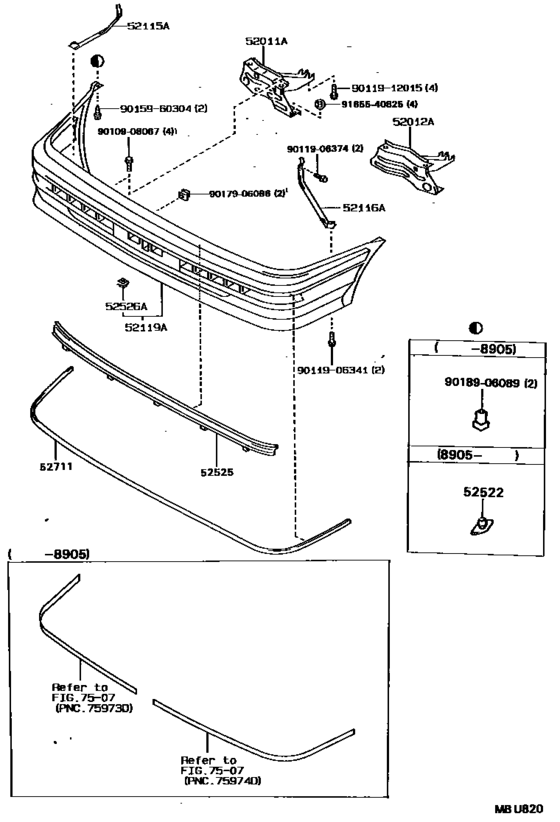

Front Bumper & Bumper Stay ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- AE92
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1987
- To
- 05.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52011A
|
52011A
52011-12390 Arm Sub-Assy, Front Bumper, Rh[05.1987 - 05.1989] AE9# |
52011-12390 |
US $69.89 |
||
|
52012A
|
52012A
52012-12400 Arm Sub-Assy, Front Bumper, Lh[05.1987 - 05.1989] AE9# |
52012-12400 |
US $69.89 |
||
|
52115A
|
52115A
52115-12280
Support, Front Bumper Side, Rh
[05.1987 - 05.1989] AE9# |
52115-12280 |
— | ||
|
52116A
|
52116A
52116-12220
Support, Front Bumper Side, Lh
[05.1987 - 05.1989] AE9# |
52116-12220 |
— | ||
|
52119A
|
52119A
52119-1A380-02 Cover, Front Bumper[05.1987 - 05.1989] AE9#..G,GTV,ZI SUPER RED 2,3E5; AE91..L RIME,SUPER RED 2,3E5 |
52119-1A380-02 |
US $679.95 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1A250 Cover, Front Bumper[05.1987 - 05.1989] AE9#..G,GTV,ZI SUPER RED 2,3E5; AE91..L RIME,SUPER RED 2,3E5 |
52119-1A250 |
US $394.58 |
||
|
52119A
|
52119A
52119-1A380-03 Cover, Front Bumper[05.1987 - 05.1989] AE9#..G,GTV,ZI GRAY M,168; AE91..L RIME,GRAY M,168 |
52119-1A380-03 |
US $679.95 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1A250 Cover, Front Bumper[05.1987 - 05.1989] AE9#..G,GTV,ZI GRAY M,168; AE91..L RIME,GRAY M,168 |
52119-1A250 |
US $394.58 |
||
|
52119A
|
52119A
52119-1A380-04 Cover, Front Bumper[05.1987 - 05.1988] AE9#..G,GTV,ZI BLUE M,8D7; AE91..L RIME,BLUE M,8D7 |
52119-1A380-04 |
US $679.95 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1A250 Cover, Front Bumper[05.1987 - 05.1988] AE9#..G,GTV,ZI BLUE M,8D7; AE91..L RIME,BLUE M,8D7 |
52119-1A250 |
US $394.58 |
||
|
52119A
|
52119A
52119-1A380-08 Cover, Front Bumper[05.1987 - 05.1989] AE9#..G,GTV,ZI SUPER WHITE 2,040; AE91..L RIME,SUPER WHITE 2,040 |
52119-1A380-08 |
US $679.95 |
||
|
52119A
|
52119A
52119-1A380-14 Cover, Front Bumper[05.1988 - 05.1989] AE9#..G,GTV,ZI BLUE M,8B5; AE91..L RIME,BLUE M,8B5 |
52119-1A380-14 |
US $679.95 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1A250 Cover, Front Bumper[05.1988 - 05.1989] AE9#..G,GTV,ZI BLUE M,8B5; AE91..L RIME,BLUE M,8B5 |
52119-1A250 |
US $394.58 |
||
|
52119A
|
52119A
52119-1A400-02 Cover, Front Bumper[05.1987 - 05.1989] AE92..GTAPX,GTZ SUPER RED 2,3E5; AE91..G ｱﾘ(ﾌﾙ ｶﾗ-),SUPER RED 2,3E5; AE9#..GTV,ZI ｱﾘ(ﾌﾙ ｶﾗ-),SUPER RED 2,3E5 |
52119-1A400-02 |
US $679.95 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1A250 Cover, Front Bumper[05.1987 - 05.1989] AE92..GTAPX,GTZ SUPER RED 2,3E5; AE91..G ｱﾘ(ﾌﾙ ｶﾗ-),SUPER RED 2,3E5; AE9#..GTV,ZI ｱﾘ(ﾌﾙ ｶﾗ-),SUPER RED 2,3E5 |
52119-1A250 |
US $394.58 |
||
|
52119A
|
52119A
52119-1A400-03 Cover, Front Bumper[05.1987 - 05.1989] AE92..GTAPX,GTZ GRAY M,168; AE91..G ｱﾘ(ﾌﾙ ｶﾗ-),GRAY M,168; AE9#..GTV,ZI ｱﾘ(ﾌﾙ ｶﾗ-),GRAY M,168 |
52119-1A400-03 |
US $679.95 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1A250 Cover, Front Bumper[05.1987 - 05.1989] AE92..GTAPX,GTZ GRAY M,168; AE91..G ｱﾘ(ﾌﾙ ｶﾗ-),GRAY M,168; AE9#..GTV,ZI ｱﾘ(ﾌﾙ ｶﾗ-),GRAY M,168 |
52119-1A250 |
US $394.58 |
||
|
52119A
|
52119A
52119-1A400-05 Cover, Front Bumper[05.1987 - 05.1989] AE9#..G,GTAPX,GTV,GTZ,ZI BEIGE M,28E |
52119-1A400-05 |
US $679.95 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1A250 Cover, Front Bumper[05.1987 - 05.1989] AE9#..G,GTAPX,GTV,GTZ,ZI BEIGE M,28E |
52119-1A250 |
US $394.58 |
||
|
52119A
|
52119A
52119-1A400-08 Cover, Front Bumper[05.1987 - 05.1989] AE92..GTAPX,GTZ SUPER WHITE 2,040; AE91..G ｱﾘ(ﾌﾙ ｶﾗ-),SUPER WHITE 2,040; AE9#..GTV,ZI ｱﾘ(ﾌﾙ ｶﾗ-),SUPER WHITE 2,040 |
52119-1A400-08 |
US $679.95 |
||
|
52119A
|
52119A
52119-1A400-13 Cover, Front Bumper[05.1987 - 05.1989] AE9#..G,GTAPX,GTV,GTZ,ZI SILVER M,23E |
52119-1A400-13 |
US $679.95 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1A250 Cover, Front Bumper[05.1987 - 05.1989] AE9#..G,GTAPX,GTV,GTZ,ZI SILVER M,23E |
52119-1A250 |
US $394.58 |
||
|
52526A
|
52526A
52565-12040 Retainer, Front Bumper, Lower Center[05.1987 - 05.1989] AE9# |
52565-12040 |
US $4.84 |
||
|
9010908067
|
9010908067
90109-08067 BOLT |
90109-08067 |
US $2.15 |
||
|
9011906341
|
9011906341
90119-06341 BOLT |
90119-06341 |
US $2.15 |
||
|
9011906374
|
9011906374
90119-06374
BOLT
|
90119-06374 |
— | ||
| replacement | |||||
|
9011906374
|
9011906374
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $1.08 |
||
|
9011912015
|
9011912015
90119-12015
New Genuine Part
|
90119-12015 |
— | ||
| replacement | |||||
|
9011912015
|
9011912015
90119-12297 New Genuine Part |
90119-12297 |
US $4.84 |
||
|
9015960304
|
9015960304
90159-60304 SCREW |
90159-60304 |
from US $1.01 |
||
|
9017906086
|
9017906086
90179-06086 NUT |
90179-06086 |
US $3.05 |
||
|
9018906089
|
9018906089
90189-06089 Retainer, Front Bumper Upper Side |
90189-06089 |
US $2.33 |
||
|
9165540825
|
9165540825
91655-40825
New Genuine Part
|
91655-40825 |
— | ||
| replacement | |||||
|
9165540825
|
9165540825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
