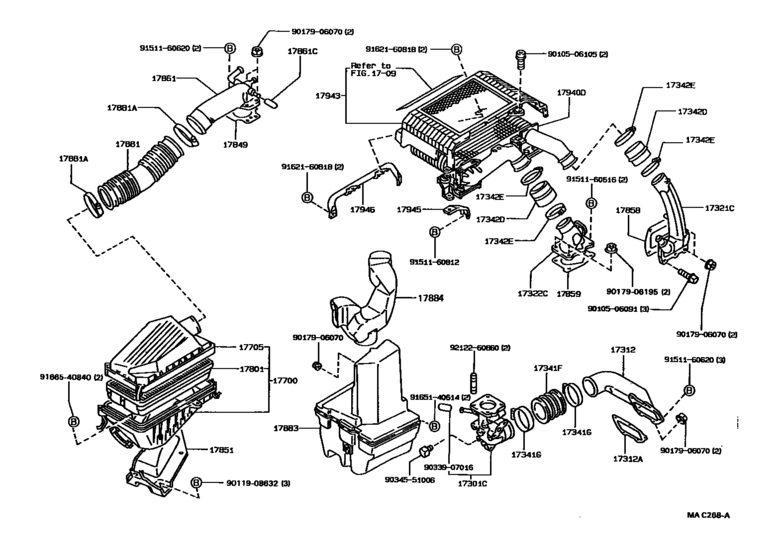

Air Cleaner ([05.1989 - ] (8905- )4AGZE) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- AE92
- ENGINE
- 4AGZE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17301C
|
17301C
17301-16010 Duct Sub-Assy, Air Inlet, No.1[05.1987 - 04.1989] 4AGZE..AE92 |
17301-16010 |
US $152.88 |
||
| replacement | |||||
|
17301C
|
17301C
17301-16011 Duct Sub-Assy, Air Inlet, No.1[05.1987 - 04.1989] 4AGZE..AE92 |
17301-16011 |
US $149.97 |
||
|
17301C
|
17301C
17301-16011 Duct Sub-Assy, Air Inlet, No.1[04.1989 - 06.1991] 4AGZE..AE92 |
17301-16011 |
US $149.97 |
||
|
17312
|
17312
17312-16010 Duct, Air Inlet, No.2[05.1987 - 06.1991] 4AGZE..AE92 |
17312-16010 |
US $104.83 |
||
|
17312A
|
17312A
17857-16010
Gasket, Air Inlet Duct, No.2
[05.1987 - 06.1991] 4AGZE..AE92 |
17857-16010 |
— | ||
|
17321C
|
17321C
17321-16020 Duct, Air Outlet, No.1[05.1987 - 06.1991] 4AGZE..AE92 |
17321-16020 |
US $136.86 |
||
|
17322C
|
17322C
17322-16010 Duct, Air Outlet, No.2[05.1987 - 06.1991] 4AGZE..AE92 |
17322-16010 |
US $71.78 |
||
|
17341F
|
17341F
17341-16100
Hose, Air, No.1
[05.1987 - 06.1991] 4AGZE..AE92 |
17341-16100 |
— | ||
|
17341G
|
17341G
90460-73001
Clamp Or Clip(For Air Hose, No.1)
[05.1987 - 06.1991] 4AGZE..AE92 |
90460-73001 |
— | ||
| replacement | |||||
|
17341G
|
17341G
90460-73011 Clamp Or Clip(For Air Hose, No.1)[05.1987 - 06.1991] 4AGZE..AE92 |
90460-73011 |
US $7.04 |
||
|
17342D
|
17342D
17342-16070
Hose, Air, No.2
[05.1987 - 06.1991] 4AGZE..AE92 |
17342-16070 |
— | ||
|
17342E
|
17342E
90460-65006 Clamp Or Clip(For Air Hose, No.2)[05.1987 - 06.1991] 4AGZE..AE92 |
90460-65006 |
US $5.39 |
||
| replacement | |||||
|
17342E
|
17342E
90460-65002 Clamp Or Clip(For Air Hose, No.1)[05.1987 - 06.1991] 4AGZE..AE92 |
90460-65002 |
from US $4.29 |
||
|
17700
|
17700
17700-16440 Cleaner Assy, Air[05.1987 - 05.1989] 4AGZE..AE92 |
17700-16440 |
US $336.34 |
||
|
17700
|
17700
17700-16660 Cleaner Assy, Air[05.1989 - 06.1991] 4AGZE..AE92 |
17700-16660 |
US $337.79 |
||
|
17705
|
17705
17705-16180
Cap Sub-Assy, Air Cleaner
[05.1987 - 05.1989] 4AGZE..AE92 |
17705-16180 |
— | ||
|
17705
|
17705
17705-16340
Cap Sub-Assy, Air Cleaner
[05.1989 - 06.1991] 4AGZE..AE92 |
17705-16340 |
— | ||
|
17801
|
17801
17801-74020 Element Sub-Assy, Air Cleaner Filter[05.1987 - 05.1989] 4AGZE..AE92 |
17801-74020 |
from US $37.21 |
||
|
17849
|
17849
17849-16010 Gasket, Intake Air Connector[05.1987 - 06.1991] 4AGZE..AE92 |
17849-16010 |
US $4.80 |
||
|
17851
|
17851
17851-15010 Bracket, Air Cleaner Support[05.1987 - 06.1991] 4AG#,5AFE,5AFHE..AE9# |
17851-15010 |
US $39.02 |
||
|
17858
|
17858
17858-16010
Gasket, Air Outlet Duct, No.1
[05.1987 - 06.1991] 4AGZE..AE92 |
17858-16010 |
— | ||
|
17859
|
17859
17859-16010
Gasket, Air Outlet Duct, No.2
[05.1987 - 06.1991] 4AGZE..AE92 |
17859-16010 |
— | ||
|
17861
|
17861
17860-16020 Connector, Intake Air[05.1987 - 06.1991] 4AGZE..AE92 |
17860-16020 |
US $132.50 |
||
|
17861C
|
17861C
90339-07016 Cap(For Intake Air Connector)[05.1987 - 06.1991] 4AGZE..AE92 |
90339-07016 |
US $2.56 |
||
|
17881
|
17881
17881-16150
Hose, Air Cleaner, No.1
[05.1987 - 06.1991] 4AGZE..AE92 |
17881-16150 |
— | ||
|
17881A
|
17881A
90460-80001
Clamp, Hose
[05.1989 - 06.1989] 4AG#..AE92 |
90460-80001 |
— | ||
| replacement | |||||
|
17881A
|
17881A
90460-80006 Clamp, Hose[05.1989 - 06.1989] 4AG#..AE92 |
90460-80006 |
from US $9.07 |
||
|
17881A
|
17881A
90460-80002 Clamp(For Air Cleaner Hose, No.1)[08.1989 - 06.1991] 4AG#..AE92 |
90460-80002 |
US $6.84 |
||
| replacement | |||||
|
17881A
|
17881A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[08.1989 - 06.1991] 4AG#..AE92 |
96111-10800 |
from US $2.56 |
||
|
17881A
|
17881A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[08.1987 - 05.1989] 4AG#..AE92 |
96111-10800 |
from US $2.56 |
||
|
17881A
|
17881A
96111-10830 Clamp, Hose(For Air Connector)[05.1987 - 08.1987] 4AGZE..AE92 |
96111-10830 |
from US $2.88 |
||
|
17883
|
17883
17883-16040 Hose, Air Cleaner, No.3[05.1987 - 05.1988] 4AG#,5AFE..AE9# |
17883-16040 |
US $90.27 |
||
|
17883
|
17883
17883-16041 Hose, Air Cleaner, No.3[05.1988 - 05.1989] 4AG#,5AFE..AE9# |
17883-16041 |
US $66.54 |
||
|
17884
|
17884
17882-16100 Hose, Air Cleaner, No.4[05.1987 - 05.1989] 4AG#,5AFE..AE9# |
17882-16100 |
US $26.30 |
||
|
17884
|
17884
17882-16130
Hose, Air Cleaner, No.4
[05.1989 - 06.1991] 4AG#..AE92 |
17882-16130 |
— | ||
|
17940D
|
17940D
17940-16020 Intercooler Assy[05.1987 - 06.1991] 4AGZE..AE92 |
17940-16020 |
US $845.94 |
||
|
17943
|
17943
17943-16020
Protector, Intercooler
[05.1987 - 06.1991] 4AGZE..AE92 |
17943-16020 |
— | ||
| replacement | |||||
|
17943
|
17943
17943-16030
Protector, Intercooler
[05.1987 - 06.1991] 4AGZE..AE92 |
17943-16030 |
— | ||
|
17945
|
17945
17945-16010 Bracket, Intercooler Support[05.1987 - 06.1991] 4AGZE..AE92 |
17945-16010 |
US $19.22 |
||
|
17946
|
17946
17946-16010 Bracket, Intercooler Support, No.2[05.1987 - 06.1991] 4AGZE..AE92 |
17946-16010 |
US $88.82 |
||
|
9010506091
|
9010506091
90105-06091 New Genuine Part |
90105-06091 |
US $1.60 |
||
|
9010506105
|
9010506105
90105-06105 New Genuine Part |
90105-06105 |
US $1.60 |
||
| replacement | |||||
|
9010506105
|
9010506105
91511-F0620 New Genuine Part |
91511-F0620 |
US $0.51 |
||
|
9011908632
|
9011908632
90119-08632 New Genuine Part |
90119-08632 |
US $2.04 |
||
| replacement | |||||
|
9011908632
|
9011908632
91621-40816 BOLTWWASHER |
91621-40816 |
from US $1.05 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017906195
|
9017906195
90179-06195 New Genuine Part |
90179-06195 |
US $1.92 |
||
|
9033907016
|
9033907016
90339-07016 Cap(For Intake Air Connector) |
90339-07016 |
US $2.56 |
||
|
9034551006
|
9034551006
90345-51006 Plug, W/head Taper Screw, No.2 |
90345-51006 |
from US $0.96 |
||
|
9151160616
|
9151160616
91511-60616
BOLTFLANGE
|
91511-60616 |
— | ||
| replacement | |||||
|
9151160616
|
9151160616
91511-B0616 BOLT, FLANGE |
91511-B0616 |
from US $0.96 |
||
|
9151160620
|
9151160620
91511-60620
Bolt(For Clutch Release Bearing Hub Retainer)
|
91511-60620 |
— | ||
| replacement | |||||
|
9151160620
|
9151160620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.76 |
||
|
9151160812
|
9151160812
91511-60812
BOLT
|
91511-60812 |
— | ||
| replacement | |||||
|
9151160812
|
9151160812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.44 |
||
|
9162160818
|
9162160818
91621-60818
Bolt(For Automatic Transmission Case Protector)
|
91621-60818 |
— | ||
| replacement | |||||
|
9162160818
|
9162160818
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
|
9166540840
|
9166540840
91665-40840 New Genuine Part |
91665-40840 |
US $2.18 |
||
| replacement | |||||
|
9166540840
|
9166540840
91661-60840 Bolt |
91661-60840 |
US $2.24 |
||
|
9212260860
|
9212260860
92122-60860 Bolt, Stud(For Water Outlet) |
92122-60860 |
US $2.62 |
||
