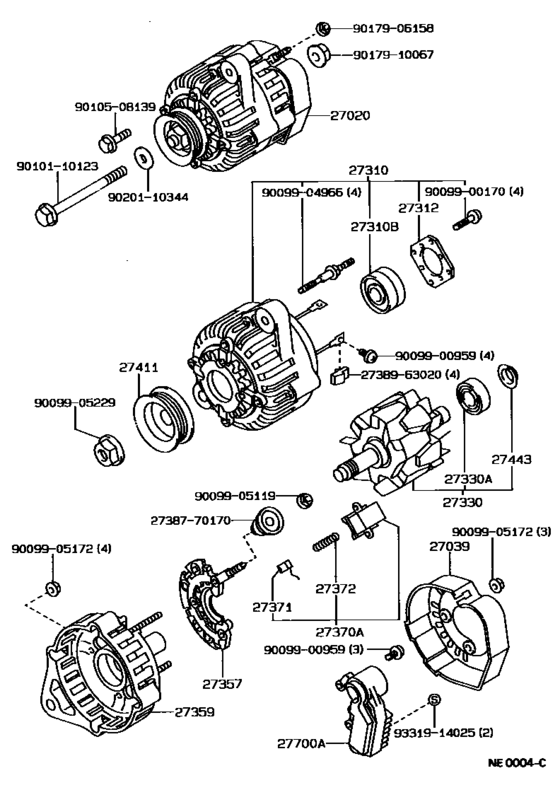

Alternator ([05.1987 - ] 12V 60A (8705- )4AGZE) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- AE92
- ENGINE
- 4AGZE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-16131
Alternator Assy
[05.1987 - 06.1991] 4AGZE..AE92 １２Ｖ ６０Ａ |
27060-16131 |
— | ||
|
27039
|
27039
27039-72010
Cover, Alternator Rear End
[05.1987 - 05.1988] 4AG#,5AF#..AE9# |
27039-72010 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-15171
Cover, Alternator Rear End
[05.1987 - 05.1988] 4AG#,5AF#..AE9# |
27039-15171 |
— | ||
|
27310
|
27310
27310-16161
Frame Assy, Drive End, Alternator
[05.1987 - 06.1991] 4AGZE..AE92 |
27310-16161 |
— | ||
|
27310B
|
27310B
90099-10179
Bearing(For Alternator Drive End Frame)
[05.1987 - 06.1991] 4AGZE..AE92 |
90099-10179 |
— | ||
|
27312
|
27312
27312-72100
Plate, Bearing Retainer, Alternator
[05.1987 - 06.1991] 4AGZE..AE92 |
27312-72100 |
— | ||
|
27330
|
27330
27330-16161
Rotor Assy, Alternator
[05.1987 - 06.1991] 4AGZE..AE92 |
27330-16161 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[05.1987 - 06.1991] 4AG#,5AF#..AE9# |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-16160
Holder, Alternator, W/rectifier
[05.1987 - 06.1991] 4AGZE..AE92 |
27357-16160 |
— | ||
|
27359
|
27359
27359-16180
Frame, Alternator Rectifier End
[05.1987 - 05.1988] 4AG#..AE92 |
27359-16180 |
— | ||
| replacements | |||||
|
27359
|
27359
27359-16181
Frame, Alternator Rectifier End
[05.1987 - 05.1988] 4AG#..AE92 |
27359-16181 |
— | ||
|
27359
|
27359
27384-16380
Washer
[05.1987 - 05.1988] 4AG#..AE92 |
27384-16380 |
— | ||
|
27370A
|
27370A
27370-35060 Holder Assy, Alternator Brush[05.1987 - 06.1991] 4AGZE..AE92 |
27370-35060 |
from US $17.08 |
||
|
27371
|
27371
27371-63020
Brush, Alternator
[05.1987 - 05.1988] 4AG#,5AF#..AE9# |
27371-63020 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-70300 Brush, Alternator[05.1987 - 05.1988] 4AG#,5AF#..AE9# |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-63020
Spring, Alternator Brush
[05.1989 - 06.1991] 4AG#,5AF#..AE9#..5F |
27372-63020 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[05.1989 - 06.1991] 4AG#,5AF#..AE9#..5F |
27372-87501 |
— | ||
|
27372
|
27372
27372-72100
Spring, Alternator Brush
[05.1987 - 05.1988] 4AG#,5AF#..AE9# |
27372-72100 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[05.1987 - 05.1988] 4AG#,5AF#..AE9# |
27372-87501 |
— | ||
|
27411
|
27411
27411-16012
Pulley, Alternator
[05.1987 - 06.1991] 4AGZE..AE92 |
27411-16012 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[05.1987 - 06.1991] 4AG#,5AF#..AE9# |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-63021 Regulator Assy, Generator[05.1987 - 04.1988] 4AGZE,5AF#..AE9# |
27700-63021 |
US $285.38 |
||
| replacement | |||||
|
27700A
|
27700A
27700-70030 Regulator Assy, Generator[05.1987 - 04.1988] 4AGZE,5AF#..AE9# |
27700-70030 |
US $263.54 |
||
|
27700A
|
27700A
27700-70030 Regulator Assy, Generator[12.1988 - 05.1989] 4AGZE,5AF#..AE9# |
27700-70030 |
US $263.54 |
||
|
2738770170
|
2738770170
27387-70170
Insulator, Terminal
|
27387-70170 |
— | ||
|
2738963020
|
2738963020
27389-63020
Insulator, Terminal
|
27389-63020 |
— | ||
|
9009900170
|
9009900170
90099-00170
New Genuine Part
|
90099-00170 |
— | ||
|
9009900959
|
9009900959
90099-00959
New Genuine Part
|
90099-00959 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9009905229
|
9009905229
90099-05229
New Genuine Part
|
90099-05229 |
— | ||
|
9010110123
|
9010110123
90101-10123
New Genuine Part
|
90101-10123 |
— | ||
|
9010508139
|
9010508139
90105-08139
Bolt(For Transaxle Case & Engine Setting)
|
90105-08139 |
— | ||
| replacement | |||||
|
9010508139
|
9010508139
91511-C0835 Bolt(For Transaxle Case & Engine Setting) |
91511-C0835 |
from US $0.84 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9017910067
|
9017910067
90179-10067 Nut (For Rear Axle Shaft) |
90179-10067 |
from US $1.61 |
||
|
9020110344
|
9020110344
90201-10344 Washer, Plate(For Cylinder Head Set) |
90201-10344 |
from US $0.99 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.25 |
||
