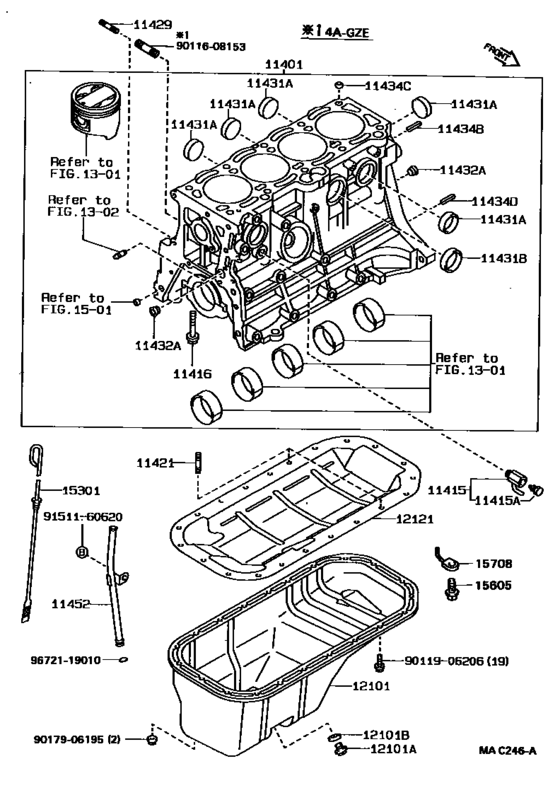

Cylinder Block ([05.1987 - ] (8705- )4AG#) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- AE92
- ENGINE
- 4AGZE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-19455 Block Sub-Assy, Cylinder[05.1987 - 05.1989] 4AGZE..AE92 |
11401-19455 |
US $2,446.08 |
||
| replacement | |||||
|
11401
|
11401
11401-19456 Block Sub-Assy, Cylinder[05.1987 - 05.1989] 4AGZE..AE92 |
11401-19456 |
US $2,446.08 |
||
|
11401
|
11401
11401-19485 Block Sub-Assy, Cylinder[05.1989 - 01.1991] 4AGZE..AE92 |
11401-19485 |
US $2,431.52 |
||
| replacement | |||||
|
11401
|
11401
11401-19486 Block Sub-Assy, Cylinder[05.1989 - 01.1991] 4AGZE..AE92 |
11401-19486 |
US $2,373.28 |
||
|
11401
|
11401
11401-19486 Block Sub-Assy, Cylinder[01.1991 - 06.1991] 4AGZE..AE92 |
11401-19486 |
US $2,373.28 |
||
|
11415
|
11415
90910-09088
Cock Sub-Assy, Water Drain(For Cylinder Block)
[05.1987 - 03.1988] 4AG#,5AF#..AE9# |
90910-09088 |
— | ||
| replacement | |||||
|
11415
|
11415
90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)[05.1987 - 03.1988] 4AG#,5AF#..AE9# |
90345-52003 |
US $4.12 |
||
|
11415A
|
11415A
90345-52013 Cock Sub-Assy, Water Drain(For Cylinder Block)[06.1989 - 01.1990] 4AGZE..AE92 |
90345-52013 |
US $5.39 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[05.1987 - 03.1988] 4AG#,5AF#..AE9# |
90910-09087 |
from US $3.02 |
||
|
11416
|
11416
90105-10007 Bolt(For Crankshaft Bearing Cap Set)[05.1987 - 05.1989] 4AG#,5AF#..AE9# |
90105-10007 |
US $6.81 |
||
|
11421
|
11421
90116-06022 Bolt, Stud(For Valve Push Rod Cover)[05.1987 - 06.1991] 4AG#,5AF#..AE9# |
90116-06022 |
US $2.33 |
||
|
11429
|
11429
90116-08170 Bolt, Stud(For Alternator Bracket)[05.1987 - 06.1991] 4AG#..AE92 |
90116-08170 |
US $3.05 |
||
|
11431A
|
11431A
96411-43500 Plug, Tight, No.1[05.1987 - 05.1989] 4AG#..AE92 |
96411-43500 |
from US $3.59 |
||
|
11431B
|
11431B
96411-44000 Plug, Tight, No.1[05.1987 - 05.1989] 4AG#,5AF#..AE9# |
96411-44000 |
from US $4.02 |
||
|
11432A
|
11432A
90344-53008 Plug, W/head Taper Screw, No.2[05.1987 - 05.1989] 4AG#,5AF#..AE9# |
90344-53008 |
US $1.97 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[05.1987 - 06.1991] 4AG#,5AF#..AE9# 長さ＝２２，外径＝１０ |
90250-10113 |
from US $1.17 |
||
|
11434C
|
11434C
90253-13017 Pin, Ring W/head[05.1987 - 06.1991] 4AG#,5AF#..AE9# 長さ＝１２，外径＝１３ |
90253-13017 |
from US $1.35 |
||
|
11434D
|
11434D
90250-06003 Pin, Straight[05.1987 - 06.1991] 4AGZE..AE92 長さ＝１４，外径＝６ |
90250-06003 |
US $1.61 |
||
|
11452
|
11452
11452-16010
Guide, Oil Level Gage
[05.1987 - 06.1989] 4AG#..AE92 |
11452-16010 |
— | ||
| replacement | |||||
|
11452
|
11452
11452-16030
Guide, Oil Level Gage
[05.1987 - 06.1989] 4AG#..AE92 |
11452-16030 |
— | ||
|
11452
|
11452
11452-16030
Guide, Oil Level Gage
[06.1989 - 06.1991] 4AG#..AE92 |
11452-16030 |
— | ||
|
12101
|
12101
12101-15070 Pan Sub-Assy, Oil[05.1987 - 05.1989] 4AG#,5AF#..AE9# |
12101-15070 |
US $161.62 |
||
|
12101
|
12101
12101-16080 Pan Sub-Assy, Oil[05.1989 - 11.1989] 4AG#..AE92 |
12101-16080 |
US $171.81 |
||
| replacement | |||||
|
12101
|
12101
12101-15070 Pan Sub-Assy, Oil[05.1989 - 11.1989] 4AG#..AE92 |
12101-15070 |
US $161.62 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[05.1987 - 12.1988] 4AG#,5AF#..AE9# |
90341-12012 |
from US $2.87 |
||
|
12101A
|
12101A
90341-12026
Plug, Drain
[12.1988 - 06.1991] 4AG#,5AF#..AE9# |
90341-12026 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[12.1988 - 06.1991] 4AG#,5AF#..AE9# |
90341-12012 |
from US $2.87 |
||
|
12101B
|
12101B
90430-12019
Gasket(For Oil Pan Drain Plug)
[05.1987 - 05.1989] 4AG#,5AF#..AE9# |
90430-12019 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12028 Gasket (For Drain Plug)[05.1987 - 05.1989] 4AG#,5AF#..AE9# |
90430-12028 |
from US $1.11 |
||
|
12101B
|
12101B
90430-12027
Gasket(For Oil Pan Drain Plug)
[05.1990 - 06.1991] 4AG#,5AF#..AE9# |
90430-12027 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[05.1990 - 06.1991] 4AG#,5AF#..AE9# |
90430-12031 |
from US $0.84 |
||
|
12121
|
12121
12122-16011 Plate, Oil Pan Baffle, No.1[05.1987 - 05.1989] 4AG#..AE92 |
12122-16011 |
US $46.82 |
||
|
15301
|
15301
15301-16040
Gage Sub-Assy, Oil Level
[05.1987 - 11.1987] 4AG#..AE92 |
15301-16040 |
— | ||
| replacement | |||||
|
15301
|
15301
15301-16060
Gage Sub-Assy, Oil Level
[05.1987 - 11.1987] 4AG#..AE92 |
15301-16060 |
— | ||
|
15301
|
15301
15301-16041
Gage Sub-Assy, Oil Level
[11.1987 - 05.1989] 4AG#..AE92 |
15301-16041 |
— | ||
| replacement | |||||
|
15301
|
15301
15301-16060
Gage Sub-Assy, Oil Level
[11.1987 - 05.1989] 4AG#..AE92 |
15301-16060 |
— | ||
|
15301
|
15301
15301-16060
Gage Sub-Assy, Oil Level
[05.1989 - 06.1991] 4AG#..AE92 |
15301-16060 |
— | ||
|
15605
|
15605
15703-16010 Valve Sub-Assy, Oil Check[05.1989 - 06.1991] 4AG#..AE92 |
15703-16010 |
US $26.88 |
||
|
15708
|
15708
15708-16010 Nozzle Sub-Assy, Oil, No.1[05.1989 - 06.1991] 4AG#..AE92 NO.1,NO.2,NO.4 |
15708-16010 |
US $26.88 |
||
|
15708
|
15708
15708-16020
Nozzle Sub-Assy, Oil, No.1
[05.1989 - 06.1991] 4AG#..AE92 ＮＯ．３ |
15708-16020 |
— | ||
|
9011608153
|
9011608153
90116-08153 New Genuine Part |
90116-08153 |
US $2.51 |
||
|
9011906206
|
9011906206
90119-06206 New Genuine Part |
90119-06206 |
US $2.51 |
||
|
9017906195
|
9017906195
90179-06195 New Genuine Part |
90179-06195 |
US $2.15 |
||
|
9151160620
|
9151160620
91511-60620
Bolt(For Clutch Release Bearing Hub Retainer)
|
91511-60620 |
— | ||
| replacement | |||||
|
9151160620
|
9151160620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.72 |
||
|
9672119010
|
9672119010
96721-19010 Ring, O(For Oil Level Gage Guide) |
96721-19010 |
from US $1.60 |
||
