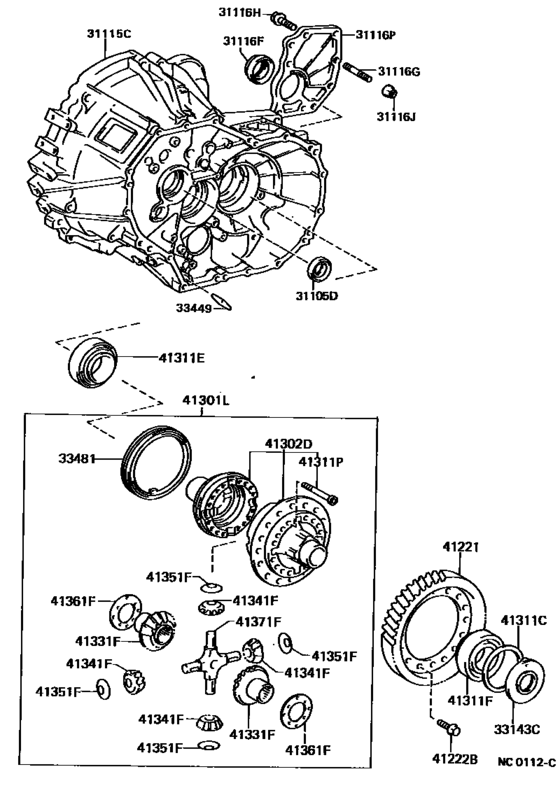

Front Axle Housing & Differential ([05.1987 - ] E52,E58 (8705- )SPC) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- AE92
- ENGINE
- 4AGZE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105D
|
31105D
90311-30006
Seal, Oil, No.1(For Front Transaxle Case)
[05.1987 - 06.1991] AE92..SPC |
90311-30006 |
— | ||
| replacement | |||||
|
31105D
|
31105D
90311-30017 Seal, Oil, No.1(For Front Transaxle Case)OIL, NO.1(FOR FRONT TRANSAXLE CASE) [05.1987 - 06.1991] AE92..SPC |
90311-30017 |
from US $5.20 |
||
|
31115C
|
31115C
31115-12070 Case, Transaxle[06.1989 - 06.1991] AE92..SPC |
31115-12070 |
US $486.30 |
||
| replacement | |||||
|
31115C
|
31115C
31115-12071 Case, Front Transaxle(Mtm)[06.1989 - 06.1991] AE92..SPC |
31115-12071 |
US $486.30 |
||
|
31115C
|
31115C
31115-17012 Case, Transaxle[05.1987 - 04.1988] AE92..SPC |
31115-17012 |
US $519.79 |
||
| replacements | |||||
|
31115C
|
31115C
31115-12071 Case, Front Transaxle(Mtm)[05.1987 - 04.1988] AE92..SPC |
31115-12071 |
US $486.30 |
||
|
31115C
|
31115C
90407-16017 Elbow (For Manual Transmission Oil Cooler Tube)[05.1987 - 04.1988] AE92..SPC |
90407-16017 |
US $8.56 |
||
|
31115C
|
31115C
31115-17013 Case, Transaxle[04.1988 - 06.1989] AE92..SPC |
31115-17013 |
US $538.72 |
||
| replacement | |||||
|
31115C
|
31115C
31115-12071 Case, Front Transaxle(Mtm)[04.1988 - 06.1989] AE92..SPC |
31115-12071 |
US $486.30 |
||
|
31116F
|
31116F
90311-40004 Seal, Oil(For Rear Transaxle Case Cover)[05.1987 - 06.1991] AE92..SPC |
90311-40004 |
from US $5.20 |
||
|
31116G
|
31116G
90116-12019 Bolt, Stud(For Rear Transaxle Case Cover)[05.1987 - 06.1991] AE92..SPC |
90116-12019 |
US $5.42 |
||
|
31116H
|
31116H
90105-12135 Bolt(For Rear Transaxle Case Cover)[05.1987 - 06.1991] AE92..SPC |
90105-12135 |
US $1.93 |
||
|
31116J
|
31116J
90179-12068 Nut(For Transaxle Case Cover)[05.1987 - 06.1991] AE92..SPC |
90179-12068 |
US $1.97 |
||
|
31116P
|
31116P
31116-12010
Cover, Transaxle Case
[05.1987 - 06.1991] AE92..SPC |
31116-12010 |
— | ||
|
33143C
|
33143C
33143-20040
Baffle, Rear Differential Oil
[05.1987 - 06.1991] AE92..SPC |
33143-20040 |
— | ||
|
33449
|
33449
33449-20010 Magnet, Transmission[05.1987 - 06.1991] AE92..SPC |
33449-20010 |
US $5.97 |
||
|
33481
|
33481
33481-17010
Gear, Speedometer Drive (Mtm)
[05.1987 - 02.1991] AE92..SPC |
33481-17010 |
— | ||
|
33481
|
33481
33481-17011
Gear, Speedometer Drive (Mtm)
[02.1991 - 06.1991] AE92..SPC |
33481-17011 |
— | ||
|
41221
|
41221
41221-12240
Gear, Front Differential Ring
[05.1987 - 05.1988] AE92..SPC |
41221-12240 |
— | ||
|
41221
|
41221
41221-12290 Gear, Front Differential Ring[05.1988 - 06.1991] AE92..SPC |
41221-12290 |
US $171.81 |
||
|
41222B
|
41222B
90105-12154 Bolt (For Rear Differential Ring Gear Set)[05.1987 - 06.1991] AE92..SPC |
90105-12154 |
US $4.30 |
||
|
41301L
|
41301L
41301-12070 Case Sub-Assy, Front Differential, No.1[05.1987 - 06.1991] AE92..SPC |
41301-12070 |
US $784.78 |
||
|
41302D
|
41302D
41302-17012 Case Sub-Assy, Rear Differential[05.1987 - 02.1991] AE92..SPC |
41302-17012 |
US $356.72 |
||
| replacements | |||||
|
41302D
|
41302D
41302-20040 Case Sub-Assy, Front Differential, No.2[05.1987 - 02.1991] AE92..SPC |
41302-20040 |
US $353.81 |
||
|
41302D
|
41302D
33481-17011
Gear, Speedometer Drive (Mtm)
[05.1987 - 02.1991] AE92..SPC |
33481-17011 |
— | ||
|
41302D
|
41302D
41302-17013 Case Sub-Assy, Rear Differential[02.1991 - 06.1991] AE92..SPC |
41302-17013 |
US $353.81 |
||
| replacement | |||||
|
41302D
|
41302D
41302-20040 Case Sub-Assy, Front Differential, No.2[02.1991 - 06.1991] AE92..SPC |
41302-20040 |
US $353.81 |
||
|
41311C
|
41311C
90564-76001 Shim(For Differential Case)[05.1987 - 06.1991] AE92..SPC 厚さ＝２．００，マーク ０ |
90564-76001 |
US $4.02 |
||
|
41311C
|
41311C
90564-76002 Shim(For Differential Case)[05.1987 - 06.1991] AE92..SPC 厚さ＝２．０５，マーク １ |
90564-76002 |
US $4.08 |
||
|
41311C
|
41311C
90564-76003 Shim(For Differential Case)[05.1987 - 06.1991] AE92..SPC 厚さ＝２．１０，マーク ２ |
90564-76003 |
US $4.08 |
||
|
41311C
|
41311C
90564-76004 Shim(For Differential Case)[05.1987 - 06.1991] AE92..SPC 厚さ＝２．１５，マーク ３ |
90564-76004 |
US $4.08 |
||
|
41311C
|
41311C
90564-76005 Shim(For Differential Case)[05.1987 - 06.1991] AE92..SPC 厚さ＝２．２０，マーク ４ |
90564-76005 |
US $5.53 |
||
|
41311C
|
41311C
90564-76006 Shim(For Differential Case)[05.1987 - 06.1991] AE92..SPC 厚さ＝２．２５，マーク ５ |
90564-76006 |
US $5.53 |
||
|
41311C
|
41311C
90564-76007 Shim(For Differential Case)[05.1987 - 06.1991] AE92..SPC 厚さ＝２．３０，マーク ６ |
90564-76007 |
US $5.53 |
||
|
41311C
|
41311C
90564-76008 Shim(For Differential Case)[05.1987 - 06.1991] AE92..SPC 厚さ＝２．３５，マーク ７ |
90564-76008 |
US $5.53 |
||
|
41311C
|
41311C
90564-76009 Shim(For Differential Case)[05.1987 - 06.1991] AE92..SPC 厚さ＝２．４０，マーク ８ |
90564-76009 |
US $5.53 |
||
|
41311C
|
41311C
90564-76010 Shim(For Differential Case)[05.1987 - 06.1991] AE92..SPC 厚さ＝２．４５，マーク ９ |
90564-76010 |
US $5.53 |
||
|
41311C
|
41311C
90564-76011 Shim(For Differential Case)[05.1987 - 06.1991] AE92..SPC 厚さ＝２．５０，マーク Ａ |
90564-76011 |
US $5.53 |
||
|
41311C
|
41311C
90564-76012 Shim(For Differential Case)[05.1987 - 06.1991] AE92..SPC 厚さ＝２．５５，マーク Ｂ |
90564-76012 |
US $5.53 |
||
|
41311C
|
41311C
90564-76013 Shim(For Differential Case)[05.1987 - 06.1991] AE92..SPC 厚さ＝２．６０，マーク Ｃ |
90564-76013 |
US $5.53 |
||
|
41311C
|
41311C
90564-76014 Shim(For Differential Case)[05.1987 - 06.1991] AE92..SPC 厚さ＝２．６５，マーク Ｄ |
90564-76014 |
US $5.53 |
||
|
41311C
|
41311C
90564-76015 Shim(For Differential Case)[05.1987 - 06.1991] AE92..SPC 厚さ＝２．７０，マーク Ｅ |
90564-76015 |
US $5.53 |
||
|
41311C
|
41311C
90564-76016 Shim(For Differential Case)[05.1987 - 06.1991] AE92..SPC 厚さ＝２．７５，マーク Ｆ |
90564-76016 |
US $5.53 |
||
|
41311C
|
41311C
90564-76017 Shim(For Differential Case)[05.1987 - 06.1991] AE92..SPC 厚さ＝２．８０，マーク Ｇ |
90564-76017 |
US $5.53 |
||
|
41311C
|
41311C
90564-76018 Shim(For Differential Case)[05.1987 - 06.1991] AE92..SPC 厚さ＝２．８５，マーク Ｈ |
90564-76018 |
US $5.53 |
||
|
41311E
|
41311E
90366-57016
Bearing(For Rear Differential Case)
[05.1987 - 06.1991] AE92..SPC |
90366-57016 |
— | ||
|
41311F
|
41311F
90366-50014 Bearing(For Rear Differential Case)[05.1987 - 06.1991] AE92..SPC |
90366-50014 |
US $40.66 |
||
|
41311P
|
41311P
90149-10003 Screw(For Rear Differential Case)[05.1987 - 06.1991] AE92..SPC |
90149-10003 |
US $5.53 |
||
|
41331F
|
41331F
41331-17010 Gear, Rear Differential Side[05.1987 - 06.1991] AE92..SPC |
41331-17010 |
US $66.25 |
||
|
41341F
|
41341F
41341-20020 Pinion, Rear Differential[05.1987 - 06.1991] AE92..SPC |
41341-20020 |
from US $22.86 |
||
|
41351F
|
41351F
41351-20010 Washer, Rear Differential Pinion Thrust[05.1987 - 06.1991] AE92..SPC |
41351-20010 |
US $1.60 |
||
|
41361F
|
41361F
41362-17010 Washer, Rear Differential Side Gear Thrust, No.1[05.1987 - 06.1991] AE92..SPC 厚さ＝０．８０，マーク ＦＡ |
41362-17010 |
US $5.82 |
||
|
41361F
|
41361F
41362-17020 Washer, Rear Differential Side Gear Thrust, No.1[05.1987 - 06.1991] AE92..SPC 厚さ＝０．９０，マーク ＦＢ |
41362-17020 |
US $5.82 |
||
|
41361F
|
41361F
41362-17030 Washer, Rear Differential Side Gear Thrust, No.1[05.1987 - 06.1991] AE92..SPC 厚さ＝１．００，マーク ＦＣ |
41362-17030 |
US $5.82 |
||
|
41361F
|
41361F
41362-17040 Washer, Rear Differential Side Gear Thrust, No.1[05.1987 - 06.1991] AE92..SPC 厚さ＝１．１０，マーク ＦＤ |
41362-17040 |
US $5.82 |
||
|
41361F
|
41361F
41362-17050 Washer, Rear Differential Side Gear Thrust, No.1[05.1987 - 06.1991] AE92..SPC 厚さ＝１．２０，マーク ＦＥ |
41362-17050 |
US $5.82 |
||
|
41361F
|
41361F
41362-17060 Washer, Rear Differential Side Gear Thrust, No.1[05.1987 - 06.1991] AE92..SPC 厚さ＝１．３０，マーク ＦＦ |
41362-17060 |
US $5.82 |
||
|
41361F
|
41361F
41362-17070 Washer, Rear Differential Side Gear Thrust, No.1[05.1987 - 06.1991] AE92..SPC 厚さ＝１．４０，マーク ＦＧ |
41362-17070 |
US $5.82 |
||
|
41371F
|
41371F
41371-17010 Spider, Rear Differential[05.1987 - 06.1991] AE92..SPC |
41371-17010 |
US $67.41 |
||
| replacement | |||||
|
41371F
|
41371F
41371-32010 Spider, Front Differential[05.1987 - 06.1991] AE92..SPC |
41371-32010 |
US $67.85 |
||
