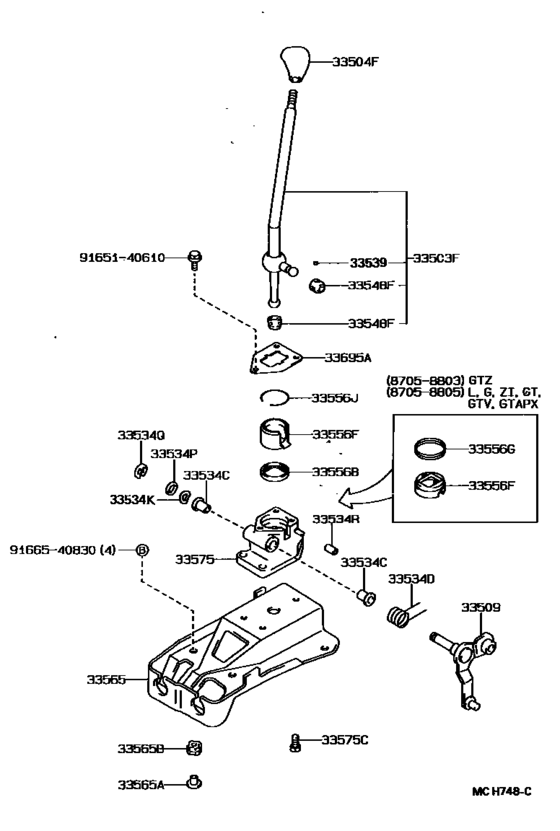

Shift Lever & Retainer ([05.1987 - ] (8705- )5F) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- AE92
- ENGINE
- 4AGZE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33503F
|
33503F
33503-12330 Lever Sub-Assy, Shift(For Floor Shift)[05.1987 - 03.1988] AE9#..5F |
33503-12330 |
US $47.47 |
||
| replacement | |||||
|
33503F
|
33503F
33503-12331 Lever Sub-Assy, Shift(For Floor Shift)[05.1987 - 03.1988] AE9#..5F |
33503-12331 |
US $47.47 |
||
|
33503F
|
33503F
33503-12381 Lever Sub-Assy, Shift(For Floor Shift)[03.1988 - 12.1988] AE92..SPC |
33503-12381 |
US $38.29 |
||
| replacement | |||||
|
33503F
|
33503F
33503-12382 Lever Sub-Assy, Shift(For Floor Shift)[03.1988 - 12.1988] AE92..SPC |
33503-12382 |
US $38.58 |
||
|
33503F
|
33503F
33503-12382 Lever Sub-Assy, Shift(For Floor Shift)[12.1988 - 06.1991] AE92..SPC |
33503-12382 |
US $38.58 |
||
|
33504F
|
33504F
33504-12150-04 Knob Sub-Assy, Shift Lever[05.1987 - 05.1989] AE92..5F..(GTAPX,GTV,GTZ) DARK BLUE,TRIM8# |
33504-12150-04 |
US $99.01 |
||
|
33504F
|
33504F
33504-12150-23 Knob Sub-Assy, Shift Lever[05.1987 - 05.1988] AE92..5F..(GTAPX,GTV,GTZ) SHADOW GRAY,TRIM1# |
33504-12150-23 |
US $99.01 |
||
|
33504F
|
33504F
33504-12150-C0 Knob Sub-Assy, Shift Lever[05.1989 - 06.1991] AE92..5F..(GTAPX,GTZ) BLACK,TRIM1#,8# |
33504-12150-C0 |
US $99.01 |
||
| replacement | |||||
|
33504F
|
33504F
33504-22140-C0 Knob Sub-Assy, Shift Lever[05.1989 - 06.1991] AE92..5F..(GTAPX,GTZ) BLACK,TRIM1#,8# |
33504-22140-C0 |
US $123 |
||
|
33509
|
33509
33509-12060 Crank Sub-Assy, Selecting Bell, No.1[05.1987 - 03.1988] AE9#..5F |
33509-12060 |
US $37.27 |
||
| replacements | |||||
|
33509
|
33509
33509-12080 Crank Sub-Assy, Selecting Bell, No.1[05.1987 - 03.1988] AE9#..5F |
33509-12080 |
US $37.13 |
||
|
33509
|
33509
90206-12003 Washer, Wave (For Selecting Bellcrank No.1)[05.1987 - 03.1988] AE9#..5F |
90206-12003 |
from US $0.96 |
||
|
33509
|
33509
33509-12070 Crank Sub-Assy, Selecting Bell, No.1[03.1988 - 07.1989] AE92..SPC |
33509-12070 |
US $37.27 |
||
|
33509
|
33509
33509-12071 Crank Sub-Assy, Selecting Bell, No.1[07.1989 - 06.1991] AE92..SPC |
33509-12071 |
US $37.56 |
||
|
33534C
|
33534C
90386-12013 Bush (For Shift Lever Retainer)[05.1987 - 03.1988] AE9#..5F |
90386-12013 |
US $4.66 |
||
|
33534C
|
33534C
90386-12034 Bush (For Shift Lever Retainer)[03.1988 - 05.1988] AE92..SPC |
90386-12034 |
US $1.97 |
||
|
33534D
|
33534D
90508-20084 Spring, Torsion (For Selecting Bellcrank No.1)[05.1987 - 06.1991] AE9#..5F |
90508-20084 |
US $3.58 |
||
|
33534P
|
33534P
90201-12052 Washer, Plate (For Selecting Bellcrank No.1)[05.1987 - 06.1991] AE9#..5F |
90201-12052 |
US $0.52 |
||
|
33534Q
|
33534Q
96160-00900 Ring, E(For Injection Pump Lever)[05.1987 - 06.1991] AE9#..5F |
96160-00900 |
from US $1.61 |
||
|
33534R
|
33534R
90540-06029 Cushion (For Selecting Bellcrank No.1)[05.1987 - 06.1991] AE9#..5F |
90540-06029 |
US $2.80 |
||
|
33539
|
33539
33539-12010 Cushion, Shift Lever Anti-Rattle[04.1989 - 05.1989] AE92..SPC |
33539-12010 |
US $1.51 |
||
|
33539
|
33539
33539-32010 Cushion, Shift Lever Anti-Rattle[12.1988 - 04.1989] AE92..SPC |
33539-32010 |
US $4.66 |
||
|
33548F
|
33548F
33548-12021 Bush, Shift Lever (For Column Shift)[05.1987 - 12.1988] AE9#..5F |
33548-12021 |
from US $2.42 |
||
|
33548F
|
33548F
33548-12030 Bush, No.1, Shift Lever (For Floor Shift)[12.1988 - 04.1989] AE92..SPC |
33548-12030 |
US $4.95 |
||
| replacements | |||||
|
33548F
|
33548F
33539-12010 Cushion, Shift Lever Anti-Rattle[12.1988 - 04.1989] AE92..SPC |
33539-12010 |
US $1.51 |
||
|
33548F
|
33548F
33548-12040 Bush, No.1, Shift Lever (For Floor Shift)[12.1988 - 04.1989] AE92..SPC |
33548-12040 |
US $3.40 |
||
|
33548F
|
33548F
33548-12040 Bush, No.1, Shift Lever (For Floor Shift)[04.1989 - 05.1989] AE92..SPC |
33548-12040 |
US $3.40 |
||
|
33556B
|
33556B
90385-34001 Bush (For Transmission Shift Lever Ball Seat)[03.1988 - 05.1988] AE92..SPC |
90385-34001 |
US $3.84 |
||
|
33556F
|
33556F
33556-12040
Seat, Transmission Shift Lever Ball
[05.1987 - 03.1988] AE9#..5F |
33556-12040 |
— | ||
|
33556F
|
33556F
33556-20020 Seat, Transmission Shift Lever Ball[03.1988 - 05.1988] AE92..SPC |
33556-20020 |
from US $8.56 |
||
|
33556G
|
33556G
90501-11040 Spring (For Transmission Shift Lever Ball Seat)[05.1987 - 03.1988] AE9#..5F |
90501-11040 |
US $2.18 |
||
|
33556J
|
33556J
90520-34002
Ring, Snap (For Shift Lever)
[03.1988 - 08.1988] AE92..SPC |
90520-34002 |
— | ||
|
33556J
|
33556J
90520-36018 Ring, Snap (For Shift Lever)[08.1988 - 06.1991] AE9#..5F |
90520-36018 |
US $1.49 |
||
|
33565
|
33565
33565-12030 Plate, Control Shift Lever Retainer[05.1987 - 06.1991] AE9#..5F |
33565-12030 |
US $93.18 |
||
|
33565A
|
33565A
90389-08031 Bush, No.2 (For Shift Lever Plate)[05.1987 - 06.1991] AE9#..5F |
90389-08031 |
US $2.80 |
||
|
33565B
|
33565B
90389-10020 Bush, No.2 (For Control Shift Lever Retainer Plate)[05.1987 - 06.1991] AE9#..5F |
90389-10020 |
US $2.80 |
||
|
33575
|
33575
33575-12120 Retainer, Control Shift Lever (For Floor Shift)[05.1987 - 03.1988] AE9#..5F |
33575-12120 |
US $61.01 |
||
| replacement | |||||
|
33575
|
33575
33575-12H00 Retainer, Control Shift Lever (For Floor Shift)[05.1987 - 03.1988] AE9#..5F |
33575-12H00 |
US $74.26 |
||
|
33575
|
33575
33575-12130 Retainer, Control Shift Lever (For Floor Shift)[03.1988 - 08.1988] AE92..SPC |
33575-12130 |
US $61.01 |
||
|
33575
|
33575
33575-12131 Retainer, Control Shift Lever (For Floor Shift)[08.1988 - 07.1989] AE92..SPC |
33575-12131 |
US $61.15 |
||
|
33575
|
33575
33575-12133 Retainer, Control Shift Lever (For Floor Shift)[07.1989 - 06.1991] AE92..SPC |
33575-12133 |
US $53 |
||
|
33575C
|
33575C
90119-08622 Bolt (For Control Shift Lever Retainer)[05.1987 - 06.1991] AE9#..5F |
90119-08622 |
US $2.04 |
||
|
33695A
|
33695A
33695-12020 Cover, Shift Lever Ball[05.1987 - 03.1988] AE9#..5F |
33695-12020 |
US $4.08 |
||
| replacement | |||||
|
33695A
|
33695A
33695-12031 Cover, Shift Lever Ball[05.1987 - 03.1988] AE9#..5F |
33695-12031 |
US $3.93 |
||
|
33695A
|
33695A
33695-12030 Cover, Shift Lever Ball[03.1988 - 08.1988] AE92..SPC |
33695-12030 |
US $4.08 |
||
|
33695A
|
33695A
33695-12031 Cover, Shift Lever Ball[08.1988 - 06.1991] AE9#..5F |
33695-12031 |
US $3.93 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9166540830
|
9166540830
91665-40830
New Genuine Part
|
91665-40830 |
— | ||
| replacement | |||||
|
9166540830
|
9166540830
91661-60830 Bolt |
91661-60830 |
from US $1.61 |
||
