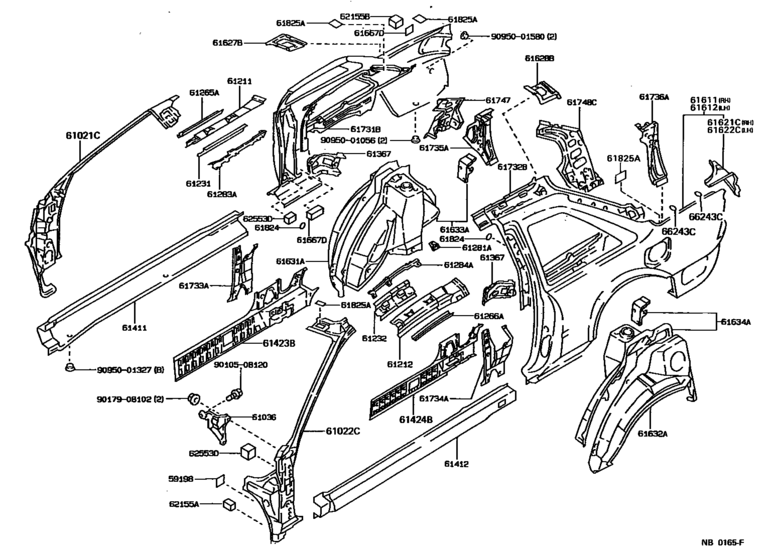

Side Member ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- AE92
- ENGINE
- 4AGZE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
59198
|
59198
59198-12010 Seal, Noise Shutter[05.1987 - 06.1991] AE9# |
59198-12010 |
US $1.60 |
||
|
61021C
|
61021C
61021-12740 Pillar Sub-Assy, Front Body, Rh[05.1987 - 06.1991] AE9# |
61021-12740 |
US $711.98 |
||
|
61022C
|
61022C
61022-12750 Pillar Sub-Assy, Front Body, Lh[05.1987 - 06.1991] AE9# |
61022-12750 |
US $711.98 |
||
|
61036
|
61036
61166-12060 Bracket Sub-Assy, Instrument Panel To Cowl Side, Lh[05.1987 - 06.1991] AE9# |
61166-12060 |
US $27.96 |
||
|
61211
|
61211
61211-12260 Rail, Roof Side, Outer Rh[05.1987 - 06.1991] AE9# |
61211-12260 |
US $43.83 |
||
|
61212
|
61212
61212-12260 Rail, Roof Side, Outer Lh[05.1987 - 06.1991] AE9# |
61212-12260 |
US $43.83 |
||
|
61231
|
61231
61231-12630 Rail, Roof Side, Inner Rh[05.1987 - 08.1987] AE9# |
61231-12630 |
US $35.53 |
||
|
61232
|
61232
61232-12490 Rail, Roof Side, Inner Lh[05.1987 - 08.1987] AE91..CBR; AE9#..EFI,SPC |
61232-12490 |
US $35.67 |
||
| replacement | |||||
|
61232
|
61232
61232-12580 Rail, Roof Side, Inner Lh[05.1987 - 08.1987] AE91..CBR; AE9#..EFI,SPC |
61232-12580 |
US $35.67 |
||
|
61232
|
61232
61232-12580 Rail, Roof Side, Inner Lh[08.1987 - 05.1988] AE9# |
61232-12580 |
US $35.67 |
||
|
61265A
|
61265A
61265-12150 Channel, Roof Drip Side, Center Rh[05.1987 - 06.1991] AE9# |
61265-12150 |
US $13.40 |
||
|
61266A
|
61266A
61266-12150 Channel, Roof Drip Side, Center Lh[05.1987 - 06.1991] AE9# |
61266-12150 |
US $13.40 |
||
|
61281A
|
61281A
61281-12040 Bracket, Sliding Roof Housing Side Mounting, No.1[05.1987 - 05.1989] AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
61281-12040 |
US $5.97 |
||
| replacement | |||||
|
61281A
|
61281A
61281-12070 Bracket, Sliding Roof Housing Side Mounting, No.1[05.1987 - 05.1989] AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
61281-12070 |
US $5.97 |
||
|
61281A
|
61281A
61281-12070 Bracket, Sliding Roof Housing Side Mounting, No.1[05.1989 - 06.1991] AE9#..G,GT,GTAPX,GTZ,ZS |
61281-12070 |
US $5.97 |
||
|
61283A
|
61283A
61283-12050 Bracket, Sliding Roof Housing Side Mounting, No.3 Rh[05.1987 - 06.1991] AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS |
61283-12050 |
US $22.42 |
||
|
61284A
|
61284A
61284-12050 Bracket, Sliding Roof Housing Side Mounting, No.3 Lh[05.1987 - 06.1991] AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS |
61284-12050 |
US $22.42 |
||
|
61367
|
61367
61367-12050 Reinforcement, Belt Anchor To Center Pillar, Lower[05.1987 - 06.1991] AE9# RH |
61367-12050 |
US $26.50 |
||
|
61367
|
61367
61368-12030 Reinforcement, Belt Anchor To Center Pillar, Lower[05.1987 - 12.1988] AE9# LH |
61368-12030 |
US $26.50 |
||
| replacement | |||||
|
61367
|
61367
61368-12040 Reinforcement, Belt Anchor To Center Pillar, Lower[05.1987 - 12.1988] AE9# LH |
61368-12040 |
US $26.50 |
||
|
61367
|
61367
61368-12040 Reinforcement, Belt Anchor To Center Pillar, Lower[12.1988 - 06.1991] AE9# LH |
61368-12040 |
US $26.50 |
||
|
61411
|
61411
61411-12430 Panel, Rocker, Outer Rh[05.1987 - 06.1991] AE92..SPC |
61411-12430 |
US $305.76 |
||
|
61412
|
61412
61412-12410 Panel, Rocker, Outer Lh[05.1987 - 06.1991] AE92..SPC |
61412-12410 |
US $305.76 |
||
|
61423B
|
61423B
61423-12020 Reinforcement, Rocker Panel, No.3 Rh[05.1987 - 05.1989] AE9# |
61423-12020 |
US $68.87 |
||
| replacement | |||||
|
61423B
|
61423B
61423-12050 Reinforcement, Rocker Panel, No.3 Rh[05.1987 - 05.1989] AE9# |
61423-12050 |
US $69.45 |
||
|
61423B
|
61423B
61423-12050 Reinforcement, Rocker Panel, No.3 Rh[05.1989 - 06.1991] AE9# |
61423-12050 |
US $69.45 |
||
|
61424B
|
61424B
61424-12010 Reinforcement, Rocker Panel, No.3 Lh[05.1987 - 05.1989] AE9# |
61424-12010 |
US $68.87 |
||
| replacement | |||||
|
61424B
|
61424B
61424-12040 Reinforcement, Rocker Panel, No.3 Lh[05.1987 - 05.1989] AE9# |
61424-12040 |
US $69.45 |
||
|
61424B
|
61424B
61424-12040 Reinforcement, Rocker Panel, No.3 Lh[05.1989 - 06.1991] AE9# |
61424-12040 |
US $69.45 |
||
|
61611
|
61611
61601-1E907 Panel, Quarter, Rh[05.1987 - 06.1991] AE92..SPC |
61601-1E907 |
US $659.57 |
||
|
61612
|
61612
61602-1E908 Panel, Quarter, Lh[05.1987 - 06.1991] AE92..SPC |
61602-1E908 |
US $659.57 |
||
|
61621C
|
61621C
61621-12320 Trough, Luggage Compartment Opening, Rh[05.1987 - 10.1989] AE9# |
61621-12320 |
US $30.28 |
||
| replacement | |||||
|
61621C
|
61621C
61621-12321 Trough, Luggage Compartment Opening, Rh[05.1987 - 10.1989] AE9# |
61621-12321 |
US $30.43 |
||
|
61621C
|
61621C
61621-12321 Trough, Luggage Compartment Opening, Rh[10.1989 - 06.1991] AE9# |
61621-12321 |
US $30.43 |
||
|
61622C
|
61622C
61622-12320 Trough, Luggage Compartment Opening, Lh[05.1987 - 10.1989] AE9# |
61622-12320 |
US $30.28 |
||
| replacement | |||||
|
61622C
|
61622C
61622-12321 Trough, Luggage Compartment Opening, Lh[05.1987 - 10.1989] AE9# |
61622-12321 |
US $30.43 |
||
|
61622C
|
61622C
61622-12321 Trough, Luggage Compartment Opening, Lh[10.1989 - 06.1991] AE9# |
61622-12321 |
US $30.43 |
||
|
61627B
|
61627B
61627-12050 Extension, Quarter Panel, Upper Rear Rh[05.1987 - 06.1991] AE9# |
61627-12050 |
US $22.42 |
||
|
61628B
|
61628B
61628-12070 Extension, Quarter Panel, Upper Rear Lh[05.1987 - 06.1991] AE9# |
61628-12070 |
US $22.42 |
||
|
61631A
|
61631A
61631-12240 Panel, Quarter Wheel House, Outer Rh[05.1987 - 06.1991] AE92..SPC |
61631-12240 |
US $141.23 |
||
|
61632A
|
61632A
61632-12240 Panel, Quarter Wheel House, Outer Lh[05.1987 - 06.1991] AE92..SPC |
61632-12240 |
US $141.23 |
||
|
61633A
|
61633A
61607-12110 Panel, Quarter Wheel House, Inner Rh[05.1987 - 06.1991] AE9#..G,GTAPX,GTV,GTZ,ZI,ZS |
61607-12110 |
US $289.74 |
||
|
61634A
|
61634A
61608-12270 Panel, Quarter Wheel House, Inner Lh[05.1987 - 06.1991] AE9#..G,GTAPX,GTV,GTZ,ZI,ZS |
61608-12270 |
US $289.74 |
||
|
61667D
|
61667D
61667-12060 Seal, Quarter Panel[08.1987 - 05.1989] AE9# |
61667-12060 |
US $6.26 |
||
|
61667D
|
61667D
61667-12070 Seal, Quarter Panel[05.1989 - 06.1991] AE9# 220X120 |
61667-12070 |
US $7.43 |
||
|
61731B
|
61731B
61705-12950 Panel, Roof Side, Inner Rh[05.1987 - 01.1989] AE91..CBR; AE9#..EFI,SPC |
61705-12950 |
US $246.06 |
||
| replacement | |||||
|
61731B
|
61731B
61705-12953 Panel, Roof Side, Inner Rh[05.1987 - 01.1989] AE91..CBR; AE9#..EFI,SPC |
61705-12953 |
US $320.32 |
||
|
61731B
|
61731B
61705-12953 Panel, Roof Side, Inner Rh[01.1989 - 06.1991] AE9# |
61705-12953 |
US $320.32 |
||
|
61732B
|
61732B
61706-12955 Panel, Roof Side, Inner Lh[05.1987 - 01.1989] AE91..CBR; AE9#..EFI,SPC |
61706-12955 |
US $246.06 |
||
| replacement | |||||
|
61732B
|
61732B
61706-12958 Panel, Roof Side, Inner Lh[05.1987 - 01.1989] AE91..CBR; AE9#..EFI,SPC |
61706-12958 |
US $320.32 |
||
|
61732B
|
61732B
61706-12958 Panel, Roof Side, Inner Lh[01.1989 - 06.1991] AE9# |
61706-12958 |
US $320.32 |
||
|
61733A
|
61733A
61733-12140 Panel, Roof Side, Inner Front Rh[05.1987 - 06.1991] AE9# |
61733-12140 |
US $56.93 |
||
|
61734A
|
61734A
61734-12140 Panel, Roof Side, Inner Front Lh[05.1987 - 06.1991] AE9# |
61734-12140 |
US $56.93 |
||
|
61735A
|
61735A
61735-12901 Panel, Roof Side, Inner Rear Rh[05.1987 - 06.1991] AE9# |
61735-12901 |
US $41.35 |
||
|
61736A
|
61736A
61736-12901 Panel, Roof Side, Inner Rear Lh[05.1987 - 06.1991] AE9# |
61736-12901 |
US $26.21 |
||
|
61747
|
61747
61747-12150 Brace, Roof Side Inner To Wheel House, Rh[05.1987 - 06.1991] AE9# |
61747-12150 |
US $38.15 |
||
|
61748C
|
61748C
61748-12150 Brace, Roof Side Inner To Wheel House, Lh[05.1987 - 06.1991] AE9# |
61748-12150 |
US $35.24 |
||
|
61824
|
61824
61824-12020 Plate, Noise Control, No.1[05.1987 - 08.1987] AE9# |
61824-12020 |
US $2.18 |
||
| replacement | |||||
|
61824
|
61824
61824-12040 Plate, Noise Control, No.1[05.1987 - 08.1987] AE9# |
61824-12040 |
US $1.89 |
||
|
61824
|
61824
61824-12040 Plate, Noise Control, No.1[09.1988 - 06.1991] AE9# |
61824-12040 |
US $1.89 |
||
|
61825A
|
61825A
61825-12010 Cover, Roof Side, Inner Upper Rh[08.1987 - 05.1989] AE91..CBR 180X196; AE9#..EFI,SPC 180X196 |
61825-12010 |
US $2.04 |
||
|
61825A
|
61825A
61827-12010 Plate, Noise Control, No.2[05.1987 - 08.1987] AE9# 105 X 71 |
61827-12010 |
US $2.77 |
||
|
62155A
|
62155A
62155-12010 Pad, Cowl Side Lower Silencer[05.1987 - 06.1991] AE9# |
62155-12010 |
US $1.75 |
||
|
62155B
|
62155B
62155-12010 Pad, Cowl Side Lower Silencer[05.1987 - 06.1991] AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS |
62155-12010 |
US $1.75 |
||
|
62553D
|
62553D
62553-12120 Pad, Cowl Side Silencer[05.1987 - 06.1991] AE9# |
62553-12120 |
US $1.60 |
||
|
66243C
|
66243C
66243-20010 Protector, Rear Body, No.1[05.1989 - 06.1991] AE9# |
66243-20010 |
US $2.20 |
||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.61 |
||
|
9017908102
|
9017908102
90179-08102 NUT |
90179-08102 |
US $2.87 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $1.99 |
||
|
9095001327
|
9095001327
90950-01327 Plug, Hole(For Front Fender Apron) |
90950-01327 |
US $6.45 |
||
|
9095001580
|
9095001580
90950-01580 Plug, Hole(For Clutch Under Cover) |
90950-01580 |
US $4.12 |
||
