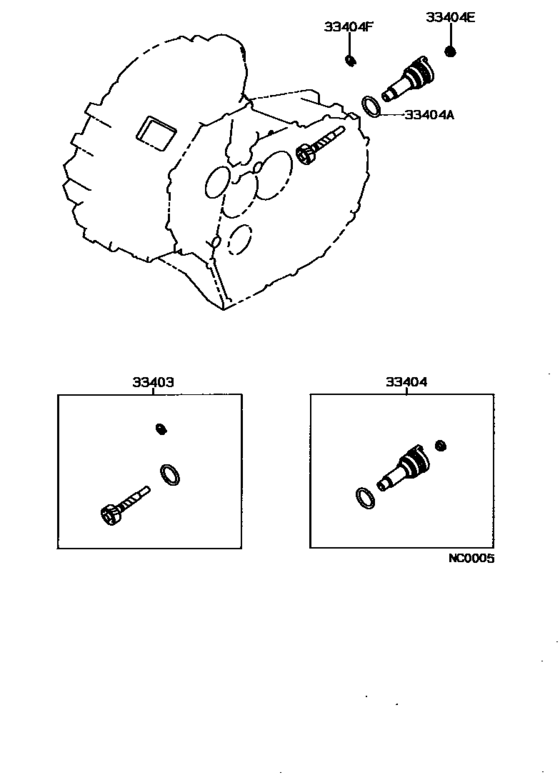

Speedometer Driven Gear (Mtm) ([05.1987 - ] E52,E58 (8705- )SPC) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- AE92
- ENGINE
- 4AGZE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33403
|
33403
33403-19406 Gear Sub-Assy, Speedometer Driven (Mtm)[10.1989 - 02.1991] AE92..SPC 歯数＝３０，マーク ３０：３５ |
33403-19406 |
from US $26.36 |
||
|
33404
|
33404
33404-17010 Sleeve Sub-Assy, Speedometer Shaft (Mtm)[05.1987 - 06.1991] AE92..SPC |
33404-17010 |
from US $18.27 |
||
|
33404A
|
33404A
96721-24030 Ring, O (For Mtm Speedometer Shaft Sleeve)[05.1987 - 06.1991] AE92..SPC |
96721-24030 |
US $1.22 |
||
|
33404E
|
33404E
90310-09003 Seal, Oil (For Mtm Speedometer Shaft Sleeve)[05.1987 - 06.1991] AE92..SPC |
90310-09003 |
US $5.28 |
||
|
33404F
|
33404F
90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)[05.1987 - 06.1991] AE9#..5F |
90468-12005 |
US $1.61 |
