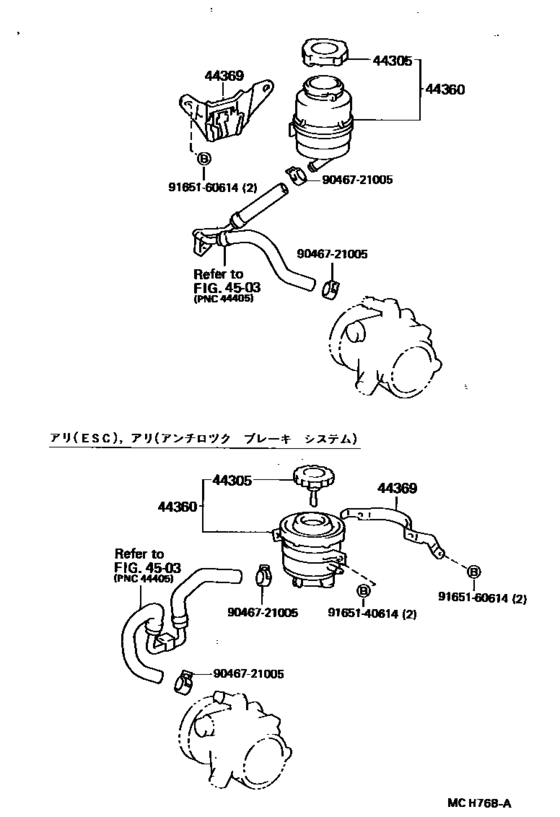

Vane Pump & Reservoir (Power Steering) ([05.1989 - ] (8905- )AE92) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- AE92
- ENGINE
- 4AGZE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44305
|
44305
44305-22020 Cap Sub-Assy, Vane Pump Oil Reservoir[05.1987 - 05.1989] AE92 |
44305-22020 |
US $24.61 |
||
| replacement | |||||
|
44305
|
44305
44305-22050 Cap Sub-Assy, Vane Pump Oil ReservoirVANE PUMP OIL RESERVOIR [05.1987 - 05.1989] AE92 |
44305-22050 |
from US $17.88 |
||
|
44305
|
44305
44305-22030
Cap Sub-Assy, Vane Pump Oil Reservoir
[05.1989 - 06.1991] AE92..GTAPX,GTZ; AE92..GT |
44305-22030 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-22050 Cap Sub-Assy, Vane Pump Oil ReservoirVANE PUMP OIL RESERVOIR [05.1989 - 06.1991] AE92..GTAPX,GTZ; AE92..GT |
44305-22050 |
from US $17.88 |
||
|
44305
|
44305
44305-22040
Cap Sub-Assy, Vane Pump Oil Reservoir
[05.1989 - 06.1991] AE91; AE92..GTAPX,GTZ ｱﾘ(ESC) OR ｱﾘ(*66); AE92..GT ｱﾘ(ESC) OR ｱﾘ(*66) |
44305-22040 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-22061 Cap Sub-Assy, Vane Pump Oil Reservoir[05.1989 - 06.1991] AE91; AE92..GTAPX,GTZ ｱﾘ(ESC) OR ｱﾘ(*66); AE92..GT ｱﾘ(ESC) OR ｱﾘ(*66) |
44305-22061 |
from US $15.88 |
||
|
44360
|
44360
44360-12030
Reservoir Assy, Vane Pump Oil
[05.1987 - 05.1989] AE92 |
44360-12030 |
— | ||
|
44360
|
44360
44360-12040
Reservoir Assy, Vane Pump Oil
[05.1989 - 06.1991] AE92..GTAPX,GTZ ｱﾘ(ESC) OR ｱﾘ(*66); AE92..GT ｱﾘ(ESC) OR ｱﾘ(*66) |
44360-12040 |
— | ||
|
44369
|
44369
44369-12020
Bracket, Oil Reservoir, No.1
[05.1987 - 05.1989] AE92 |
44369-12020 |
— | ||
|
44369
|
44369
44369-12040
Bracket, Oil Reservoir, No.1
[05.1989 - 06.1991] AE92..GTAPX,GTZ ｱﾘ(ESC) OR ｱﾘ(*66); AE92..GT ｱﾘ(ESC) OR ｱﾘ(*66) |
44369-12040 |
— | ||
|
9046721005
|
9046721005
90467-21005
Clip(For Suction Hose No.1)
|
90467-21005 |
— | ||
| replacement | |||||
|
9046721005
|
9046721005
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
