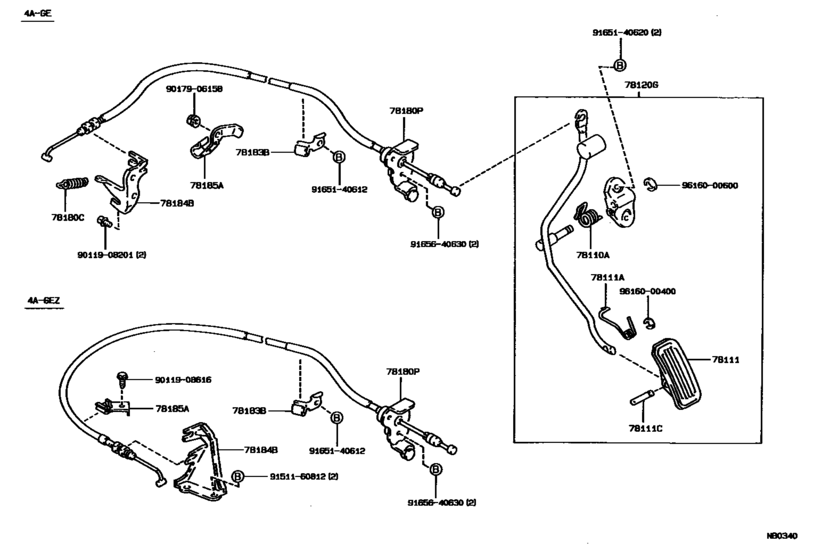

Accelerator Link ([05.1987 - ] (8705- )AE92) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- AE92
- ENGINE
- 4AGE
- TRANSMISSION
- ATM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110A
|
78110A
90508-18025 Spring (For Accelerator Pedal Rod)[05.1987 - 06.1991] AE91;AE92..4FC |
90508-18025 |
US $7.43 |
||
|
78111
|
78111
78111-32010 Pedal, Accelerator[05.1987 - 06.1991] AE9# |
78111-32010 |
US $8.56 |
||
|
78111A
|
78111A
90508-20056 Spring (For Accelerator Pedal)[05.1987 - 06.1991] AE9# |
90508-20056 |
US $7.28 |
||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[05.1987 - 06.1991] AE9# |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-12080
Rod Assy, Accelerator Pedal
[05.1987 - 06.1991] AE91;AE92..4FC |
78120-12080 |
— | ||
|
78180C
|
78180C
90507-10016
Spring, Tension (For Accelerator Wire)
[05.1987 - 06.1991] AE92..EFI |
90507-10016 |
— | ||
|
78180P
|
78180P
78180-1A100 Cable Assy, Accelerator Control[05.1987 - 08.1990] AE92..EFI |
78180-1A100 |
US $43.97 |
||
| replacement | |||||
|
78180P
|
78180P
78180-1A101 Cable Assy, Accelerator Control[05.1987 - 08.1990] AE92..EFI |
78180-1A101 |
US $43.24 |
||
|
78180P
|
78180P
78180-1A101 Cable Assy, Accelerator Control[08.1990 - 06.1991] AE92..EFI |
78180-1A101 |
US $43.24 |
||
|
78183B
|
78183B
78183-12100 Clamp, Accelerator Control Cable[05.1987 - 06.1991] AE9# タイプ Ａ |
78183-12100 |
US $11.79 |
||
|
78184B
|
78184B
78184-12220 Bracket, Accelerator Control Cable[05.1987 - 06.1991] AE92..EFI |
78184-12220 |
US $15.58 |
||
|
78185A
|
78185A
78183-12110 Clamp, Accelerator Control Cable, No.2[05.1987 - 06.1991] AE92..EFI |
78183-12110 |
US $11.65 |
||
|
9011908201
|
9011908201
90119-08201 Bolt (for Transmission Control Cable Bracket) |
90119-08201 |
US $2.62 |
||
| replacement | |||||
|
9011908201
|
9011908201
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9011908616
|
9011908616
90119-08616 New Genuine Part |
90119-08616 |
US $1.60 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9151160812
|
9151160812
91511-60812
BOLT
|
91511-60812 |
— | ||
| replacement | |||||
|
9151160812
|
9151160812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.61 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.86 |
||
|
9165640630
|
9165640630
91656-40630 New Genuine Part |
91656-40630 |
US $1.89 |
||
| replacement | |||||
|
9165640630
|
9165640630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.84 |
||
