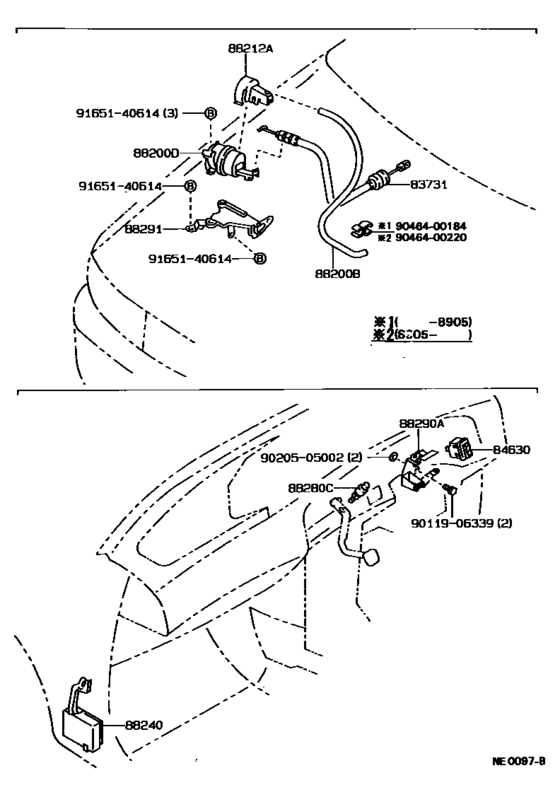

Cruise Control (Auto Drive) ([05.1987 - ] (8705- )AE92) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- AE92
- grade
- GT
- body
- 4D
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83731
|
83731
83731-12010 Cable, Cruise Control[05.1987 - 05.1992] AE92 |
83731-12010 |
US $54.16 |
||
|
84630
|
84630
84630-12030-01 Switch Assy, Cruise Control Main[05.1987 - 05.1989] AE92 BLACK,TRIM1# |
84630-12030-01 |
US $104.83 |
||
|
84630
|
84630
84630-12080-01 Switch Assy, Cruise Control Main[05.1989 - 05.1992] AE92..FXGT,GT BLACK,TRIM1# |
84630-12080-01 |
US $57.08 |
||
|
88200B
|
88200B
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
[05.1987 - 05.1992] AE92 ＊Ｈ，Ｌ＝６００，マーク＝＃＊ |
95411-19960 |
— | ||
| replacement | |||||
|
88200B
|
88200B
90999-92003
Hose, Breather (For Transfer Case)
[05.1987 - 05.1992] AE92 ＊Ｈ，Ｌ＝６００，マーク＝＃＊ |
90999-92003 |
— | ||
|
88200D
|
88200D
88200-12090 Actuator Assy, Cruise Control[05.1987 - 04.1988] AE92 |
88200-12090 |
US $723.63 |
||
| replacement | |||||
|
88200D
|
88200D
88200-12091 Actuator Assy, Cruise Control[05.1987 - 04.1988] AE92 |
88200-12091 |
US $720.72 |
||
|
88200D
|
88200D
88200-12091 Actuator Assy, Cruise Control[04.1988 - 05.1992] AE92 |
88200-12091 |
US $720.72 |
||
|
88212A
|
88212A
88212-12070 Cover, Cruise Control Actuator[05.1987 - 05.1992] AE92 |
88212-12070 |
US $15.58 |
||
|
88240
|
88240
88240-12120 Computer Assy, Cruise Control[05.1987 - 05.1992] AE92 |
88240-12120 |
US $522.70 |
||
|
88280C
|
88280C
88280-12030
Switch Assy, Clutch
[08.1987 - 05.1992] AE92..5F |
88280-12030 |
— | ||
|
88280C
|
88280C
88280-20010
Switch Assy, Cruise Control(Auto Drive) Release
[05.1987 - 08.1987] AE92..5F |
88280-20010 |
— | ||
|
88290A
|
88290A
88290-12010 Bellcrank Assy, Cruise Control[05.1987 - 05.1992] AE92 |
88290-12010 |
US $60.13 |
||
|
88291
|
88291
88291-12080 Bracket, Cruise Control(Auto Drive), No.1[05.1987 - 05.1992] AE92 |
88291-12080 |
US $18.05 |
||
|
9011906339
|
9011906339
90119-06339 New Genuine Part |
90119-06339 |
US $1.46 |
||
|
9020505002
|
9020505002
90205-05002 New Genuine Part |
90205-05002 |
US $0.79 |
||
|
9046400184
|
9046400184
90464-00184 Clamp, Vacuum Tube |
90464-00184 |
US $6.27 |
||
|
9046400220
|
9046400220
90464-00220 Clamp, Vacuum Tube |
90464-00220 |
US $3.32 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
