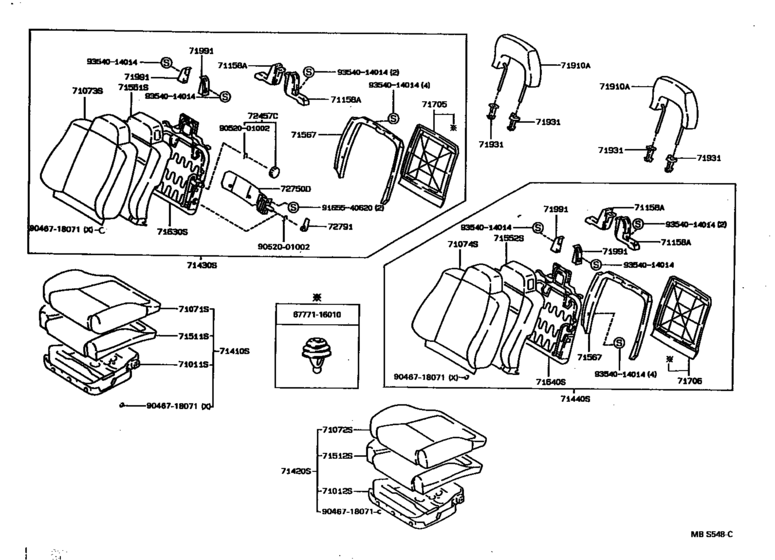

Front Seat & Seat Track ([05.1987 - ] (8705- )FXGT,GT) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- AE92
- grade
- GT
- body
- 4D
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71011S
|
71011S
71011-12280 Frame Sub-Assy, Front Seat Cushion, Rh[05.1987 - 05.1992] AE91,92,CE90,96,97,EE9# |
71011-12280 |
US $147.06 |
||
|
71012S
|
71012S
71011-12280 Frame Sub-Assy, Front Seat Cushion, Rh[05.1987 - 05.1992] AE91,92,CE90,96,97,EE9# |
71011-12280 |
US $147.06 |
||
|
71071S
|
71071S
71071-1H140-03 Cover, Front Seat Cushion, Rh(For Separate Type)[05.1987 - 05.1989] AE92 SADOW GRAY,TRIM1# |
71071-1H140-03 |
US $361.09 |
||
|
71071S
|
71071S
71071-1H141-03 Cover, Front Seat Cushion, Rh(For Separate Type)[05.1989 - 05.1992] AE92..FXGT,GT SHADOW GRAY,TRIM1# |
71071-1H141-03 |
US $448.45 |
||
|
71072S
|
71072S
71071-1H210-03 Cover, Front Seat Cushion, Lh(For Separate Type)[05.1987 - 05.1989] AE92 SADOW GRAY,TRIM1# |
71071-1H210-03 |
US $365.46 |
||
|
71072S
|
71072S
71071-1H211-03 Cover, Front Seat Cushion, Lh(For Separate Type)[05.1989 - 05.1992] AE92..FXGT,GT SHADOW GRAY,TRIM1# |
71071-1H211-03 |
US $448.45 |
||
|
71073S
|
71073S
71073-1H200-03 Cover, Front Seat Back, Rh(For Separate Type)[05.1987 - 05.1989] AE92 SHADOW GRAY,TRIM1# |
71073-1H200-03 |
US $521.25 |
||
| replacement | |||||
|
71073S
|
71073S
71074-1E160-03 Cover, Front Seat Back, Lh(For Separate Type)[05.1987 - 05.1989] AE92 SHADOW GRAY,TRIM1# |
71074-1E160-03 |
US $524.16 |
||
|
71073S
|
71073S
71073-1H201-03 Cover, Front Seat Back, Rh(For Separate Type)[05.1989 - 05.1992] AE92..FXGT,GT SHADOW GRAY,TRIM1# |
71073-1H201-03 |
US $621.71 |
||
|
71074S
|
71074S
71074-1E160-03 Cover, Front Seat Back, Lh(For Separate Type)[05.1987 - 05.1989] AE92 SHADOW GRAY,TRIM1# |
71074-1E160-03 |
US $524.16 |
||
|
71074S
|
71074S
71074-1E161-03 Cover, Front Seat Back, Lh(For Separate Type)[05.1989 - 05.1992] AE92..FXGT,GT SHADOW GRAY,TRIM1# |
71074-1E161-03 |
US $621.71 |
||
|
71158A
|
71158A
71158-12090 Frame, Front Seat Back, Upper Outer[05.1987 - 05.1992] AE92..FXGT,GT |
71158-12090 |
US $20.82 |
||
|
71410S
|
71410S
71410-1H480-03
Cushion Assy, Front Seat, Rh(For Separate Type)
[05.1987 - 05.1989] AE92 ***,SADOW GRAY,TRIM1# |
71410-1H480-03 |
— | ||
|
71410S
|
71410S
71410-1H481-03
Cushion Assy, Front Seat, Rh(For Separate Type)
[05.1989 - 05.1992] AE92..FXGT,GT ***,SHADOW GRAY,TRIM1# |
71410-1H481-03 |
— | ||
|
71420S
|
71420S
71410-1H490-03
Cushion Assy, Front Seat, Lh (For Separate Type)
[05.1987 - 05.1989] AE92 ***,SADOW GRAY,TRIM1# |
71410-1H490-03 |
— | ||
|
71420S
|
71420S
71410-1H491-03
Cushion Assy, Front Seat, Lh (For Separate Type)
[05.1989 - 05.1992] AE92..FXGT,GT ***,SHADOW GRAY,TRIM1# |
71410-1H491-03 |
— | ||
|
71430S
|
71430S
71430-1H510-03
Back Assy, Front Seat, Rh(For Separate Type)
[05.1987 - 05.1989] AE92 ***,SHADOW GRAY,TRIM1# |
71430-1H510-03 |
— | ||
|
71430S
|
71430S
71430-1H511-03
Back Assy, Front Seat, Rh(For Separate Type)
[05.1989 - 05.1992] AE92..FXGT,GT ***,SHADOW GRAY,TRIM1# |
71430-1H511-03 |
— | ||
|
71440S
|
71440S
71440-1H450-03
Back Assy, Front Seat, Lh(For Separate Type)
[05.1987 - 05.1989] AE92 ***,SHADOW GRAY,TRIM1# |
71440-1H450-03 |
— | ||
|
71440S
|
71440S
71440-1H451-03
Back Assy, Front Seat, Lh(For Separate Type)
[05.1989 - 05.1992] AE92..FXGT,GT ***,SHADOW GRAY,TRIM1# |
71440-1H451-03 |
— | ||
|
71511S
|
71511S
71511-12580 Pad, Front Seat Cushion, Rh(For Separate Type)[05.1987 - 05.1992] AE91,92..FXG,FXGT,FXZI,FXZS,G,GT |
71511-12580 |
US $243.15 |
||
|
71512S
|
71512S
71511-12580 Pad, Front Seat Cushion, Rh(For Separate Type)[05.1987 - 05.1992] AE91,92..FXG,FXGT,FXZI,FXZS,G,GT |
71511-12580 |
US $243.15 |
||
|
71551S
|
71551S
71551-12540 Pad, Front Seat Back, Rh(For Separate Type)[05.1987 - 08.1987] AE92 |
71551-12540 |
US $192.19 |
||
| replacement | |||||
|
71551S
|
71551S
71551-12550 Pad, Front Seat Back, Rh(For Separate Type)[05.1987 - 08.1987] AE92 |
71551-12550 |
US $187.82 |
||
|
71551S
|
71551S
71551-12550 Pad, Front Seat Back, Rh(For Separate Type)[08.1987 - 05.1992] AE92..FXGT,GT |
71551-12550 |
US $187.82 |
||
|
71552S
|
71552S
71551-12540 Pad, Front Seat Back, Rh(For Separate Type)[05.1987 - 08.1987] AE92 |
71551-12540 |
US $192.19 |
||
| replacement | |||||
|
71552S
|
71552S
71551-12550 Pad, Front Seat Back, Rh(For Separate Type)[05.1987 - 08.1987] AE92 |
71551-12550 |
US $187.82 |
||
|
71552S
|
71552S
71551-12550 Pad, Front Seat Back, Rh(For Separate Type)[08.1987 - 05.1992] AE92..FXGT,GT |
71551-12550 |
US $187.82 |
||
|
71567
|
71567
71567-12010 Pad, Front Seat Back Safety[05.1987 - 05.1992] AE92..FXGT,GT |
71567-12010 |
US $186.37 |
||
|
71630S
|
71630S
71630-12490 Spring Assy, Front Seat Back, Rh(For Separate Type)[05.1987 - 05.1992] AE92..FXGT,GT |
71630-12490 |
US $292.66 |
||
|
71640S
|
71640S
71630-12480 Spring Assy, Front Seat Back, Rh(For Separate Type)[05.1987 - 05.1992] AE92..FXGT,GT |
71630-12480 |
US $365.46 |
||
|
71705
|
71705
71705-12050-03 Board Sub-Assy, Front Seat Back, Rh[05.1987 - 05.1992] AE92..FXGT,GT SHADOW GRAY,TRIM1# |
71705-12050-03 |
US $308.67 |
||
|
71706
|
71706
71705-12050-03 Board Sub-Assy, Front Seat Back, Rh[05.1987 - 05.1992] AE92..FXGT,GT SHADOW GRAY,TRIM1# |
71705-12050-03 |
US $308.67 |
||
|
71910A
|
71910A
71910-12840-13 Headrest Assy, Front Seat[05.1987 - 05.1989] AE92 SHADOW GRAY,TRIM1# |
71910-12840-13 |
US $372.74 |
||
|
71910A
|
71910A
71910-12871-01 Headrest Assy, Front Seat[05.1989 - 05.1992] AE92..FXGT,GT BLACK,TRIM1# |
71910-12871-01 |
US $372.74 |
||
|
71931
|
71931
71930-12060-03 Support, Front Seat Headrest[05.1987 - 05.1992] AE92..FXGT,GT ロック付,SHADOW GRAY,TRIM1# |
71930-12060-03 |
US $16.45 |
||
|
71931
|
71931
71931-12030-03 Support, Front Seat Headrest[05.1987 - 05.1992] AE92..FXGT,GT ロック無,SHADOW GRAY,TRIM1# |
71931-12030-03 |
US $12.23 |
||
|
71991
|
71991
71991-12010-03 Cover, Headrest Support Base[05.1987 - 05.1992] AE92..FXGT,GT SHADOW GRAY,TRIM1# |
71991-12010-03 |
US $7.72 |
||
|
72457C
|
72457C
72457-14030-23
Knob, Seat Adjuster
[05.1987 - 05.1992] AE92..FXGT,GT GRAY,TRIM1# |
72457-14030-23 |
— | ||
| replacement | |||||
|
72457C
|
72457C
72457-14030-11
Knob, Seat Adjuster
[05.1987 - 05.1992] AE92..FXGT,GT GRAY,TRIM1# |
72457-14030-11 |
— | ||
|
72750D
|
72750D
72750-12070 Adjuster Assy, Lumbar Support, Rh[05.1987 - 05.1992] AE92..FXGT,GT |
72750-12070 |
US $122.30 |
||
|
72791
|
72791
72791-22020-23 Lever, Lumbar Support[05.1987 - 05.1992] AE92..FXGT,GT GRAY,TRIM1# |
72791-22020-23 |
US $15.58 |
||
| replacement | |||||
|
72791
|
72791
72791-22020-C0 Lever, Lumbar Support[05.1987 - 05.1992] AE92..FXGT,GT GRAY,TRIM1# |
72791-22020-C0 |
US $15.20 |
||
|
6777116010
|
6777116010
67771-16010 Retainer(For Back Door Trim Board) |
67771-16010 |
US $2.33 |
||
|
9046718071
|
9046718071
90467-18071
Clip(For Rear Seat Cushion Cover)
|
90467-18071 |
— | ||
|
9052001002
|
9052001002
90520-01002
Ring, Shaft Snap(For Vent Window Control)
|
90520-01002 |
— | ||
| replacement | |||||
|
9052001002
|
9052001002
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle) |
90520-01274 |
from US $0.94 |
||
|
9165540620
|
9165540620
91655-40620
Bolt(For Oil Receiver Pipe)
|
91655-40620 |
— | ||
| replacement | |||||
|
9165540620
|
9165540620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
|
9354014014
|
9354014014
93540-14014 Screw |
93540-14014 |
from US $1.27 |
||
