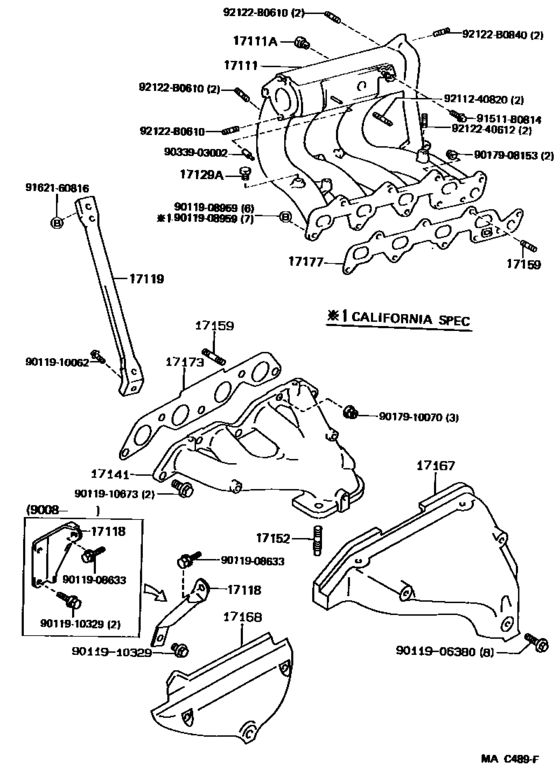

Manifold ([08.1989 - ] (8908- )4AFE) Diagram Toyota COROLLA
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-16140 Manifold, IntakeINTAKE [08.1989 - 06.1991] 4AFE..AE92..USA EX. EMISSION CONTROL(FOR USA CALIFORNIA) |
17101-16140 |
US $567.84 |
||
|
17111
|
17111
17101-16170 Manifold, IntakeINTAKE [08.1989 - 06.1991] 4AFE..AE92 |
17101-16170 |
US $512.51 |
||
|
17111A
|
17111A
90345-51006 Plug, W/head Taper Screw, No.2[08.1989 - 06.1991] 4AFE..AE92 |
90345-51006 |
from US $0.87 |
||
|
17118
|
17118
17118-16070 Stay, ManifoldMANIFOLD [08.1987 - 08.1990] 4AF#..AE92 |
17118-16070 |
US $20.24 |
||
| replacements | |||||
|
17118
|
17118
17118-16071 Stay, Manifold[08.1987 - 08.1990] 4AF#..AE92 |
17118-16071 |
US $20.09 |
||
|
17118
|
17118
90119-10329 New Genuine Part[08.1987 - 08.1990] 4AF#..AE92 |
90119-10329 |
US $1.60 |
||
|
17118
|
17118
17118-16071 Stay, Manifold[08.1990 - 06.1991] 4AFE..AE92 |
17118-16071 |
US $20.09 |
||
|
17119
|
17119
17139-16030
Stay, Manifold, No.2
[08.1989 - 06.1991] 4AFE..AE92 |
17139-16030 |
— | ||
|
17129A
|
17129A
90345-51006 Plug, W/head Taper Screw, No.2[08.1989 - 06.1991] 4AFE..AE92 |
90345-51006 |
from US $0.87 |
||
|
17141
|
17141
17141-16250
Manifold, Exhaust
[08.1989 - 06.1991] 4AFE..AE92 |
17141-16250 |
— | ||
| replacements | |||||
|
17141
|
17141
17141-19016 Manifold, ExhaustEXHAUST [08.1989 - 06.1991] 4AFE..AE92 |
17141-19016 |
US $429.52 |
||
|
17141
|
17141
90119-06817 BOLT WWASHER[08.1989 - 06.1991] 4AFE..AE92 |
90119-06817 |
from US $0.86 |
||
|
17152
|
17152
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1988 - 06.1991] 4AF#..AE92 |
90116-10146 |
from US $1.81 |
||
|
17159
|
17159
92112-60825 Bolt, Stud(For Oil Filter)[08.1987 - 06.1991] 4AF#..AE92 INTAKE MANIFOLD |
92112-60825 |
US $2.87 |
||
|
17159
|
17159
92112-61028 Bolt, Stud(For Manifold To Cylinder Head)[07.1989 - 06.1991] 4AF#..AE92 EXHAUST MANIFOLD |
92112-61028 |
US $4.30 |
||
|
17167
|
17167
17167-16100 Insulator, Exhaust Manifold Heat, No.1EXHAUST MANIFOLD HEAT, NO.1 [08.1989 - 06.1991] 4AFE..AE92 |
17167-16100 |
US $107.74 |
||
| replacement | |||||
|
17167
|
17167
17167-15080 Insulator, Exhaust Manifold Heat, No.1[08.1989 - 06.1991] 4AFE..AE92 |
17167-15080 |
US $109.20 |
||
|
17168
|
17168
17168-16070 Insulator, Exhaust Manifold Heat, No.2[08.1987 - 06.1991] 4AF#..AE92 |
17168-16070 |
US $29.99 |
||
| replacement | |||||
|
17168
|
17168
17168-16071 Insulator, Exhaust Manifold Heat, No.2[08.1987 - 06.1991] 4AF#..AE92 |
17168-16071 |
US $30.14 |
||
|
17173
|
17173
17173-15010 Gasket, Exhaust Manifold To Head[08.1987 - 12.1989] 4AF#..AE92 |
17173-15010 |
US $28.25 |
||
| replacement | |||||
|
17173
|
17173
17173-15011 Gasket, Exhaust Manifold To Head[08.1987 - 12.1989] 4AF#..AE92 |
17173-15011 |
from US $18.84 |
||
|
17173
|
17173
17173-15011 Gasket, Exhaust Manifold To Head[12.1989 - 06.1991] 4AFE..AE92 |
17173-15011 |
from US $18.84 |
||
|
17177
|
17177
17171-15020 Gasket, Intake Manifold To Head, No.1[08.1989 - 12.1989] 4AFE..AE92..USA EX. EMISSION CONTROL(FOR USA CALIFORNIA) |
17171-15020 |
US $13.69 |
||
| replacement | |||||
|
17177
|
17177
17171-15021 Gasket, Intake Manifold To Head, No.1[08.1989 - 12.1989] 4AFE..AE92..USA EX. EMISSION CONTROL(FOR USA CALIFORNIA) |
17171-15021 |
US $13.10 |
||
|
17177
|
17177
17171-15021 Gasket, Intake Manifold To Head, No.1[12.1989 - 06.1991] 4AFE..AE92..USA EX. EMISSION CONTROL(FOR USA CALIFORNIA) |
17171-15021 |
US $13.10 |
||
|
17177
|
17177
17171-16030
Gasket, Intake Manifold To Head, No.1
[08.1989 - 12.1989] 4AFE..AE92 |
17171-16030 |
— | ||
| replacement | |||||
|
17177
|
17177
17171-16031 Gasket, Intake Manifold To Head, No.1[08.1989 - 12.1989] 4AFE..AE92 |
17171-16031 |
US $17.14 |
||
|
17177
|
17177
17171-16031 Gasket, Intake Manifold To Head, No.1[12.1989 - 06.1991] 4AFE..AE92 |
17171-16031 |
US $17.14 |
||
|
91511B0814
|
91511B0814
91511-B0814 BOLT |
91511-B0814 |
US $1.79 |
||
|
92122B0610
|
92122B0610
92122-B0610 New Genuine Part |
92122-B0610 |
US $1.75 |
||
|
92122B0840
|
92122B0840
92122-B0840 New Genuine Part |
92122-B0840 |
US $1.02 |
||
|
9011906380
|
9011906380
90119-06380
New Genuine Part
|
90119-06380 |
— | ||
| replacement | |||||
|
9011906380
|
9011906380
90119-06817 BOLT WWASHER |
90119-06817 |
from US $0.86 |
||
|
9011908633
|
9011908633
90119-08633 New Genuine Part |
90119-08633 |
from US $1.60 |
||
|
9011908959
|
9011908959
90119-08959 New Genuine Part |
90119-08959 |
US $1.22 |
||
|
9011910062
|
9011910062
90119-10062
New Genuine Part
|
90119-10062 |
— | ||
| replacement | |||||
|
9011910062
|
9011910062
90119-10640 New Genuine Part |
90119-10640 |
US $4.48 |
||
|
9011910329
|
9011910329
90119-10329 New Genuine Part |
90119-10329 |
US $1.60 |
||
|
9011910673
|
9011910673
90119-10673 New Genuine Part |
90119-10673 |
US $3.58 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.78 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.37 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $44.70 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
from US $3.23 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
|
9211240820
|
9211240820
92112-40820 Bolt, Stud(For Manifold To Venturi) |
92112-40820 |
US $1.05 |
||
|
9212240612
|
9212240612
92122-40612 Bolt, Stud(For Cold Start Injector) |
92122-40612 |
US $1.89 |
||
