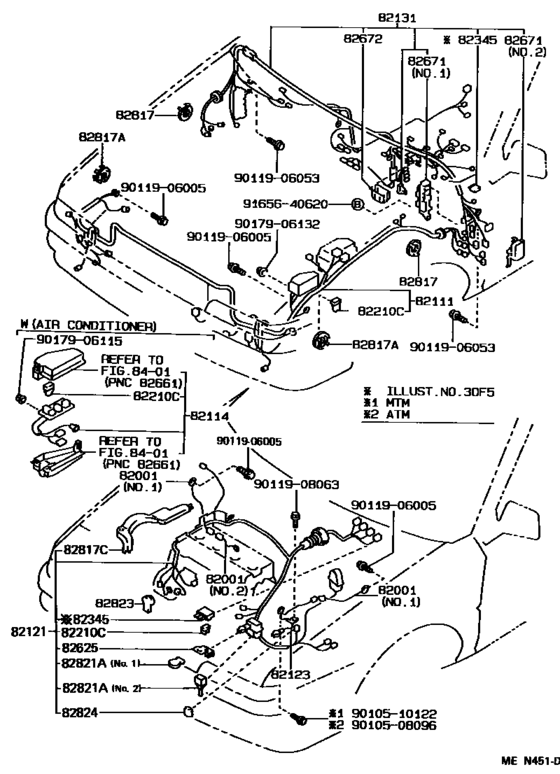

Wiring & Clamp ([08.1989 - ] (8908- )DX,SR5) Diagram Toyota COROLLA
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07206 Cable, Bond, No.1[08.1987 - 06.1991] AE92 NO.1 |
90980-07206 |
US $8.56 |
||
|
82001
|
82001
90980-07299 Cable, Bond, No.1[09.1987 - 06.1991] AE92..DX,SR5 NO.2 |
90980-07299 |
US $6.46 |
||
|
82111
|
82111
82111-1E100 Wire, Engine Room MainENGINE ROOM MAIN [08.1989 - 06.1991] AE92..USA |
82111-1E100 |
US $799.34 |
||
|
82111
|
82111
82111-1E110 Wire, Engine Room MainENGINE ROOM MAIN [08.1989 - 06.1991] AE92..DX ANTI THEFT DEVICE |
82111-1E110 |
US $799.34 |
||
|
82121
|
82121
82121-1E041 Wire, EngineENGINE [08.1989 - 08.1990] AE92..5F..(DX,SR5) |
82121-1E041 |
US $1,073.07 |
||
|
82121
|
82121
82121-1E042 Wire, EngineENGINE [08.1990 - 09.1990] AE92..5F..(DX,SR5) |
82121-1E042 |
US $612.98 |
||
| replacement | |||||
|
82121
|
82121
82121-1E043 Wire, EngineENGINE [08.1990 - 09.1990] AE92..5F..(DX,SR5) |
82121-1E043 |
US $605.70 |
||
|
82121
|
82121
82121-1E043 Wire, EngineENGINE [09.1990 - 06.1991] AE92..5F..(DX,SR5) |
82121-1E043 |
US $605.70 |
||
|
82121
|
82121
82121-1E111 Wire, EngineENGINE [08.1989 - 08.1990] AE92..5F..(DX,SR5)..USA CALIFORNIA SPEC |
82121-1E111 |
US $1,073.07 |
||
|
82121
|
82121
82121-1E112 Wire, EngineENGINE [08.1990 - 09.1990] AE92..5F..(DX,SR5)..USA CALIFORNIA SPEC |
82121-1E112 |
US $612.98 |
||
| replacement | |||||
|
82121
|
82121
82121-1E113 Wire, EngineENGINE [08.1990 - 09.1990] AE92..5F..(DX,SR5)..USA CALIFORNIA SPEC |
82121-1E113 |
US $605.70 |
||
|
82121
|
82121
82121-1E113 Wire, EngineENGINE [09.1990 - 06.1991] AE92..5F..(DX,SR5)..USA CALIFORNIA SPEC |
82121-1E113 |
US $605.70 |
||
|
82123
|
82123
82123-12170
Wire, Engine, No.3
[08.1987 - 06.1991] AE92..4FC,5F |
82123-12170 |
— | ||
|
82131
|
82131
82131-1K740 Wire, CowlCOWL [08.1989 - 08.1990] AE92..(DX,SR5)..USA |
82131-1K740 |
US $1,587.04 |
||
|
82131
|
82131
82131-1K741 Wire, CowlCOWL [08.1990 - 06.1991] AE92..(DX,SR5)..USA |
82131-1K741 |
US $1,587.04 |
||
|
82131
|
82131
82131-1K750 Wire, CowlCOWL [08.1989 - 08.1990] AE92..DX ANTI THEFT DEVICE |
82131-1K750 |
US $1,147.33 |
||
|
82131
|
82131
82131-1K751 Wire, CowlCOWL [08.1990 - 06.1991] AE92..DX ANTI THEFT DEVICE |
82131-1K751 |
US $1,147.33 |
||
|
82210C
|
82210C
90982-08188 Fusible Link[08.1989 - 06.1991] AE92 30A,TERMINAL:FEMALE |
90982-08188 |
from US $4.17 |
||
|
82210C
|
82210C
90982-08189 Fusible Link[08.1987 - 06.1991] AE92..EFI 40A,TERMINAL:FEMALE |
90982-08189 |
US $7.88 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[10.1987 - 12.1989] AE92 80A,TERMINAL:MALE |
90982-08203 |
from US $7.23 |
||
|
82210C
|
82210C
90982-08223 Fusible Link[10.1987 - 06.1991] AE92 30A,TERMINAL:MALE |
90982-08223 |
US $12.72 |
||
|
82210C
|
82210C
90982-08246 Fusible Link[08.1989 - 06.1991] AE92..DX,SR5 100A,TERMINAL:MALE |
90982-08246 |
from US $7.29 |
||
|
82345
|
82345
82345-12050 Diode[08.1987 - 06.1991] AE92..DX,SR5 NO.4 |
82345-12050 |
US $14.16 |
||
|
82345
|
82345
82345-20040 Diode[08.1987 - 06.1991] AE92..DX,SR5 NO.5 |
82345-20040 |
US $12.06 |
||
|
82345
|
82345
82345-32020 Diode[08.1989 - 06.1991] AE92..DX NO.8 |
82345-32020 |
US $13.45 |
||
|
82625
|
82625
82625-12060 Terminal, Fusible Link[08.1989 - 06.1991] AE92..DX,SR5 |
82625-12060 |
US $18.20 |
||
|
82671
|
82671
82671-12020 Block, Junction[08.1987 - 06.1991] AE92 NO.2 |
82671-12020 |
US $24.17 |
||
|
82671
|
82671
82671-12030 Block, Junction[08.1987 - 06.1991] AE92 NO.1 |
82671-12030 |
US $174.72 |
||
|
82672
|
82672
82672-12100 Cover, Junktion Block[08.1987 - 06.1991] AE92 |
82672-12100 |
US $6.41 |
||
|
82817
|
82817
82817-14350 Protector, Wiring Harness, No.1[08.1987 - 06.1991] AE92 |
82817-14350 |
US $12.67 |
||
|
82817A
|
82817A
82817-32010
Protector, Wiring Harness, No.1
[08.1987 - 06.1991] AE92 |
82817-32010 |
— | ||
|
82817C
|
82817C
82817-12700
Protector, Wiring Harness, No.4
[08.1987 - 06.1991] AE92..DX,SR5 |
82817-12700 |
— | ||
|
82821A
|
82821A
82821-12230 Cover, Connector[08.1989 - 06.1991] AE92..DX,SR5 NO.2 |
82821-12230 |
US $8.30 |
||
|
82821A
|
82821A
82821-12260 Cover, Connector(For Battery Terminal)[08.1989 - 06.1991] AE92..DX,SR5 NO.1 |
82821-12260 |
US $7.72 |
||
|
82823
|
82823
82823-22050 Cap, Terminal, No.1[08.1987 - 06.1991] AE92 |
82823-22050 |
from US $4.39 |
||
|
82824
|
82824
82824-32030 Connector, Wiring Harness[08.1987 - 06.1991] AE92 |
82824-32030 |
US $8.91 |
||
|
9010508096
|
9010508096
90105-08096
New Genuine Part
|
90105-08096 |
— | ||
|
9010510122
|
9010510122
90105-10122 New Genuine Part |
90105-10122 |
US $1.22 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9011906053
|
9011906053
90119-06053 New Genuine Part |
90119-06053 |
US $0.96 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.51 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9017906132
|
9017906132
90179-06132
Clip(For Front Bumper), No.1
|
90179-06132 |
— | ||
| replacement | |||||
|
9017906132
|
9017906132
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9165640620
|
9165640620
91656-40620
Bolt(For Oil Receiver Pipe)
|
91656-40620 |
— | ||
| replacement | |||||
|
9165640620
|
9165640620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
