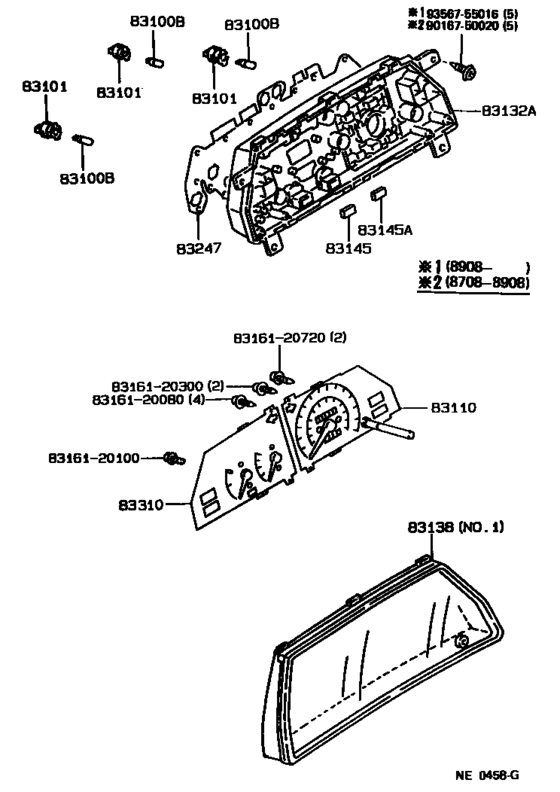

Meter ([08.1987 - ] (8708- )DX) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- AE92
- grade
- DX
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1987 - 08.1989] AE92..DX 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.09 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1987 - 06.1991] AE92..DX 12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1987 - 06.1991] AE92..DX 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1987 - 08.1989] AE92..DX 14V 1.4W BULB |
83101-14040 |
US $2.44 |
||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[08.1987 - 08.1989] AE92..DX 12V 3.4W BULB |
83101-20040 |
from US $1.56 |
||
|
83110
|
83110
83110-1E210
Speedometer Assy
[08.1987 - 08.1989] AE92..DX |
83110-1E210 |
— | ||
|
83110
|
83110
83110-1E220
Speedometer Assy
[08.1987 - 08.1989] AE92..DX CALIFORNIA SPEC |
83110-1E220 |
— | ||
|
83132A
|
83132A
83132-1A080 Case, MeterMETER [08.1987 - 04.1989] AE92..DX |
83132-1A080 |
US $64.65 |
||
| replacement | |||||
|
83132A
|
83132A
83132-1A081 Case, MeterMETER [08.1987 - 04.1989] AE92..DX |
83132-1A081 |
US $64.79 |
||
|
83132A
|
83132A
83132-1A081 Case, MeterMETER [04.1989 - 06.1991] AE92..DX |
83132-1A081 |
US $64.79 |
||
|
83138
|
83138
83138-1A020 Glass, SpeedometerSPEEDOMETER [08.1987 - 08.1989] AE92..CBR NO.1; AE92..EFI NO,1 |
83138-1A020 |
US $54.75 |
||
|
83145
|
83145
83145-1A160 Lens, Meter, No.1[08.1987 - 06.1991] AE92 |
83145-1A160 |
US $5.24 |
||
|
83145A
|
83145A
83145-1A180 Lens, Meter, No.2METER, NO.2 [08.1987 - 06.1991] AE92..DX |
83145-1A180 |
US $15.87 |
||
|
83247
|
83247
83247-1A480 Plate, Meter CircuitMETER CIRCUIT [08.1987 - 08.1989] AE92..DX |
83247-1A480 |
US $90.27 |
||
|
83310
|
83310
83243-1A120
Gage Assy, Fuel Receiver
[08.1987 - 08.1989] AE92..DX |
83243-1A120 |
— | ||
|
8316120080
|
8316120080
83161-20080
Case, Combination Meter Mirror, No.1
|
83161-20080 |
— | ||
|
8316120100
|
8316120100
83161-20100 Case, Combination Meter Mirror, No.1 |
83161-20100 |
US $1.69 |
||
|
8316120300
|
8316120300
83161-20300 Case, Combination Meter Mirror, No.1 |
83161-20300 |
US $1.75 |
||
|
8316120720
|
8316120720
83161-20720 Case, Combination Meter Mirror, No.1 |
83161-20720 |
US $1.46 |
||
|
9016750020
|
9016750020
90167-50020 SCREW PAN TAPPING |
90167-50020 |
US $2.15 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
