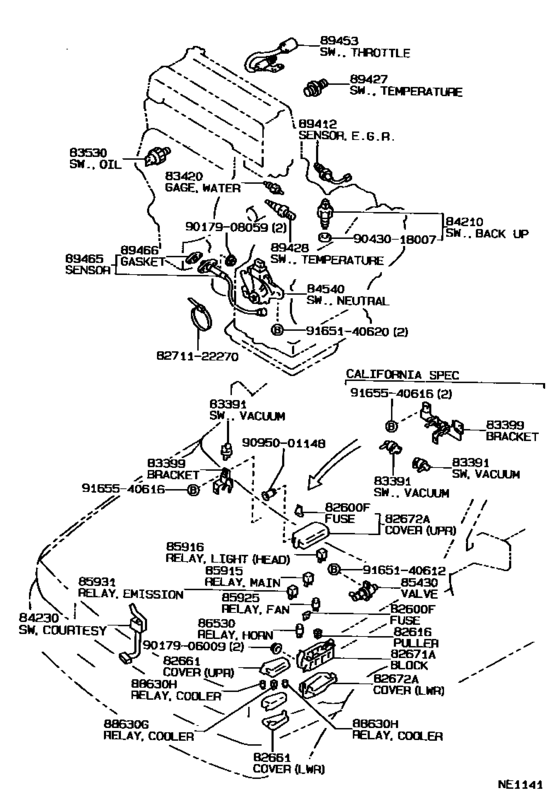

Switch & Relay & Computer ([08.1987 - 08.1989] (8708-8908)CBR) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- AE92
- grade
- DX
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[08.1987 - 08.1989] AE92 30A |
90982-07011 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[08.1987 - 08.1989] AE92 10A |
90982-09002 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.1987 - 08.1989] AE92 15A |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[08.1987 - 06.1991] AE92 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[08.1987 - 08.1989] AE92 7.5A |
90982-09005 |
from US $0.99 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[08.1987 - 08.1989] AE92 |
82616-12010 |
US $3.40 |
||
|
82661
|
82661
82661-12140
Cover, Relay Block, No.1
[08.1987 - 06.1991] AE92 UPR |
82661-12140 |
— | ||
|
82661
|
82661
82661-12160 Cover, Relay Block, No.1[08.1987 - 06.1991] AE92 LWR |
82661-12160 |
US $7.28 |
||
|
82671A
|
82671A
82671-12100 Block, JunctionJUNCTION [08.1987 - 08.1989] AE92..CBR |
82671-12100 |
US $276.64 |
||
|
82672A
|
82672A
82672-12060 Cover, Junction BlockJUNCTION BLOCK [08.1987 - 08.1989] AE92..CBR UPR |
82672-12060 |
US $28.83 |
||
|
82672A
|
82672A
82672-12070
Cover, Junction Block
[08.1987 - 08.1989] AE92 LWR |
82672-12070 |
— | ||
|
83391
|
83391
83391-12210 Switch, Vacuum[08.1987 - 08.1989] AE92..CBR MARK=80FM,TOKAIRIKA |
83391-12210 |
US $59.75 |
||
|
83391
|
83391
83391-12220 Switch, VacuumVACUUM [10.1987 - 08.1989] AE92..5F..USA..CBR MARK=420FB,AISIN |
83391-12220 |
US $63.48 |
||
|
83391
|
83391
83391-12250
Switch, Vacuum
[10.1987 - 08.1989] AE92..5F..USA..CBR MARK=420FB,TOKAIRIKA |
83391-12250 |
— | ||
|
83399
|
83399
83399-12120 Bracket, Vacuum Switch[08.1987 - 08.1989] AE92..CBR |
83399-12120 |
US $8.01 |
||
|
83399
|
83399
83399-12130
Bracket, Vacuum Switch
[10.1987 - 08.1989] AE92..USA..CBR CALIFORNIA SPEC |
83399-12130 |
— | ||
|
83420
|
83420
83420-16020 Gage Assy, Water Temperature Sender[08.1987 - 06.1991] AE92..DX,SR5 |
83420-16020 |
from US $36.93 |
||
|
83530
|
83530
83530-30050
Switch Assy, Oil Pressure (For Engine)
[08.1987 - 03.1990] AE92..DX,SR5 |
83530-30050 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60050 Switch Assy, Oil Pressure (For Engine)[08.1987 - 03.1990] AE92..DX,SR5 |
83530-60050 |
from US $29.06 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[08.1987 - 06.1991] AE92..5F..(DX,SR5) |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[08.1987 - 06.1991] AE92..5F..(DX,SR5) |
84210-52050 |
from US $22.85 |
||
|
84230
|
84230
84231-12040
Switch Assy, Courtesy Lamp (For Engine Room)
[08.1987 - 06.1991] AE92..DX ANTI THEFT DEVICE |
84231-12040 |
— | ||
|
85430
|
85430
90925-09011 Valve, Outer Vent ControlOUTER VENT CONTROL [08.1987 - 08.1989] AE92..CBR |
90925-09011 |
US $62.46 |
||
|
85915
|
85915
90987-04002 Relay, Ignition, No.1[08.1987 - 06.1991] AE92 |
90987-04002 |
from US $24.30 |
||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[08.1987 - 06.1991] AE92 MARUKO,TAIL |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[08.1987 - 06.1991] AE92 MARUKO,TAIL |
90987-02004 |
from US $28.10 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[08.1987 - 06.1991] AE92 NIPPONDENSO,TAIL |
90987-02004 |
from US $28.10 |
||
|
85916
|
85916
90987-02006 Relay[08.1987 - 08.1989] AE92 HEAD |
90987-02006 |
from US $26.75 |
||
|
85925
|
85925
90987-03001 Relay[08.1987 - 06.1991] AE92 |
90987-03001 |
from US $31.65 |
||
|
85931
|
85931
90987-02006 Relay[08.1987 - 08.1989] AE92..CBR |
90987-02006 |
from US $26.75 |
||
|
86530
|
86530
90987-02002
Relay, Ignition, No.1
[08.1987 - 06.1991] AE92 MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
86530
|
86530
90987-02004 Relay Assy, Starter[08.1987 - 06.1991] AE92 MARUKO |
90987-02004 |
from US $28.10 |
||
|
86530
|
86530
90987-02004 Relay Assy, Starter[08.1987 - 06.1991] AE92 NIPPONDENSO |
90987-02004 |
from US $28.10 |
||
|
88630G
|
88630G
88630-32010
Relay Assy, Cooler
[08.1987 - 09.1990] AE92 |
88630-32010 |
— | ||
|
88630H
|
88630H
90987-02004 Relay Assy, Starter[08.1987 - 09.1990] AE92 |
90987-02004 |
from US $28.10 |
||
|
89412
|
89412
89412-12010 Sensor, E.g.r Gas TemperatureE.G.R GAS TEMPERATURE [10.1987 - 08.1988] AE92..USA..CBR |
89412-12010 |
US $168 |
||
|
89427
|
89427
89427-12090 Switch, Temperature Detect[08.1987 - 08.1989] AE92..CBR |
89427-12090 |
US $68.49 |
||
|
89428
|
89428
89428-15011 Switch, Temperature Detect, No.2[08.1987 - 08.1989] AE92 |
89428-15011 |
US $78.62 |
||
| replacement | |||||
|
89428
|
89428
89428-32010 Switch, Temperature Detect, No.2[08.1987 - 08.1989] AE92 |
89428-32010 |
US $84.91 |
||
|
89453
|
89453
89453-12040
Switch, Throttle Position (For T.c.s.)
[08.1987 - 08.1989] AE92..CBR |
89453-12040 |
— | ||
|
89465
|
89465
89465-19255 Sensor, OxygenOXYGEN [08.1987 - 08.1989] AE92..CBR |
89465-19255 |
US $131.04 |
||
| replacement | |||||
|
89465
|
89465
89465-29166 Sensor, Oxygen[08.1987 - 08.1989] AE92..CBR |
89465-29166 |
US $132.50 |
||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[10.1988 - 06.1991] AE92..DX,SR5 |
89466-20020 |
from US $12.77 |
||
|
89466
|
89466
89466-30010
Gasket(For Exhaust Manifold Plate)
[08.1987 - 10.1988] AE92..CBR |
89466-30010 |
— | ||
| replacement | |||||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[08.1987 - 10.1988] AE92..CBR |
89466-20020 |
from US $12.77 |
||
|
8271122270
|
8271122270
82711-22270 Clamp(For Transfer Vacuum Tube) |
82711-22270 |
US $3.58 |
||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $0.90 |
||
|
9095001148
|
9095001148
90950-01148 New Genuine Part |
90950-01148 |
US $1.60 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.86 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
