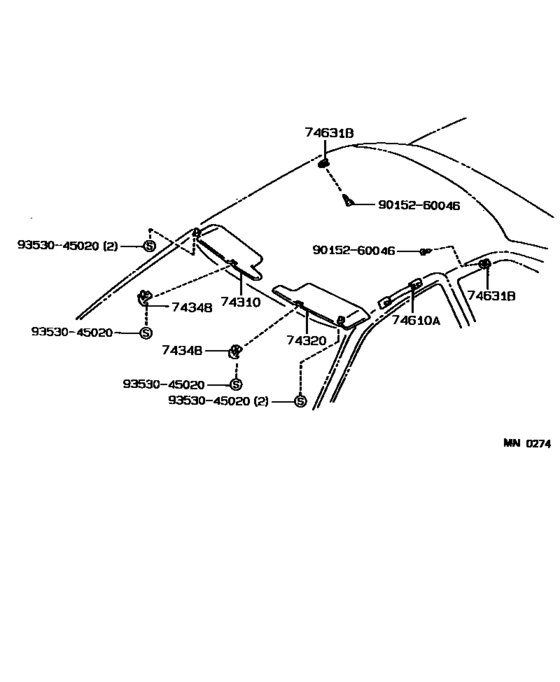

Armrest & Visor ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74310
|
74310
74310-12850-02
Visor Assy, Rh
[08.1987 - 08.1989] AE92..EFI RED,TRIM3#; AE92..DX W(SUN ROOF),RED,TRIM3# |
74310-12850-02 |
— | ||
|
74310
|
74310
74310-12850-03
Visor Assy, Rh
[08.1987 - 08.1989] AE92..EFI LIGHT GRAY,TRIM1#; AE92..DX W(SUN ROOF),LIGHT GRAY,TRIM1# |
74310-12850-03 |
— | ||
|
74310
|
74310
74310-12850-04
Visor Assy, Rh
[08.1987 - 08.1989] AE92..EFI LIGHT BLUE,TRIM8#; AE92..DX W(SUN ROOF),LIGHT BLUE,TRIM8# |
74310-12850-04 |
— | ||
|
74320
|
74320
74320-12640-02
Visor Assy, Lh
[08.1987 - 08.1989] AE92 RED,TRIM3# |
74320-12640-02 |
— | ||
|
74320
|
74320
74320-12640-03
Visor Assy, Lh
[08.1987 - 08.1989] AE92 LIGHT GRAY,TRIM1# |
74320-12640-03 |
— | ||
|
74320
|
74320
74320-12640-04
Visor Assy, Lh
[08.1987 - 08.1989] AE92 LIGHT BLUE,TRIM8# |
74320-12640-04 |
— | ||
|
74348
|
74348
74348-12020-03
Holder, Visor
[11.1987 - 08.1990] AE92 LIGHT GRAY,TRIM1# |
74348-12020-03 |
— | ||
| replacement | |||||
|
74348
|
74348
74348-12020-B8 Holder, Visor (Gray)[11.1987 - 08.1990] AE92 LIGHT GRAY,TRIM1# |
74348-12020-B8 |
from US $5.91 |
||
|
74348
|
74348
74348-12020-04 Holder, Visor[11.1987 - 06.1991] AE92 LIGHT BLUE,TRIM8# |
74348-12020-04 |
US $5.39 |
||
| replacement | |||||
|
74348
|
74348
74348-12020-B8 Holder, Visor (Gray)[11.1987 - 06.1991] AE92 LIGHT BLUE,TRIM8# |
74348-12020-B8 |
from US $5.91 |
||
|
74348
|
74348
74348-12020-12 Holder, VisorVISOR [11.1987 - 06.1991] AE92..CBR;AE92..(GTS,SR5)..EFI RED,TRIM3# |
74348-12020-12 |
US $5.39 |
||
| replacement | |||||
|
74348
|
74348
74348-12020-42 Holder, Visor[11.1987 - 06.1991] AE92..CBR;AE92..(GTS,SR5)..EFI RED,TRIM3# |
74348-12020-42 |
US $5.39 |
||
|
74610A
|
74610A
74610-12050-02 Grip Sub-Assy, AssistASSIST [08.1987 - 06.1991] AE92..CBR;AE92..(GTS,SR5)..EFI RED,TRIM3# |
74610-12050-02 |
US $38.44 |
||
| replacement | |||||
|
74610A
|
74610A
74610-14030-02
Grip Sub-Assy, Assist, Front
[08.1987 - 06.1991] AE92..CBR;AE92..(GTS,SR5)..EFI RED,TRIM3# |
74610-14030-02 |
— | ||
|
74610A
|
74610A
74610-12050-03 Grip Sub-Assy, Assist[08.1987 - 06.1991] AE92 SHADOW GRAY,TRIM1# |
74610-12050-03 |
US $38.44 |
||
|
74610A
|
74610A
74610-12050-04 Grip Sub-Assy, Assist[08.1987 - 06.1991] AE92 DARK BLUE,TRIM8# |
74610-12050-04 |
US $38.44 |
||
|
74631B
|
74631B
74631-12070-03 Hook, Coat[08.1987 - 08.1989] AE92 GRAY,TRIM1# |
74631-12070-03 |
US $8.59 |
||
| replacement | |||||
|
74631B
|
74631B
74631-12070-01
Hook, Coat, A
[08.1987 - 08.1989] AE92 GRAY,TRIM1# |
74631-12070-01 |
— | ||
|
74631B
|
74631B
74631-12070-14 Hook, Coat[08.1987 - 06.1991] AE92 DARK BLUE,TRIM8# |
74631-12070-14 |
US $8.59 |
||
| replacement | |||||
|
74631B
|
74631B
74631-12070-01
Hook, Coat, A
[08.1987 - 06.1991] AE92 DARK BLUE,TRIM8# |
74631-12070-01 |
— | ||
|
74631B
|
74631B
74631-12070-22 Hook, Coat, ACOAT [08.1987 - 06.1991] AE92..CBR;AE92..(GTS,SR5)..EFI RED,TRIM3# |
74631-12070-22 |
US $8.59 |
||
| replacement | |||||
|
74631B
|
74631B
74631-12070-01
Hook, Coat, A
[08.1987 - 06.1991] AE92..CBR;AE92..(GTS,SR5)..EFI RED,TRIM3# |
74631-12070-01 |
— | ||
|
9015260046
|
9015260046
90152-60046 New Genuine Part |
90152-60046 |
US $1.22 |
||
|
9353045020
|
9353045020
93530-45020 SCREW |
93530-45020 |
from US $1.97 |
||
