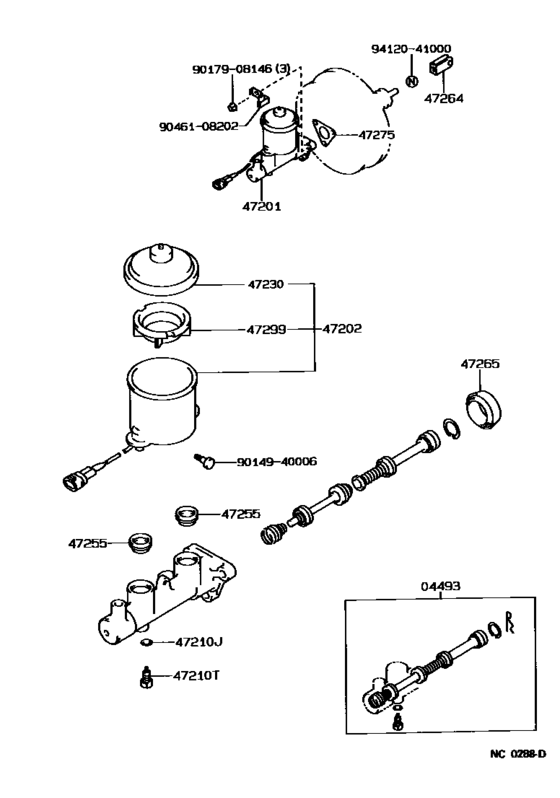

Brake Master Cylinder ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-16040
Cylinder Kit, Brake Master
[08.1987 - 06.1991] AE92..GTS |
04493-16040 |
— | ||
| replacement | |||||
|
04493
|
04493
04493-42020 Cylinder Kit, Brake Master[08.1987 - 06.1991] AE92..GTS |
04493-42020 |
US $66.74 |
||
|
47201
|
47201
47201-12580 Cylinder Sub-Assy, Brake MasterBRAKE MASTER [08.1987 - 06.1991] AE92..GTS |
47201-12580 |
US $426.61 |
||
|
47202
|
47202
47220-12070 Reservoir Sub-Assy, Brake Master CylinderBRAKE MASTER CYLINDER [08.1987 - 06.1991] AE92 |
47220-12070 |
US $136.86 |
||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[08.1987 - 06.1991] AE92 |
90430-06104 |
US $1.24 |
||
|
47210T
|
47210T
90109-06077 Bolt(For Brake Master Cylinder)[08.1987 - 06.1991] AE92 |
90109-06077 |
US $1.22 |
||
|
47230
|
47230
47230-16010 Cap Assy, Brake Master Cylinder Reservoir Filler[08.1987 - 10.1987] AE92..EFI |
47230-16010 |
US $9.22 |
||
|
47255
|
47255
47255-16010 Grommet, Master Cylinder Reservoir[08.1988 - 06.1991] AE92 |
47255-16010 |
from US $4.54 |
||
|
47264
|
47264
47264-10080 Clevis, Master Cylinder Push Rod[08.1988 - 06.1991] AE92 |
47264-10080 |
US $9.32 |
||
|
47265
|
47265
47265-20050 Boot, Clutch Master Cylinder[08.1987 - 06.1991] AE92 |
47265-20050 |
from US $3.72 |
||
|
47275
|
47275
47275-32010 Gasket, Brake Master Cylinder[08.1987 - 10.1987] AE92..EFI |
47275-32010 |
US $2.89 |
||
|
47299
|
47299
47299-16010 Strainer, Brake Master Cylinder Reservoir[08.1987 - 10.1987] AE92..EFI |
47299-16010 |
US $8.01 |
||
|
9014940006
|
9014940006
90149-40006 New Genuine Part |
90149-40006 |
US $1.10 |
||
|
9017908146
|
9017908146
90179-08146
Nut (For Transmission Control Cable)
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut (For Front Wiper Arm Setting) |
90179-08204 |
from US $0.99 |
||
|
9046108202
|
9046108202
90461-08202 Clamp(For Brake Master Cylinder) |
90461-08202 |
US $8.04 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.70 |
||
