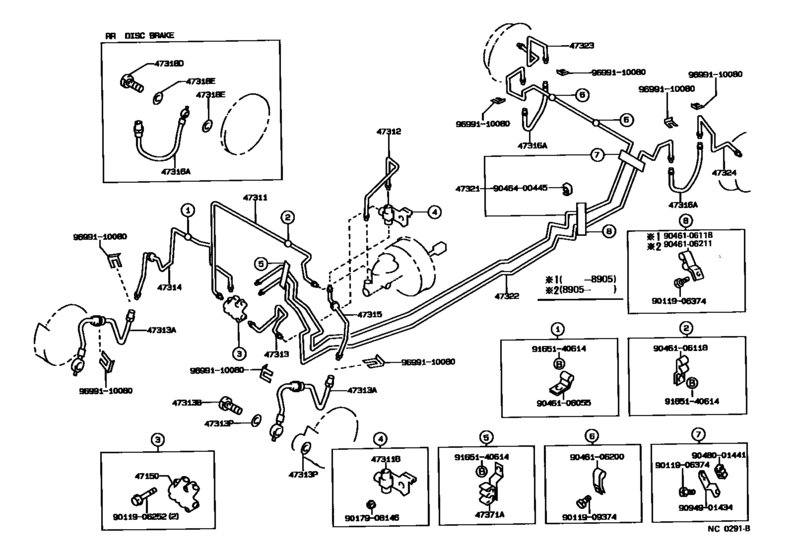

Brake Tube & Clamp ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47150
|
47150
47150-12070 Valve Assy, Proportioning[08.1987 - 08.1989] AE92..EFI |
47150-12070 |
US $108.33 |
||
|
47311
|
47311
47311-12390 Tube, Front Brake, No.1FRONT BRAKE, NO.1 [08.1987 - 06.1991] AE92 |
47311-12390 |
US $13.10 |
||
|
47311B
|
47311B
90413-10159
Way, No.1(For Front Brake Tube)
[08.1987 - 06.1991] AE92..EFI |
90413-10159 |
— | ||
|
47312
|
47312
47312-12260 Tube, Front Brake, No.2FRONT BRAKE, NO.2 [08.1987 - 10.1987] AE92..EFI |
47312-12260 |
US $6.41 |
||
|
47313
|
47313
47313-12190 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [08.1987 - 06.1991] AE92 |
47313-12190 |
US $7.86 |
||
|
47313A
|
47313A
90947-02532 Hose, Flexible, No.1(For Front)[08.1987 - 06.1991] AE92 |
90947-02532 |
US $29.81 |
||
|
47313B
|
47313B
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[08.1987 - 06.1991] AE92 |
90401-10015 |
from US $2.48 |
||
|
47313P
|
47313P
90430-10074 Gasket(For Oil Pressure Regulator)[08.1987 - 06.1991] AE92 |
90430-10074 |
from US $0.78 |
||
|
47314
|
47314
47314-12270 Tube, Front Brake, No.4FRONT BRAKE, NO.4 [08.1987 - 06.1991] AE92 |
47314-12270 |
US $14.71 |
||
|
47315
|
47315
47315-12410 Tube, Front Brake, No.5FRONT BRAKE, NO.5 [08.1987 - 08.1989] AE92 |
47315-12410 |
US $10.77 |
||
|
47315
|
47315
47315-12440
Tube, Front Brake, No.5
[08.1989 - 06.1991] AE92 |
47315-12440 |
— | ||
|
47316A
|
47316A
90947-02541
Hose, Flexible(For Rear Brake Tube)
[08.1987 - 06.1991] AE92..GTS |
90947-02541 |
— | ||
|
47318D
|
47318D
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[08.1987 - 06.1991] AE92..GTS |
90401-10015 |
from US $2.48 |
||
|
47318E
|
47318E
90430-10074 Gasket(For Oil Pressure Regulator)[08.1987 - 06.1991] AE92..GTS |
90430-10074 |
from US $0.78 |
||
|
47321
|
47321
47321-12050 Tube, Rear Brake, No.1REAR BRAKE, NO.1 [08.1987 - 06.1991] AE92 |
47321-12050 |
US $56.35 |
||
|
47322
|
47322
47322-12200 Tube, Rear Brake, No.2REAR BRAKE, NO.2 [08.1987 - 06.1991] AE92 |
47322-12200 |
US $43.68 |
||
|
47371A
|
47371A
47371-12010 Clamp, Brake Tube, No.1BRAKE TUBE, NO.1 [08.1987 - 06.1991] AE92 |
47371-12010 |
US $5.82 |
||
|
9011906252
|
9011906252
90119-06252 New Genuine Part |
90119-06252 |
US $1.22 |
||
|
9011906374
|
9011906374
90119-06374
New Genuine Part
|
90119-06374 |
— | ||
| replacement | |||||
|
9011906374
|
9011906374
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $0.69 |
||
|
9011909374
|
9011909374
90119-09374
New Genuine Part
|
90119-09374 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut (For Transmission Control Cable)
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut (For Front Wiper Arm Setting) |
90179-08204 |
from US $0.99 |
||
|
9046106055
|
9046106055
90461-06055 Clamp, Brake Tube, No.1 |
90461-06055 |
US $2.20 |
||
|
9046106118
|
9046106118
90461-06118 New Genuine Part |
90461-06118 |
US $4.22 |
||
|
9046106200
|
9046106200
90461-06200
New Genuine Part
|
90461-06200 |
— | ||
|
9046106211
|
9046106211
90461-06211 New Genuine Part |
90461-06211 |
US $3.49 |
||
|
9046400445
|
9046400445
90464-00445 New Genuine Part |
90464-00445 |
US $4.80 |
||
|
9048001441
|
9048001441
90480-01441 GROMMET |
90480-01441 |
US $2.48 |
||
|
9094901434
|
9094901434
90949-01434 New Genuine Part |
90949-01434 |
US $3.79 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.74 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.12 |
||
