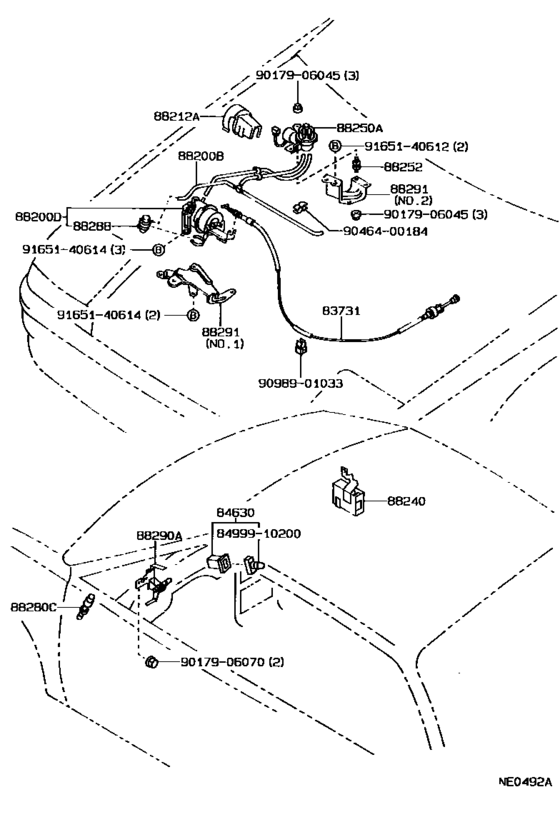

Cruise Control (Auto Drive) ([08.1987 - 08.1989] (8708-8908)EFI) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83731
|
83731
83731-12030 Cable, Cruise ControlCRUISE CONTROL [08.1987 - 06.1991] AE92..EFI |
83731-12030 |
US $84.45 |
||
|
84630
|
84630
84630-12050 Switch Assy, Cruise Control MainCRUISE CONTROL MAIN [08.1987 - 08.1989] AE92 |
84630-12050 |
US $67.56 |
||
|
84630
|
84630
84630-12120 Switch Assy, Cruise Control MainCRUISE CONTROL MAIN [08.1989 - 08.1990] AE92..CND |
84630-12120 |
US $57.80 |
||
| replacement | |||||
|
84630
|
84630
84630-12050 Switch Assy, Cruise Control MainCRUISE CONTROL MAIN [08.1989 - 08.1990] AE92..CND |
84630-12050 |
US $67.56 |
||
|
88200B
|
88200B
88283-12100 Hose, Cruise Control VacuumCRUISE CONTROL VACUUM [08.1987 - 06.1991] AE92..EFI |
88283-12100 |
US $18.78 |
||
|
88200D
|
88200D
88200-12070
Actuator Assy, Cruise Control
[08.1987 - 04.1988] AE92..EFI |
88200-12070 |
— | ||
| replacement | |||||
|
88200D
|
88200D
88200-12071 Actuator Assy, Cruise ControlCRUISE CONTROL [08.1987 - 04.1988] AE92..EFI |
88200-12071 |
US $720.72 |
||
|
88200D
|
88200D
88200-12071 Actuator Assy, Cruise ControlCRUISE CONTROL [04.1988 - 06.1991] AE92..EFI |
88200-12071 |
US $720.72 |
||
|
88212A
|
88212A
88212-12070 Cover, Cruise Control Actuator[08.1987 - 06.1991] AE92 |
88212-12070 |
US $15.58 |
||
|
88240
|
88240
88240-12150 Computer Assy, Cruise ControlCRUISE CONTROL [08.1987 - 06.1991] AE92 |
88240-12150 |
US $757.12 |
||
|
88250A
|
88250A
88251-12090 Pump Assy, Cruise ControlCRUISE CONTROL [08.1987 - 06.1991] AE92..EFI |
88251-12090 |
US $464.46 |
||
|
88252
|
88252
88252-14110 Cushion, Vacuum Pump[08.1987 - 06.1991] AE92..EFI |
88252-14110 |
US $3.20 |
||
| replacement | |||||
|
88252
|
88252
88252-26010 Cushion, Vacuum Pump[08.1987 - 06.1991] AE92..EFI |
88252-26010 |
US $3.06 |
||
|
88280C
|
88280C
88280-12030 Switch Assy, Clutch[08.1989 - 06.1991] AE92..5F |
88280-12030 |
US $30.43 |
||
|
88288
|
88288
88288-12010 Switch, Vacuum Speed Control[08.1987 - 06.1991] AE92 |
88288-12010 |
US $37.42 |
||
|
88290A
|
88290A
88290-12020 Bellcrank Assy, Cruise ControlCRUISE CONTROL [08.1987 - 06.1991] AE92 |
88290-12020 |
US $56.93 |
||
|
88291
|
88291
88291-12080 Bracket, Cruise Control(Auto Drive), No.1[08.1987 - 08.1989] AE92..EFI NO.1 |
88291-12080 |
US $18.05 |
||
|
88291
|
88291
88291-12100
Bracket, Cruise Control(Auto Drive), No.1
[08.1987 - 08.1989] AE92..EFI NO.2 |
88291-12100 |
— | ||
|
8499910200
|
8499910200
84999-10200 Bulb(For Cruise Control Switch) |
84999-10200 |
US $5.10 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
US $1.51 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9046400184
|
9046400184
90464-00184 Clamp, Vacuum Tube |
90464-00184 |
US $4.40 |
||
|
9098901033
|
9098901033
90989-01033 New Genuine Part |
90989-01033 |
US $2.77 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.83 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.74 |
||
