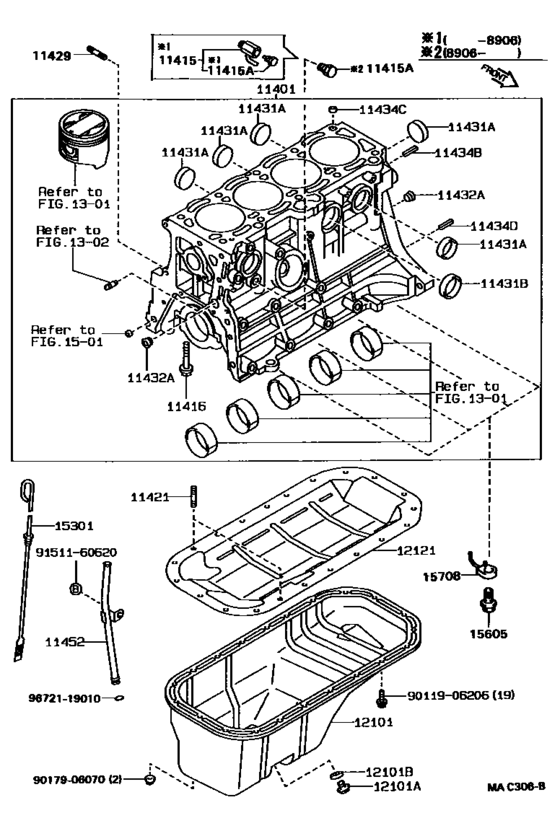

Cylinder Block ([08.1987 - ] (8708- )4AGE) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-19425 Block Sub-Assy, Cylinder[08.1987 - 08.1989] 4AGE..AE92 |
11401-19425 |
US $2,446.08 |
||
| replacement | |||||
|
11401
|
11401
11401-19426 Block Sub-Assy, Cylinder[08.1987 - 08.1989] 4AGE..AE92 |
11401-19426 |
US $2,416.96 |
||
|
11401
|
11401
11401-19475 Block Sub-Assy, Cylinder[08.1989 - 01.1991] 4AGE..AE92 |
11401-19475 |
US $2,431.52 |
||
| replacement | |||||
|
11401
|
11401
11401-19476 Block Sub-Assy, Cylinder[08.1989 - 01.1991] 4AGE..AE92 |
11401-19476 |
US $2,387.84 |
||
|
11401
|
11401
11401-19476 Block Sub-Assy, Cylinder[01.1991 - 06.1991] 4AGE..AE92 |
11401-19476 |
US $2,387.84 |
||
|
11415
|
11415
90910-09088
Cock Sub-Assy, Water Drain(For Cylinder Block)
[08.1987 - 03.1988] 4A#..AE92 |
90910-09088 |
— | ||
| replacement | |||||
|
11415
|
11415
90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.1987 - 03.1988] 4A#..AE92 |
90345-52003 |
from US $2.49 |
||
|
11415A
|
11415A
90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)[02.1990 - 05.1990] 4AGE..AE92 |
90345-52003 |
from US $2.49 |
||
|
11415A
|
11415A
90345-52013 Cock Sub-Assy, Water Drain(For Cylinder Block)[06.1989 - 08.1989] 4A#..AE92 |
90345-52013 |
US $5.39 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[08.1987 - 03.1988] 4A#..AE92 |
90910-09087 |
US $2.89 |
||
|
11416
|
11416
90105-10007 Bolt(For Crankshaft Bearing Cap Set)[08.1987 - 06.1991] 4AF#,4AGE..AE92 |
90105-10007 |
US $4.82 |
||
|
11421
|
11421
90116-06022 Bolt, Stud(For Valve Push Rod Cover)[08.1987 - 06.1991] 4AF#,4AGE..AE92 |
90116-06022 |
US $1.65 |
||
|
11429
|
11429
90116-08170 Bolt, Stud(For Alternator Bracket)[08.1987 - 06.1991] 4AGE..AE92 |
90116-08170 |
US $2.18 |
||
|
11431A
|
11431A
96411-43500 Plug, Tight, No.1[08.1987 - 06.1991] 4AF#,4AGE..AE92 |
96411-43500 |
from US $3.30 |
||
|
11431B
|
11431B
96411-44000 Plug, Tight, No.1[08.1987 - 06.1991] 4AF#,4AGE..AE92 |
96411-44000 |
from US $3.53 |
||
|
11432A
|
11432A
90344-53008 Plug, W/head Taper Screw, No.2[08.1987 - 06.1991] 4AF#,4AGE..AE92 |
90344-53008 |
US $1.38 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[08.1987 - 06.1991] 4AF#,4AGE..AE92 L=22,OD=10 |
90250-10113 |
from US $0.93 |
||
|
11434C
|
11434C
90253-13017 Pin, Ring W/head[08.1987 - 06.1991] 4AF#,4AGE..AE92 L=12,OD=13 |
90253-13017 |
from US $1.27 |
||
|
11434D
|
11434D
90250-06003 Pin, Straight[08.1987 - 06.1991] 4AF#,4AGE..AE92 L=14,OD=6 |
90250-06003 |
from US $0.95 |
||
|
11452
|
11452
11452-16010 Guide, Oil Level Gage[08.1987 - 06.1989] 4AGE..AE92 |
11452-16010 |
US $15.58 |
||
| replacement | |||||
|
11452
|
11452
11452-16030
Guide, Oil Level Gage
[08.1987 - 06.1989] 4AGE..AE92 |
11452-16030 |
— | ||
|
11452
|
11452
11452-16030
Guide, Oil Level Gage
[06.1989 - 06.1991] 4AGE..AE92 |
11452-16030 |
— | ||
|
12101
|
12101
12101-16060
Pan Sub-Assy, Oil
[08.1987 - 05.1989] 4AGE..AE92 |
12101-16060 |
— | ||
|
12101
|
12101
12101-16090 Pan Sub-Assy, Oil[05.1989 - 11.1989] 4AGE..AE92 |
12101-16090 |
US $171.81 |
||
| replacement | |||||
|
12101
|
12101
12101-16060
Pan Sub-Assy, Oil
[05.1989 - 11.1989] 4AGE..AE92 |
12101-16060 |
— | ||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[08.1987 - 12.1988] 4A#..AE92 |
90341-12012 |
from US $1.93 |
||
|
12101A
|
12101A
90341-12026
Plug, Drain
[12.1988 - 08.1990] 4AF#,4AGE..AE92 |
90341-12026 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[12.1988 - 08.1990] 4AF#,4AGE..AE92 |
90341-12012 |
from US $1.93 |
||
|
12101B
|
12101B
90430-12019
Gasket(For Oil Pan Drain Plug)
[08.1987 - 04.1990] 4AF#,4AGE..AE92 |
90430-12019 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12028 Gasket (For Drain Plug)[08.1987 - 04.1990] 4AF#,4AGE..AE92 |
90430-12028 |
from US $0.99 |
||
|
12101B
|
12101B
90430-12027
Gasket(For Oil Pan Drain Plug)
[05.1990 - 06.1991] 4A#..AE92 |
90430-12027 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[05.1990 - 06.1991] 4A#..AE92 |
90430-12031 |
from US $0.78 |
||
|
12121
|
12121
12122-16011 Plate, Oil Pan Baffle, No.1[08.1987 - 06.1991] 4AGE..AE92 |
12122-16011 |
US $46.82 |
||
|
15301
|
15301
15301-16040
Gage Sub-Assy, Oil Level
[08.1987 - 11.1987] 4AGE..AE92 |
15301-16040 |
— | ||
| replacement | |||||
|
15301
|
15301
15301-16060
Gage Sub-Assy, Oil Level
[08.1987 - 11.1987] 4AGE..AE92 |
15301-16060 |
— | ||
|
15301
|
15301
15301-16041 Gage Sub-Assy, Oil Level[11.1987 - 05.1989] 4AGE..AE92 |
15301-16041 |
US $13.69 |
||
| replacement | |||||
|
15301
|
15301
15301-16060
Gage Sub-Assy, Oil Level
[11.1987 - 05.1989] 4AGE..AE92 |
15301-16060 |
— | ||
|
15301
|
15301
15301-16060
Gage Sub-Assy, Oil Level
[05.1989 - 06.1991] 4AGE..AE92 |
15301-16060 |
— | ||
|
15605
|
15605
15703-16010 Valve Sub-Assy, Oil Check[08.1989 - 06.1991] 4AGE..AE92 |
15703-16010 |
US $19.18 |
||
|
15708
|
15708
15708-16010 Nozzle Sub-Assy, Oil, No.1[08.1989 - 06.1991] 4AGE..AE92 NO.1,NO.2,NO.4 |
15708-16010 |
US $19.18 |
||
|
15708
|
15708
15708-16020 Nozzle Sub-Assy, Oil, No.1[08.1989 - 06.1991] 4AGE..AE92 NO.3 |
15708-16020 |
US $20.97 |
||
|
9011906206
|
9011906206
90119-06206 New Genuine Part |
90119-06206 |
US $1.79 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9151160620
|
9151160620
91511-60620
Bolt(For Clutch Release Bearing Hub Retainer)
|
91511-60620 |
— | ||
| replacement | |||||
|
9151160620
|
9151160620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.68 |
||
|
9672119010
|
9672119010
96721-19010 Ring, O(For Oil Level Gage Guide) |
96721-19010 |
from US $1.52 |
||
