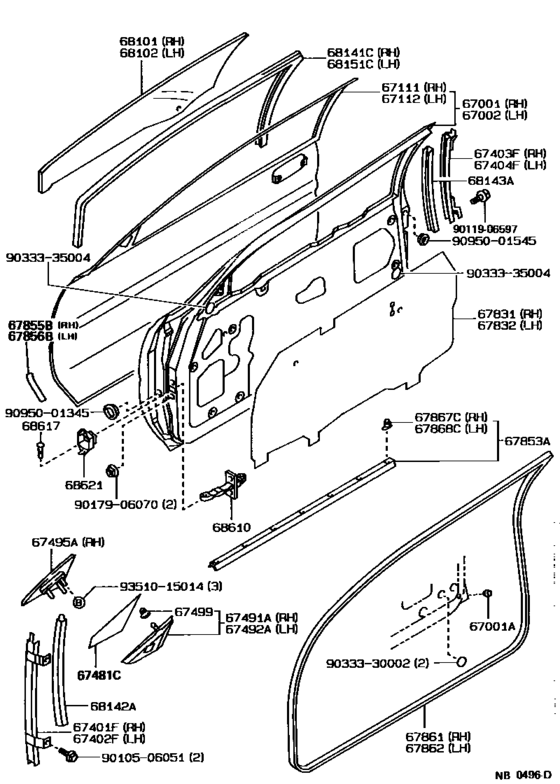

Front Door Panel & Glass ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-1A340
Panel Sub-Assy, Front Door, Rh
[01.1990 - 06.1991] AE92..CND |
67001-1A340 |
— | ||
|
67001
|
67001
67001-1A370
Panel Sub-Assy, Front Door, Rh
[08.1987 - 08.1989] AE92 |
67001-1A370 |
— | ||
| replacement | |||||
|
67001
|
67001
67001-1A340
Panel Sub-Assy, Front Door, Rh
[08.1987 - 08.1989] AE92 |
67001-1A340 |
— | ||
|
67001A
|
67001A
90541-09130 Cushion(For Luggage Compartment Door Panel)[08.1987 - 06.1991] AE92 |
90541-09130 |
US $1.49 |
||
|
67002
|
67002
67002-1A320
Panel Sub-Assy, Front Door, Lh
[11.1989 - 06.1991] AE92..CND |
67002-1A320 |
— | ||
|
67002
|
67002
67002-1A350
Panel Sub-Assy, Front Door, Lh
[08.1987 - 08.1989] AE92 |
67002-1A350 |
— | ||
| replacement | |||||
|
67002
|
67002
67002-1A320
Panel Sub-Assy, Front Door, Lh
[08.1987 - 08.1989] AE92 |
67002-1A320 |
— | ||
|
67111
|
67111
67111-12490
Panel, Front Door, Outer Rh
[08.1987 - 06.1991] AE92 |
67111-12490 |
— | ||
|
67112
|
67112
67112-12480
Panel, Front Door, Outer Lh
[08.1987 - 06.1991] AE92 |
67112-12480 |
— | ||
|
67401F
|
67401F
67401-12300
Frame Sub-Assy, Front Door, Front Lower Rh
[08.1987 - 06.1991] AE92 |
67401-12300 |
— | ||
|
67402F
|
67402F
67402-12320
Frame Sub-Assy, Front Door, Front Lower Lh
[08.1987 - 06.1991] AE92 |
67402-12320 |
— | ||
|
67403F
|
67403F
67403-12130 Frame Sub-Assy, Front Door, Rear Lower RhFRONT DOOR, REAR LOWER RH [08.1987 - 06.1991] AE92 |
67403-12130 |
US $39.02 |
||
|
67404F
|
67404F
67404-12130 Frame Sub-Assy, Front Door, Rear Lower LhFRONT DOOR, REAR LOWER LH [08.1987 - 06.1991] AE92 |
67404-12130 |
US $39.02 |
||
|
67481C
|
67481C
67481-12200 Seal, Front Door Front Lower FrameFRONT DOOR FRONT LOWER FRAME [08.1987 - 06.1991] AE92 |
67481-12200 |
US $4.08 |
||
|
67491A
|
67491A
67491-12210 Garnish, Front Door Lower Frame Bracket, Rh[08.1987 - 06.1991] AE92 |
67491-12210 |
US $10.48 |
||
|
67492A
|
67492A
67492-12210 Garnish, Front Door Lower Frame Bracket, Lh[08.1987 - 06.1991] AE92..DX,GTS |
67492-12210 |
US $10.48 |
||
|
67499
|
67499
67499-12030 Retainer, Front Door Lower Frame Bracket Garnish[11.1987 - 06.1991] AE92 |
67499-12030 |
US $4.66 |
||
|
67499
|
67499
67499-32010
Retainer, Front Door Lower Frame Bracket Garnish
[08.1987 - 11.1987] AE92 |
67499-32010 |
— | ||
|
67831
|
67831
67831-12440
Cover, Front Door Service Hole, Rh
[08.1987 - 07.1990] AE92 |
67831-12440 |
— | ||
| replacement | |||||
|
67831
|
67831
67831-12450
Cover, Front Door Service Hole, Rh
[08.1987 - 07.1990] AE92 |
67831-12450 |
— | ||
|
67831
|
67831
67831-12450
Cover, Front Door Service Hole, Rh
[07.1990 - 06.1991] AE92 |
67831-12450 |
— | ||
|
67832
|
67832
67831-12440
Cover, Front Door Service Hole, Rh
[08.1987 - 07.1990] AE92 |
67831-12440 |
— | ||
| replacement | |||||
|
67832
|
67832
67831-12450
Cover, Front Door Service Hole, Rh
[08.1987 - 07.1990] AE92 |
67831-12450 |
— | ||
|
67832
|
67832
67831-12450
Cover, Front Door Service Hole, Rh
[07.1990 - 06.1991] AE92 |
67831-12450 |
— | ||
|
67853A
|
67853A
67853-12030
Weatherstrip, Front Door, Outer Lower
[08.1987 - 06.1991] AE92 |
67853-12030 |
— | ||
|
67855B
|
67855B
58741-12060 Protector, Quarter Panel, Rh[08.1988 - 06.1991] AE92 |
58741-12060 |
US $11.79 |
||
|
67856B
|
67856B
58741-12060 Protector, Quarter Panel, Rh[08.1988 - 06.1991] AE92 |
58741-12060 |
US $11.79 |
||
|
67861
|
67861
67861-12650
Weatherstrip, Front Door
[08.1987 - 06.1991] AE92 |
67861-12650 |
— | ||
|
67862
|
67862
67861-12650
Weatherstrip, Front Door
[08.1987 - 06.1991] AE92 |
67861-12650 |
— | ||
|
67867C
|
67867C
67868-12020
Retainer, Front Door Weatherstrip, Rh
[08.1987 - 06.1991] AE92 |
67868-12020 |
— | ||
| replacement | |||||
|
67867C
|
67867C
67868-12050 Retainer, Rh(For Front Door No.2 Weatherstrip)[08.1987 - 06.1991] AE92 |
67868-12050 |
from US $2.61 |
||
|
67867C
|
67867C
67868-12050 Retainer, Rh(For Front Door No.2 Weatherstrip)[08.1987 - 06.1991] AE92 |
67868-12050 |
from US $2.61 |
||
|
67868C
|
67868C
67868-12020
Retainer, Front Door Weatherstrip, Rh
[08.1987 - 06.1991] AE92 |
67868-12020 |
— | ||
| replacement | |||||
|
67868C
|
67868C
67868-12050 Retainer, Rh(For Front Door No.2 Weatherstrip)[08.1987 - 06.1991] AE92 |
67868-12050 |
from US $2.61 |
||
|
67868C
|
67868C
67868-12050 Retainer, Rh(For Front Door No.2 Weatherstrip)[08.1987 - 06.1991] AE92 |
67868-12050 |
from US $2.61 |
||
|
68101
|
68101
68111-12720
Glass Sub-Assy, Front Door, Rh
[08.1987 - 06.1991] AE92 *TT,T=4.0 |
68111-12720 |
— | ||
|
68102
|
68102
68112-12720
Glass Sub-Assy, Front Door, Lh
[08.1987 - 06.1991] AE92 *TT,T=4.0 |
68112-12720 |
— | ||
|
68141C
|
68141C
68141-12370
Run, Front Door Glass, Rh
[08.1987 - 08.1989] AE92 |
68141-12370 |
— | ||
|
68142A
|
68142A
68142-12150
Run, Front Door Glass Side
[08.1987 - 06.1991] AE92 RH |
68142-12150 |
— | ||
|
68142A
|
68142A
68144-12070 Run, Front Door Glass Side[08.1987 - 06.1991] AE92 LH |
68144-12070 |
US $10.19 |
||
|
68143A
|
68143A
68143-12100 Run, Front Door Glass, No.2[08.1987 - 06.1991] AE92 RH |
68143-12100 |
US $9.76 |
||
|
68143A
|
68143A
68145-12060 Run, Front Door Glass, No.2[08.1987 - 06.1991] AE92 LH |
68145-12060 |
US $10.19 |
||
|
68151C
|
68151C
68151-12090
Run, Front Door Glass, Lh
[08.1987 - 08.1989] AE92 |
68151-12090 |
— | ||
|
68610
|
68610
68610-12060
Check Assy, Front Door
[08.1987 - 06.1991] AE92 |
68610-12060 |
— | ||
|
68617
|
68617
68617-90K00 Pin(For Front Door Check)[08.1987 - 06.1991] AE92 |
68617-90K00 |
from US $2.89 |
||
|
68621
|
68621
68621-12020
Seal, Door Check
[08.1987 - 06.1991] AE92 |
68621-12020 |
— | ||
|
9010506051
|
9010506051
90105-06051
New Genuine Part
|
90105-06051 |
— | ||
| replacement | |||||
|
9010506051
|
9010506051
90105-06168 BOLT WASHER BASED |
90105-06168 |
from US $0.72 |
||
|
9011906597
|
9011906597
90119-06597 New Genuine Part |
90119-06597 |
US $1.46 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.07 |
||
|
9033335004
|
9033335004
90333-35004 Plate, Noise Control, No.1 |
90333-35004 |
US $1.25 |
||
|
9095001345
|
9095001345
90950-01345 New Genuine Part |
90950-01345 |
US $7.17 |
||
|
9095001545
|
9095001545
90950-01545 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01545 |
US $2.62 |
||
|
9351015014
|
9351015014
93510-15014
New Genuine Part
|
93510-15014 |
— | ||
